BIAB Kettle Set - 85L
BIAB Kettle Set - 85L
- Lieferzeit: 10-15 Workdays
In stock
Couldn't load pickup availability
Artikelnummer:
SKU:BAM22065
Collapsible content

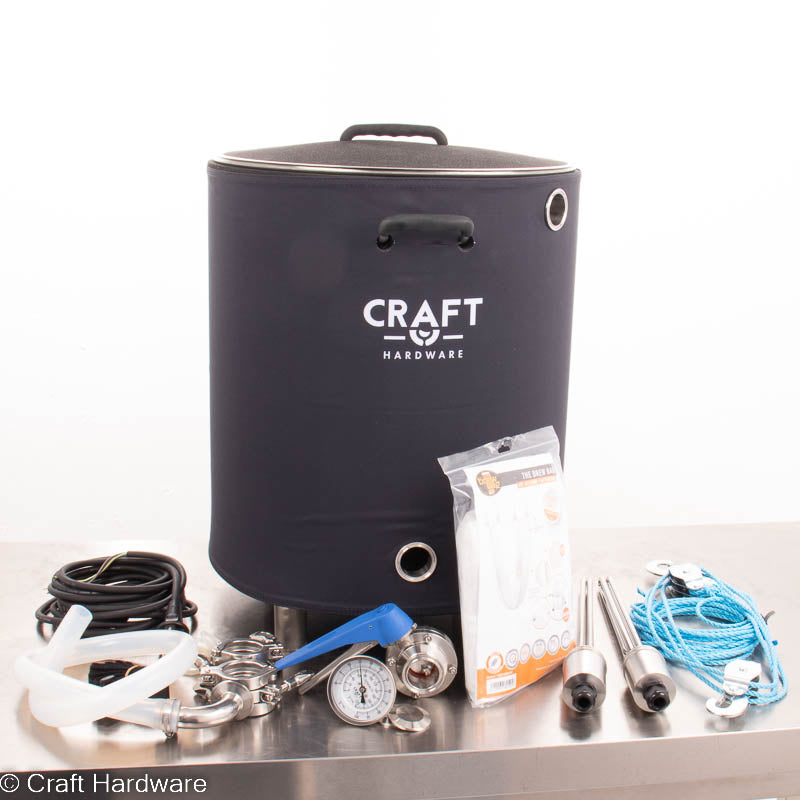

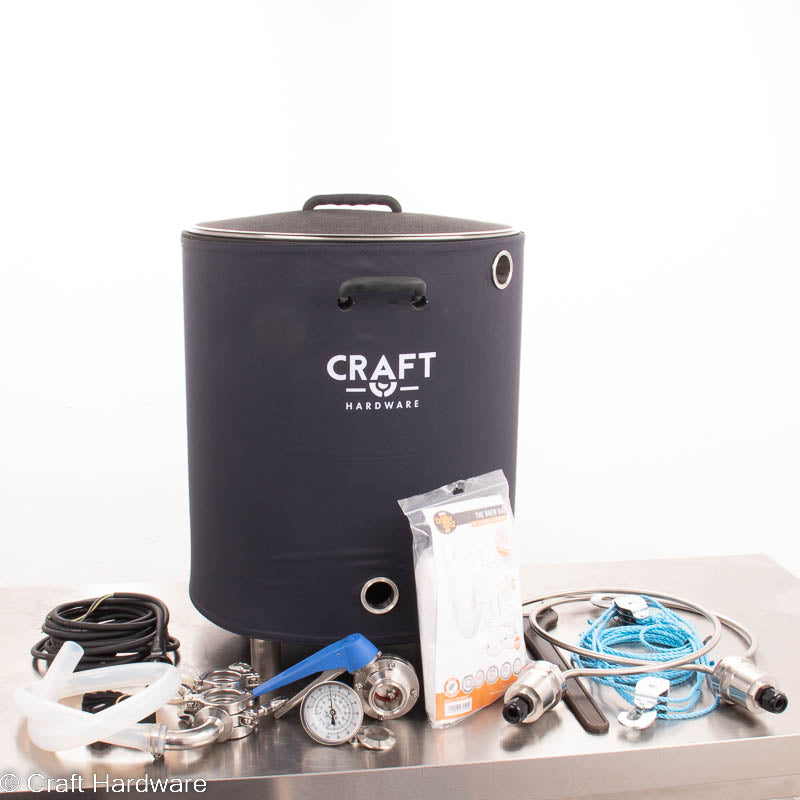

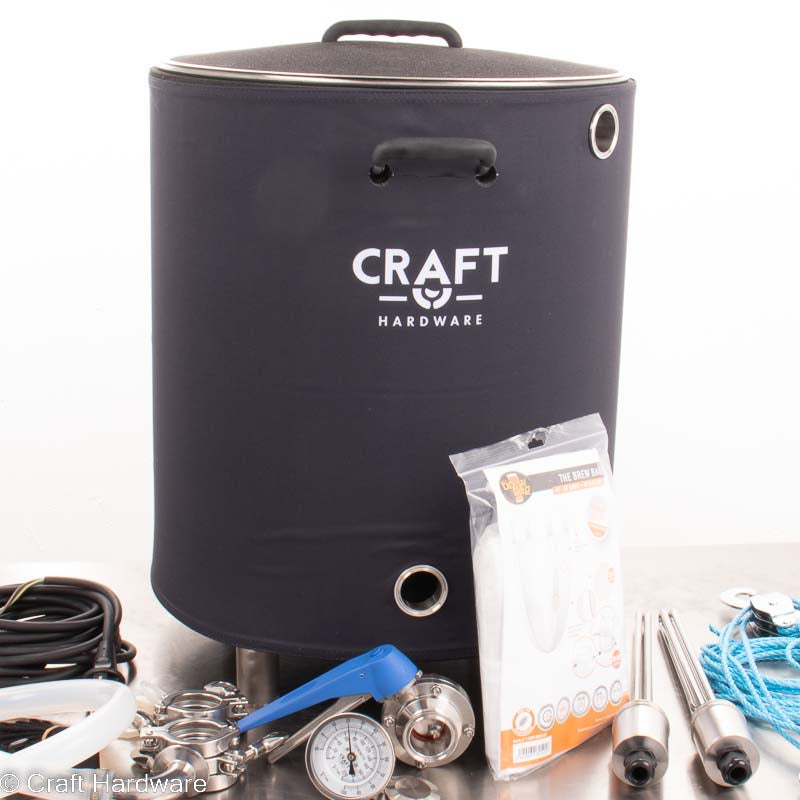

Stückliste: BIAB Kettle Set - 85L
| Qty | Image | SKU | Product |
|---|---|---|---|
| 1 |  | BKM28725 | Kettle Bottom Drain - 85L |
| 2 |  | EHK18907 | Heating Element 3,2kW Tri Clamp Version |
| 2 |  | EHK22146 | Power Cable 3m H07RN-F 3G1,5 |
| 1 |  | EMK18694 | Heavy Duty BIAB Pulley 6:1 |
| 1 |  | EMK18700 | BIAB Strap |

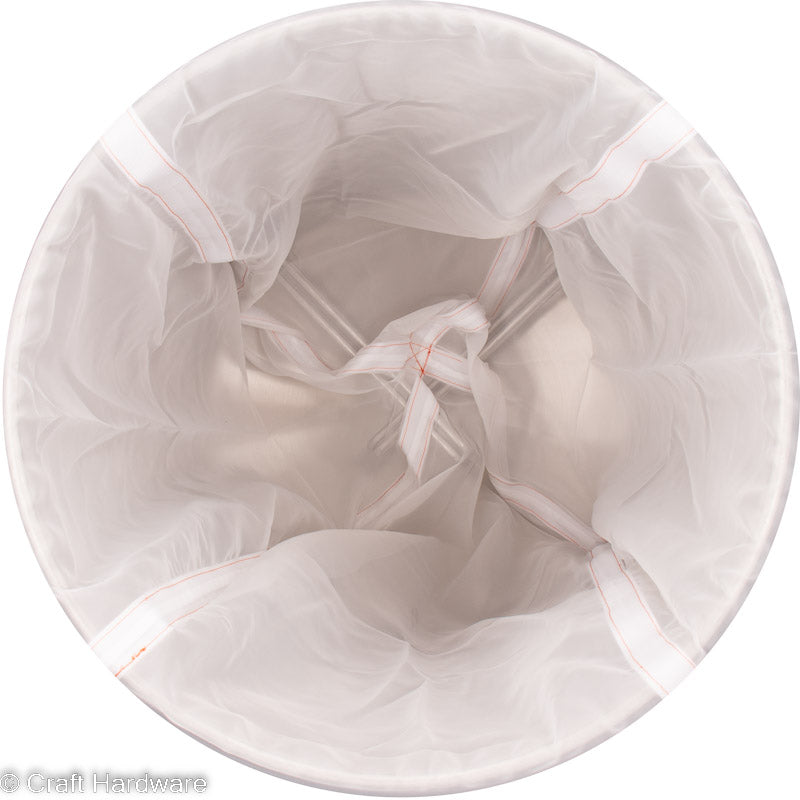

| 1 |  | EMK18702 | BIAB Brew Bag 83L/85L |
| 1 |  | EPK24714 | Hose Clamp 25-40 mm |
| 1 |  | EPK28713 | Silicone Tubing 19 x 30 mm |
| 0.5 | MMK1560 | PE-PL 29 Anthrazite Insulation Sheet 15mm | |
| 1 | MMK1640 | ||
| 1 |  | TAK05002 | Butterfly Valve DN40 Tri Clamp With Trigger Handle |
| 9 |  | TDK01720 | Silicone Gasket Tri Clamp 1.5" x DN40 |
| 6 |  | TDK01731 | Tri-Clamp 1.5" Clamp |
| 1 |  | TFK01501 | End Cap Tri-Clamp 1.5" |
| 1 |  | TFK24724 | Hose Barb 90 Elbow Tri Clamp 1" |

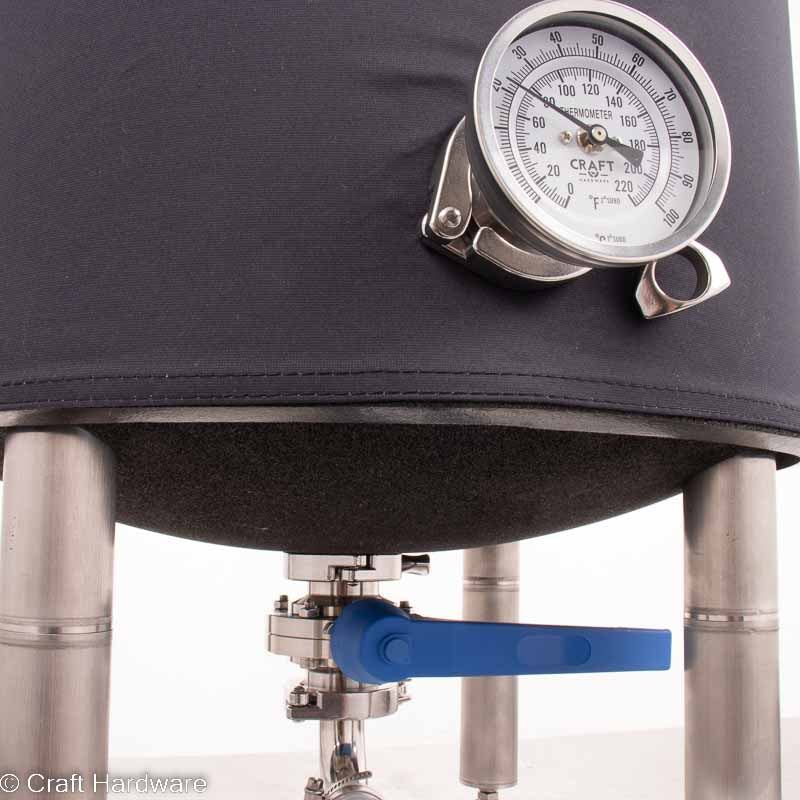

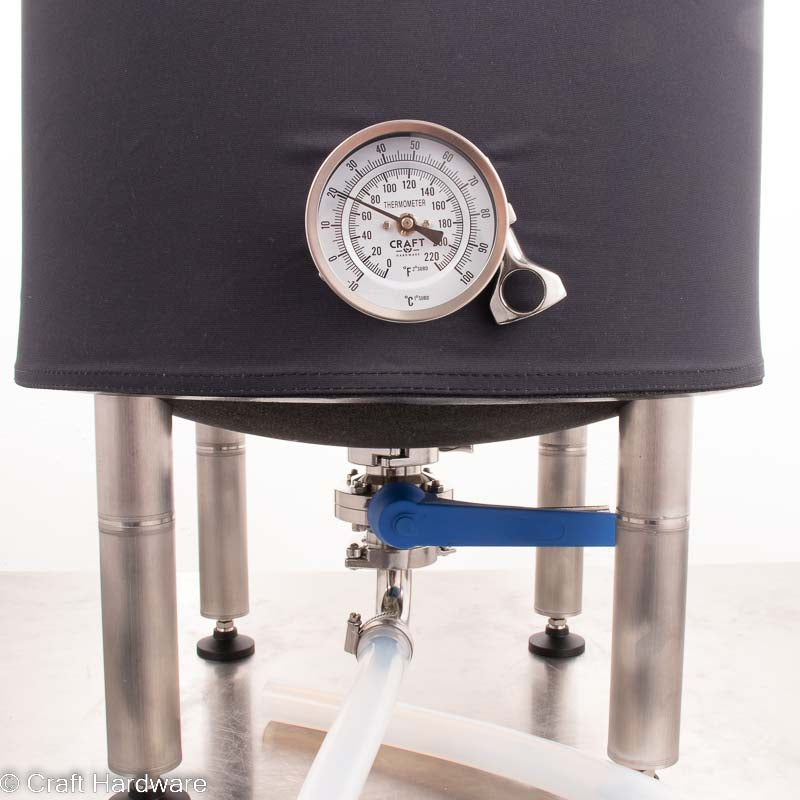

| 1 |  | TTM28852 | Thermometer, Bimetal Tri Clamp |
Produktbeschreibung
For beginners and experienced brewers alike! Get started on the right path with the Craft Hardware BIAB Solo brewing set. BIAB is an extremely cost effective way to brew great beer while keeping your system as simple as possible. Just pour in your desired boil volume, heat to mash temperature using the integrated heating element, turn off the heater and insert the brew bag and stir in your milled grain. Close the lid and wait about 60 minutes for the mash to complete (an occasional stir helps things along). Then just pull the bag out and turn the element back on to begin boiling. Add your hops per your recipe schedule, then at the end of the boil let the wort cool naturally or use your preferred chilling method to get to yeast pitching temperature. Drain to your fermenter using the included dip tube and silicone hose. Done!
System Design
This is a complete BIAB system built entirely using Tri-Clamp components. If you're just getting started, this set ensures your initial investment is money well spent. The bottom drain Kettle leaves room for expansion! You can easily upgrade to a pumped BIAB premium system or grow your system to a 2V or 3V version.
With the bottom drain kettle you can optimize your batch size and filter out your kettle hops very easily. At the end of the boil, simply turn off the heating element and put your brew bag back in the kettle, drain the wort into a container and pour it back into the kettle. Your brew bag will filter out all the hops and allow you to drain your kettle completely!
This set includes a heavy duty rope pulley (made in Germany) with 6:1 transmission ratio for maximum security and ease of use with heavy grain bags. Make sure your ceiling anchor is sufficient to hold the maximum expected weights!

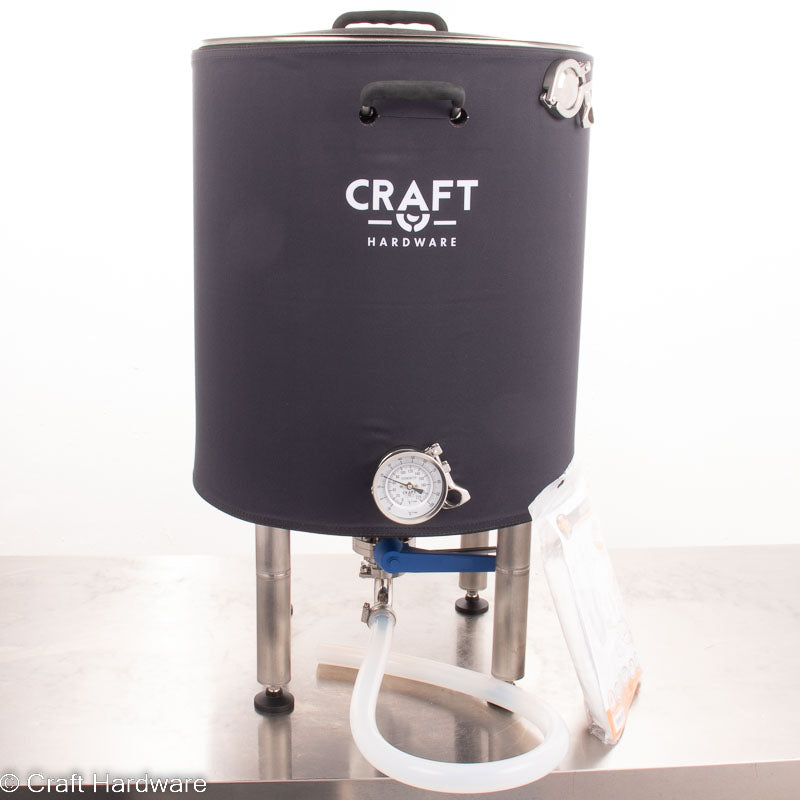

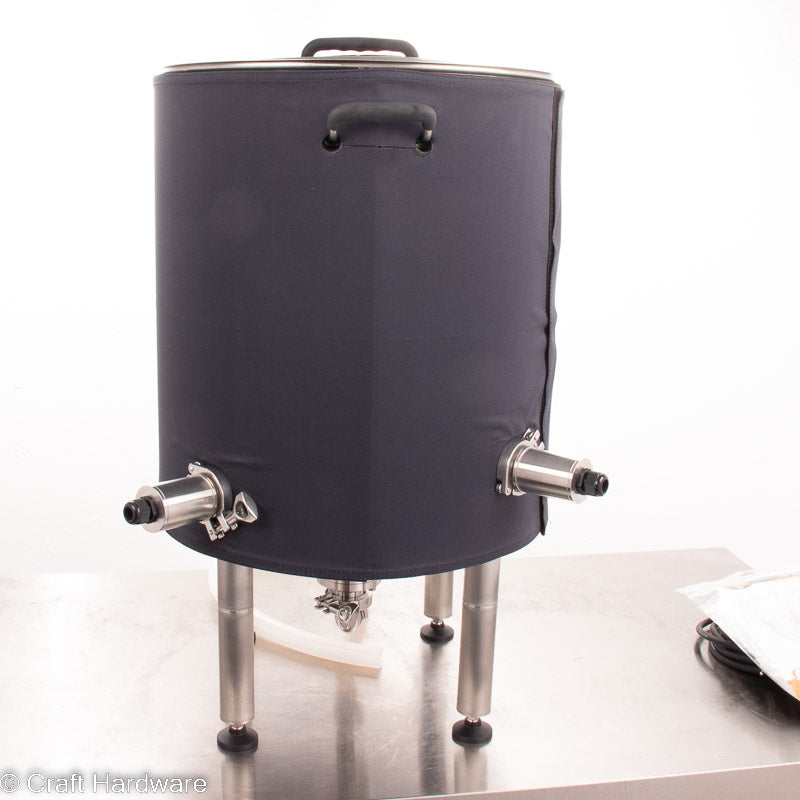

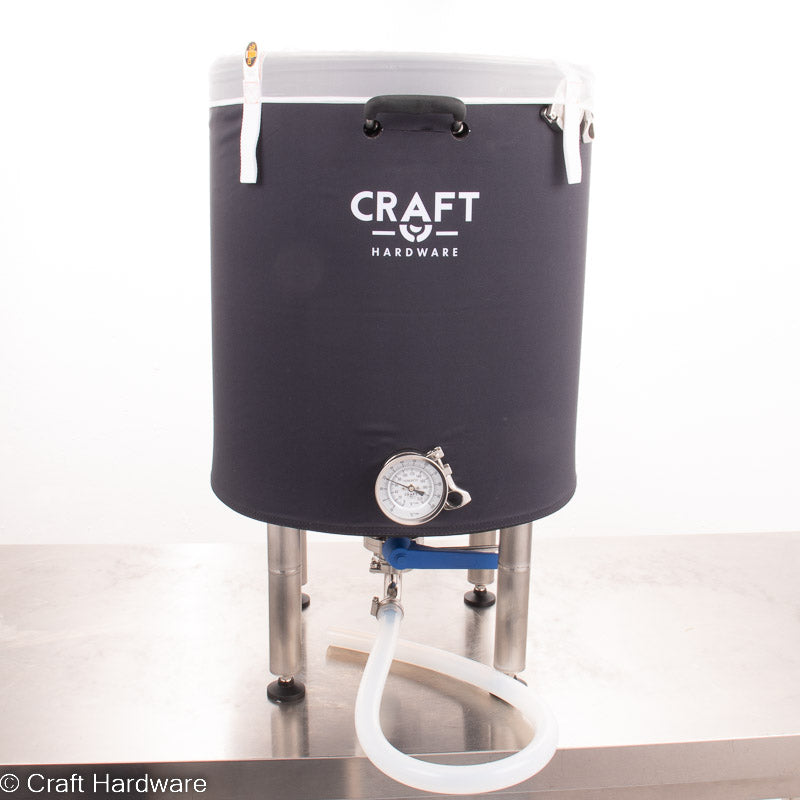

The set does not include kettle extension legs - the pictures show the 14cm legs for demonstration purposes only! You can either use the system on an open brew stand or you will need to add either the 14, 45, or 65 cm extensions legs to your order.
On request, we can supply the set with our butterfly valve with ball handle instead of lever handle, and with EPDM instead of silicone gaskets.
Batch Size
System efficiency is lower than with our Duo or Trio Systems. For German brewers, the System efficiency measured as "Sudhausausbeute" or SHA is around 52-58%. Grain capacity is limited by your ability to lift the bag out. The included pulley should not be used for grain bills larger than 8 KG!
| BIAB Solo Kettle Size | Minimum Batch Size * |
Max. Batch Size without Sparge ** | Max. Batch Size with Sparge ** | Boil Volume *** |
| 40L |
13 L |
26 L |
31 L | 16 L-34 L |
| 60L | 17 L | 39 L | 49 L | 20.5 L-53 L |
| 85L | 23 L | 57 L | 72 L | 27 L - 76 L |
| 115L | 28 L | 77 L | 99 L | 32.5 L - 104 L |
* Volume including kettle trub. The heating element is located about 6 cm below the wort level at the end of the boil. For smaller batches you will want to reduce power to the heating element, for this you will need a compatible brew controller.
** 60 minute boil time, 13P original gravity, volume including kettle trub. For higher gravity beers the maximum batch size will decrease. Remember that when using the steam condenser in the kettle wall, you will further reduce the maximum batch size.
*** includes a safety buffer of 6 cm between the wort level and the rim of the kettle. At this volume, one must be very careful to prevent boil-overs. Antifoaming agents may be required.
Notes
The heating element in this set includes a 3m connection cable with SCHUKO male plug, but does not come pre-wired to the element. Please consult a professional electrician. You must be sure to use an appropriate GFI outlet and circuit breaker sized for the load.
In addition the hardware provided with the set, you will probably want to get a hydrometer, a wort chiller, and a stirring spoon. These are most likely available wherever you buy your brewing ingredients.
