Stückliste: Tri-Clamp Heating Element 3.2 kW
Qty | Image | SKU | Product |
---|---|---|---|
1 | BKM28723 | Kettle Bottom Drain - 40L | |
1 | BZM21934 | Kettle Drilling 2 x 21 mm (HERMS Standard) | |
1 | EHK18907 | Heating Element 3,2kW Tri Clamp Version | |
1 | EHK22146 | Power Cable 3m H07RN-F 3G1,5 | |
1 | EHM19630 | HERMS Coil | |
1 | EHM21818 | Socket 32 mm For Single Flow HERMS Coil | |
1 | TAK05002 | Butterfly Valve DN40 Tri Clamp With Trigger Handle | |
4 | TDK01720 | Silicone Gasket Tri Clamp 1.5" x DN40 ID 38mm | |
4 | TDK01731 | Tri-Clamp 1.5" Clamp | |
2 | TFK19627 | Threaded Tri Clamp HERMS Adapter G1/2″ | |
1 | TFM20577 | Whirlpool Arm Short Tri-Clamp with Shaft Collar | |
1 | TFM20620 | Whirlpool Arm Extension Tube 12.5 cm x 7 cm | |
1 | TTM21506 | Thermowell Set Screw 13,5 cm Tri Clamp |
Stückliste: Ring Element 2.8 kW
Qty | Image | SKU | Product |
---|---|---|---|
1 | BKM28723 | Kettle Bottom Drain - 40L | |
1 | BZM21934 | Kettle Drilling 2 x 21 mm (HERMS Standard) | |
1 | BZM21936 | Kettle Drilling Service - 48 mm (ring heating element) | |
1 | EHK16378 | Round heating element 2.8 kW for 35 cm kettle | |
1 | EHK22146 | Power Cable 3m H07RN-F 3G1,5 | |
1 | EHM19630 | HERMS Coil | |
1 | EHM21818 | Socket 32 mm For Single Flow HERMS Coil | |
1 | TAK05002 | Butterfly Valve DN40 Tri Clamp With Trigger Handle | |
4 | TDK01720 | Silicone Gasket Tri Clamp 1.5" x DN40 ID 38mm | |
4 | TDK01731 | Tri-Clamp 1.5" Clamp | |
1 | TFK01501 | End Cap 1.5" Tri Clamp | |
2 | TFK19627 | Threaded Tri Clamp HERMS Adapter G1/2″ | |
1 | TFM20577 | Whirlpool Arm Short Tri-Clamp with Shaft Collar | |
1 | TFM20620 | Whirlpool Arm Extension Tube 12.5 cm x 7 cm | |
1 | TTM21504 | Thermowell Set Screw 5.5 cm Tri Clamp |
Produktbeschreibung

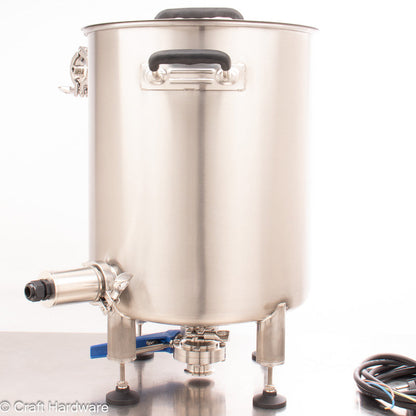

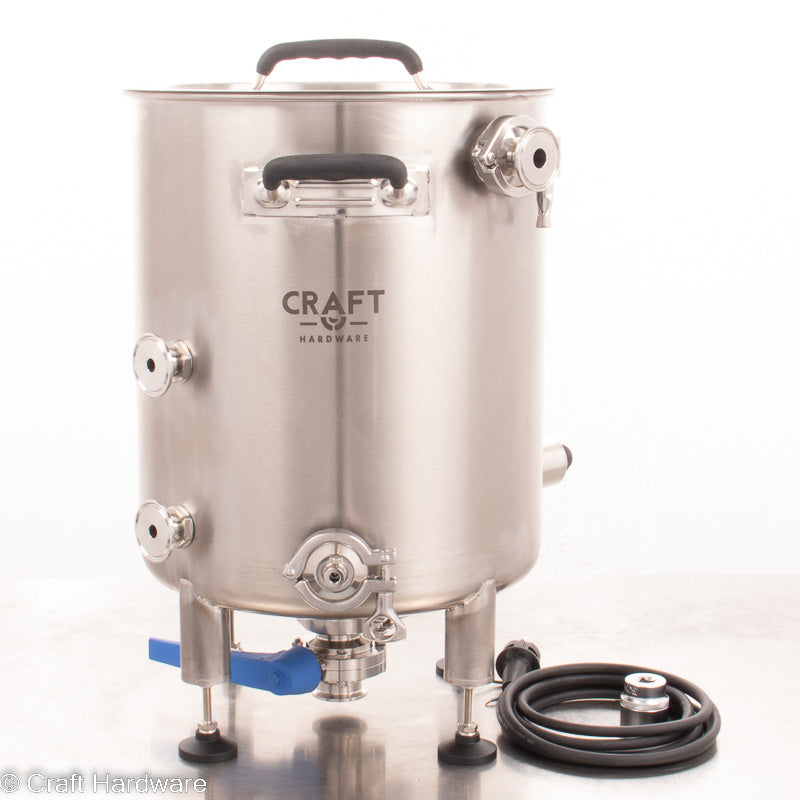

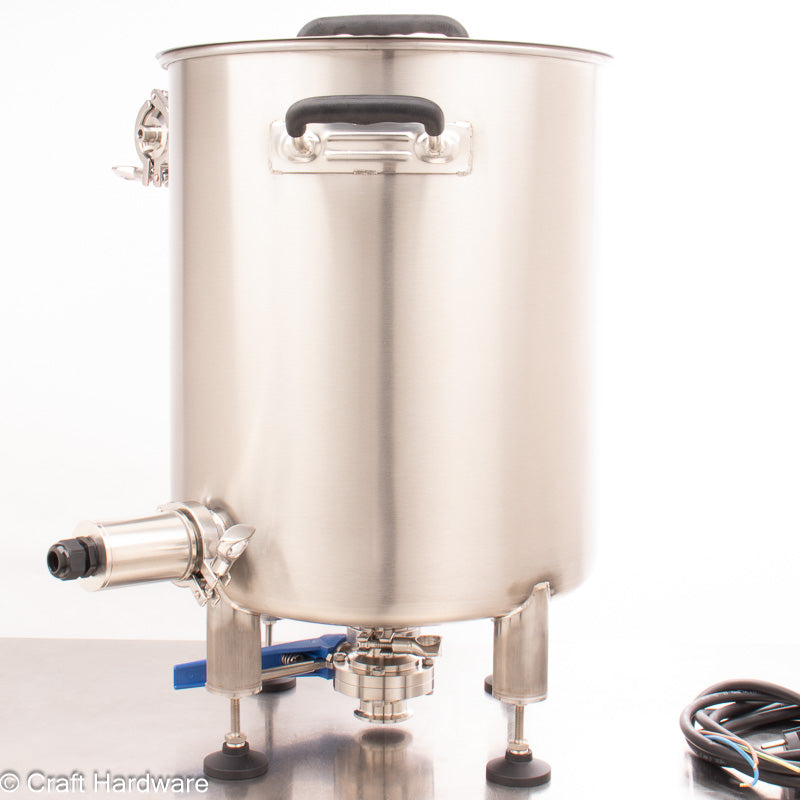

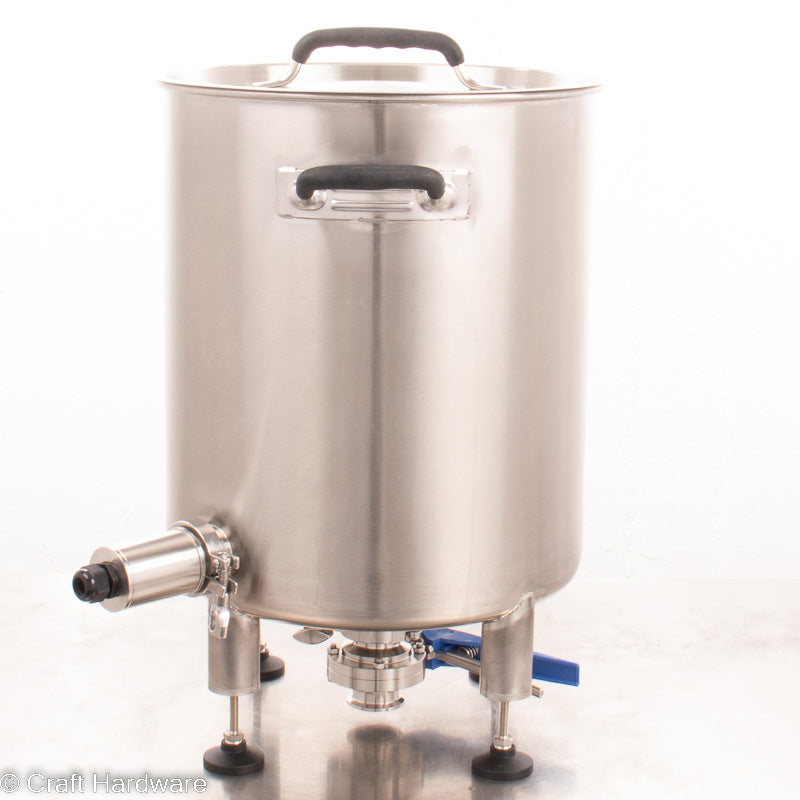

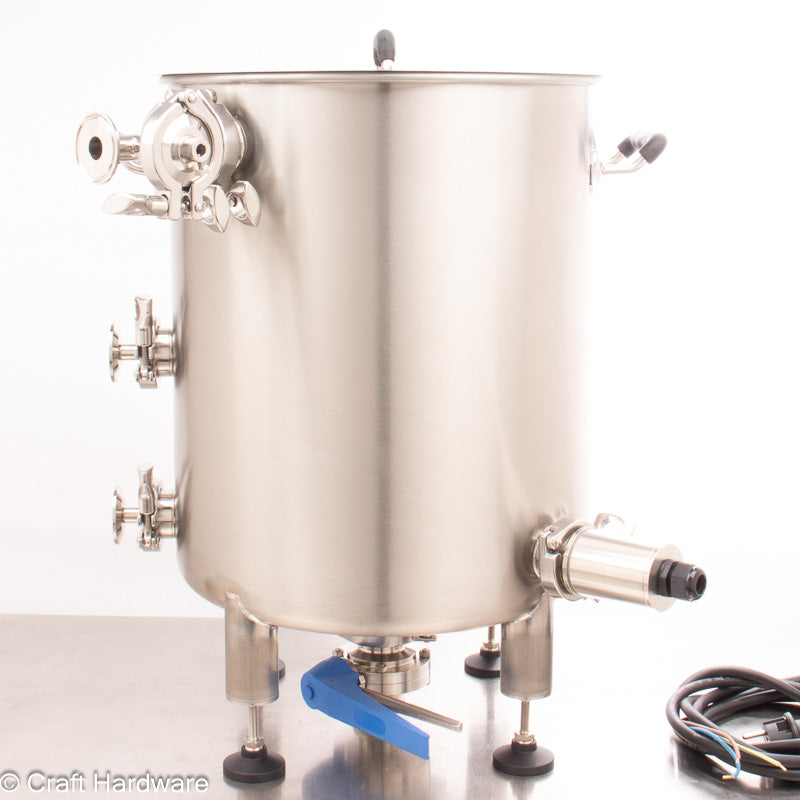

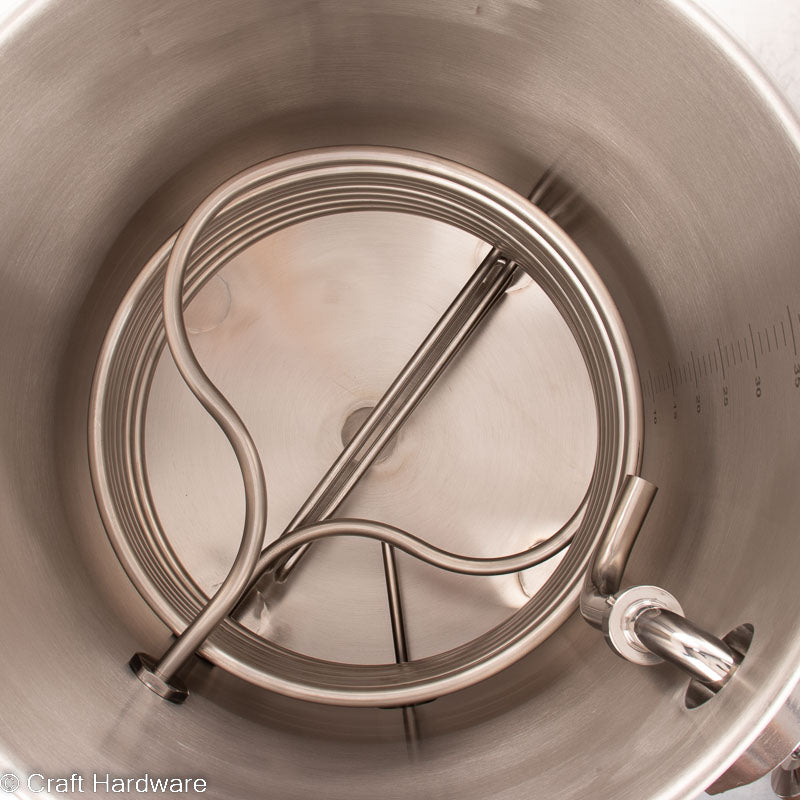

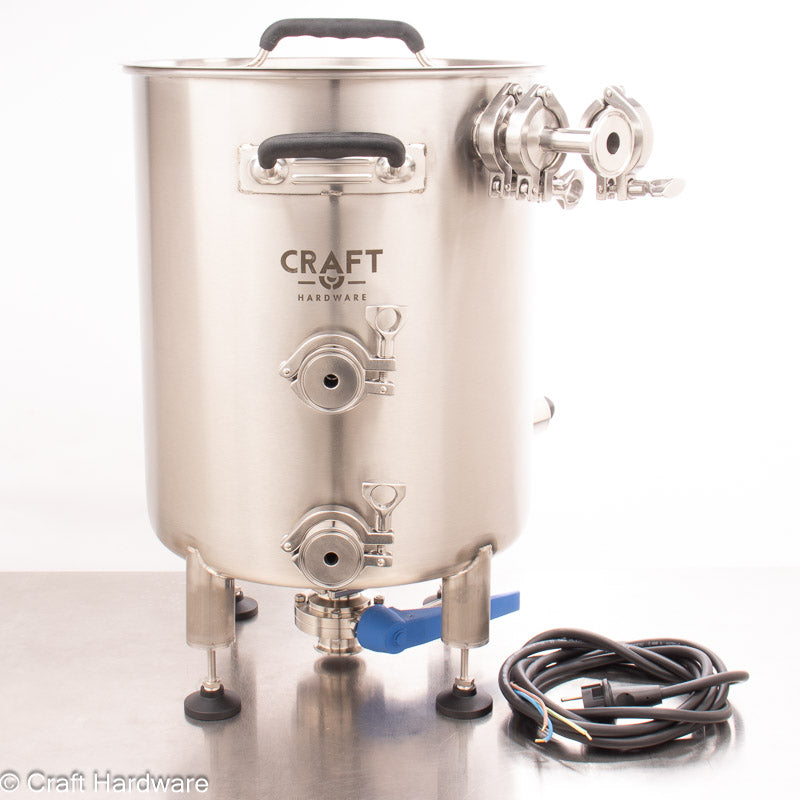

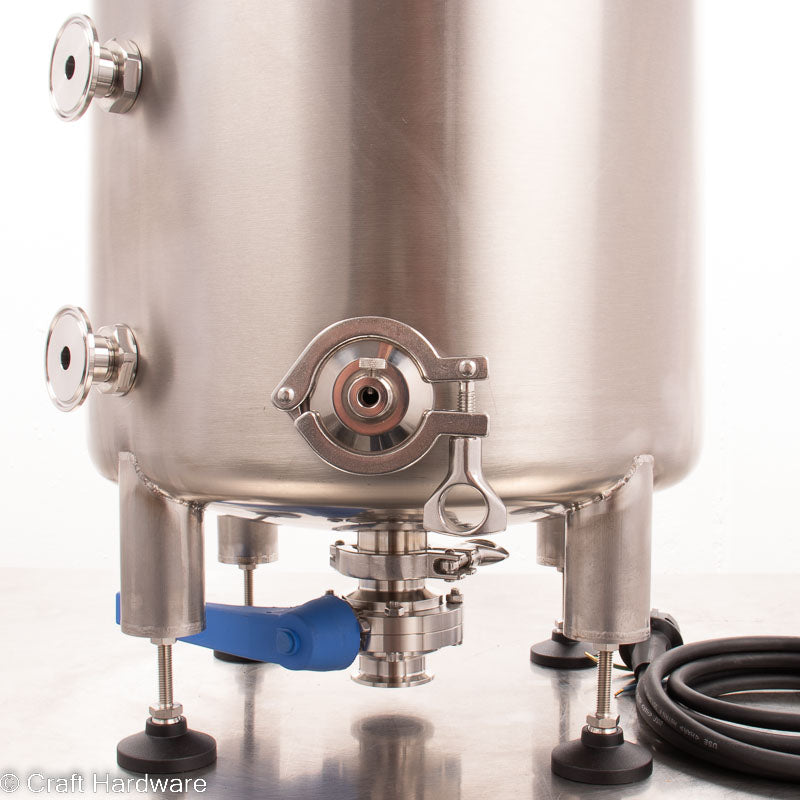

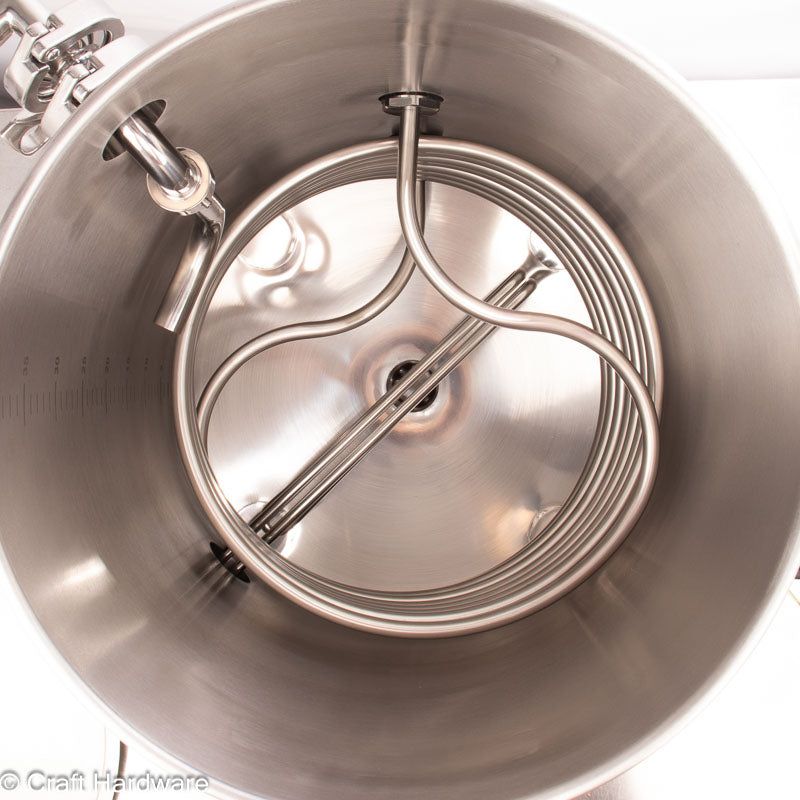

A 40L HLT (Hot Liquor Tank) with bottom drain and accessories designed for 3-kettle, indirectly heated brewing systems (HERMS). This kettle can also be used as a combined boil kettle/HLT when setting up a HERMS Duo system. During heating, the mash is recirculated by a pump through the HERMS spiral built into the HLT. By recirculation and with an appropriate controller you can maintain the temperature and program your mash schedule by switching the heating element in the HLT.

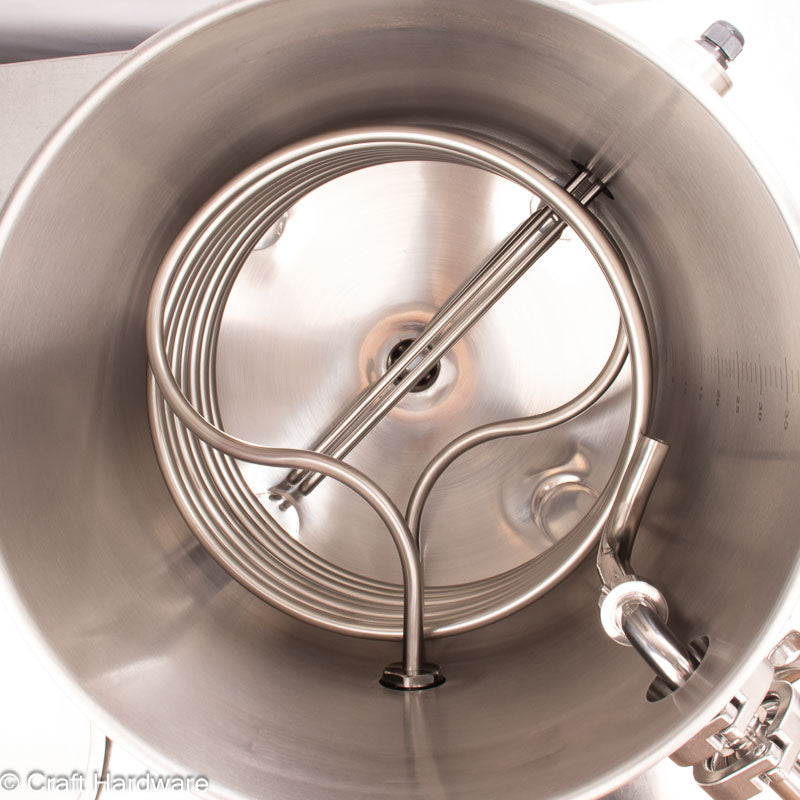

Upon request we can supply the kit with our butterfly valve with ball handle instead of lever handle, and with EPDM instead of silicone gaskets. The HERMS spiral is installed in the front left of the kettle. This is the configuration we will use for all our design examples. If you prefer the spiral on the front right or back side of the kettle, please let us know when ordering.
Due to the variety of mounting and connection options, the set is sold without some necessary components. The choice of the brewing stand will affect how you mount the pump and connect it to the system. In the store you will find everything you need to completely assemble your dream brewing system.
Here are some tips to keep in mind when setting up your new brewery:
- For a 3 kettle brewing system, you should recirculate the water in the HLT. The set includes a whirlpool arm for this purpose. The same pump is used for sparging. In a two kettle (duo) brewing system, you don't need a second pump, and the very small benefit of recirculating the HLT is not worth the extra cost, so you don't need to recirculate the water in the HLT. With a two-kettle system, you can use the whirlpool tube that comes with the system to refill the kettle during lautering.
- If using a pump for recirculation and sparging, you will need a valve after the pump outlet to control the flow rate. The Blichmann Riptide pump has an integrated outlet valve for this. For the MP-15 or other pumps, you will need to add a valve on the output side of the pump.
- Ideally, you should pump the clear, hot water through the HERMS spiral when sparging, to clean it during the sparge.
- It is always easiest to make external connections with silicone tubing and hose barbs. For 40L and 60L sizes, I recommend using 3/4" or DN15 hose barbs and fittings with 14x24 mm silicone hose. Don't forget hose clamps!
- For recirculation you need access to the bottom port. Kettle leg extensions are required for standard table tops. You can also build an open brew stand or buy one from us.
- If you purchase the kettle set with ring heating element, you will need to install the ring element in your kettle. For this you need a 55 mm wrench, which is not included in the set. It is available separately in the store.
- The heating element in this set include a 3m long connection cable with SCHUKO plug, but it is not pre-wired to the heating element. Please consult a professional electrician. You must make absolutely sure that you use a suitable RCD and a circuit breaker designed for the load!
- Temperature control is necessary. Don't try to manually switch the heating element, it will cause temperature overshooting.
- With an optional EINBREW controller you can set up to 9 mash stages and have your recipe automated by the controller. By recirculating the wort during mashing, you can achieve stable mash temperatures. For a 40L 3-kettle HERMS system you need the EINBREW 3V2P.
See the "frequently bought together" products below for some recommended additions to the set.
System Design

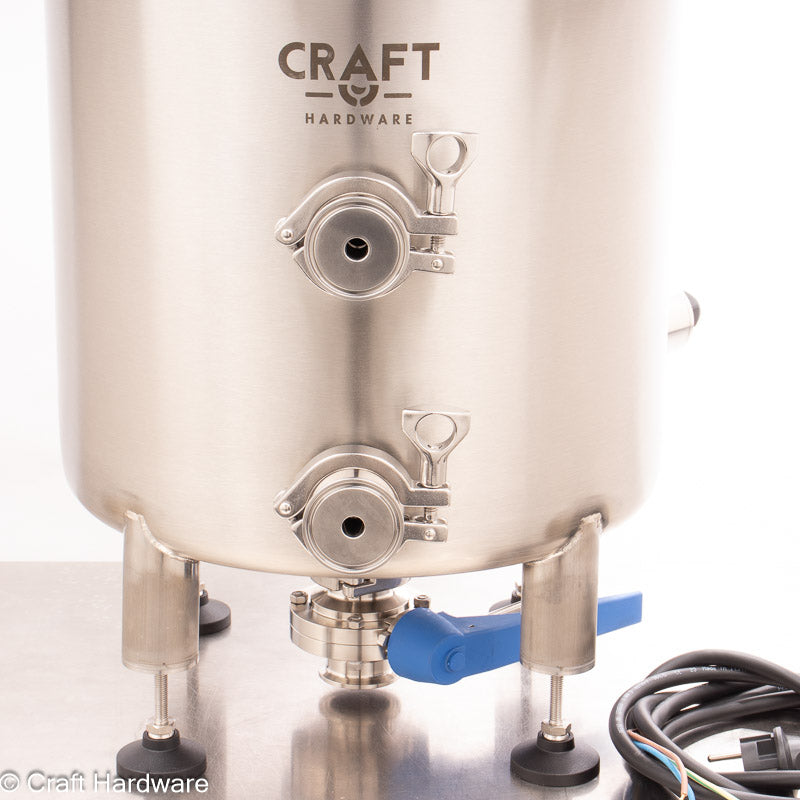

For recirculation, you need access to the lower Tri-Clamp port. If you are using a regular table as a brew stand, you can easily do this with the 14 cm leg extensions (sold separately). Please note that 80-90 cm high tables may be too high to comfortably operate the kettle. Alternatively, you can bolt the kettle directly to the floor with our 45 or 65 cm leg extensions and footplates. You can attach the pump to the legs of the kettle with a pump bracket. You can also build your own brew stand or choose a high-quality brew stand from Craft Hardware in the store.
A temperature sensor to control the HLT water temperature (not included) should be installed in a thermowell inside aTee at the inlet of the sparge arm in the mash kettle. The thermowell inside the HLT kettle is for informational temperature data only.

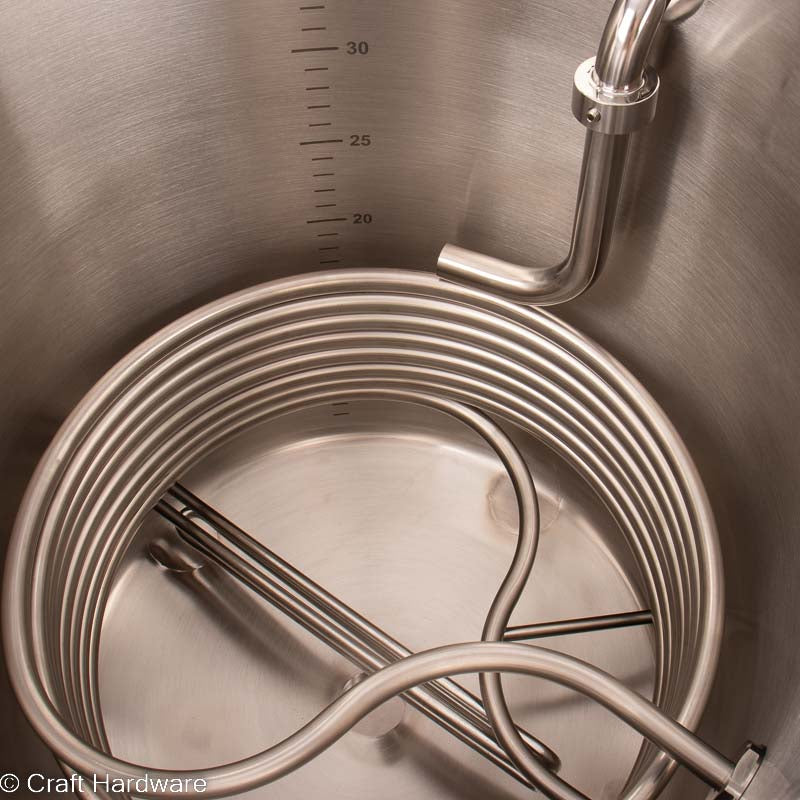

Volume level at the top of the HERMS Coil = approx. 20 L
