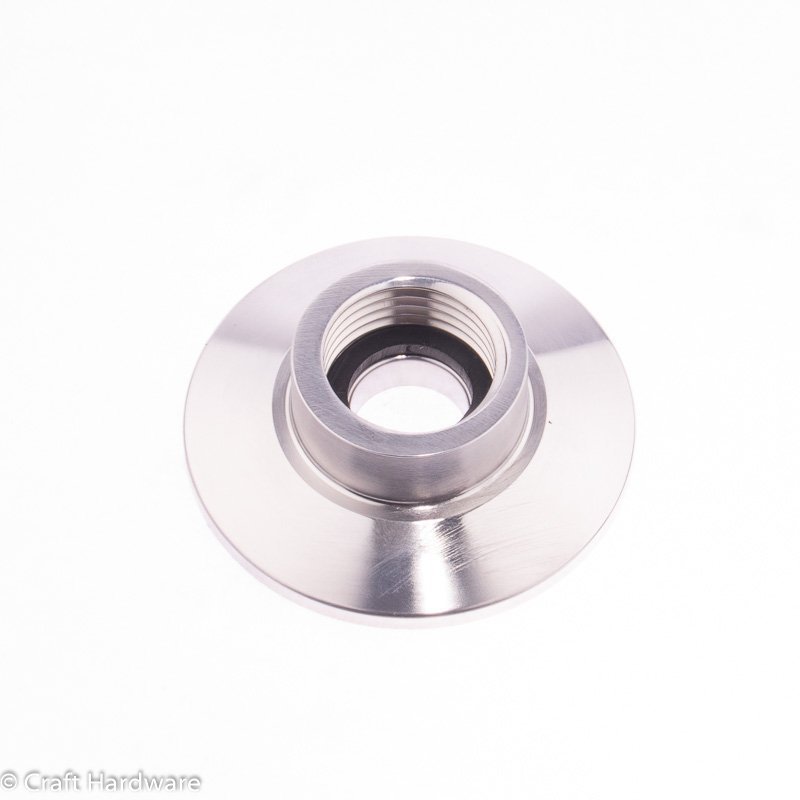

Threaded Tri-Clamp Pump Adapter 1/2"

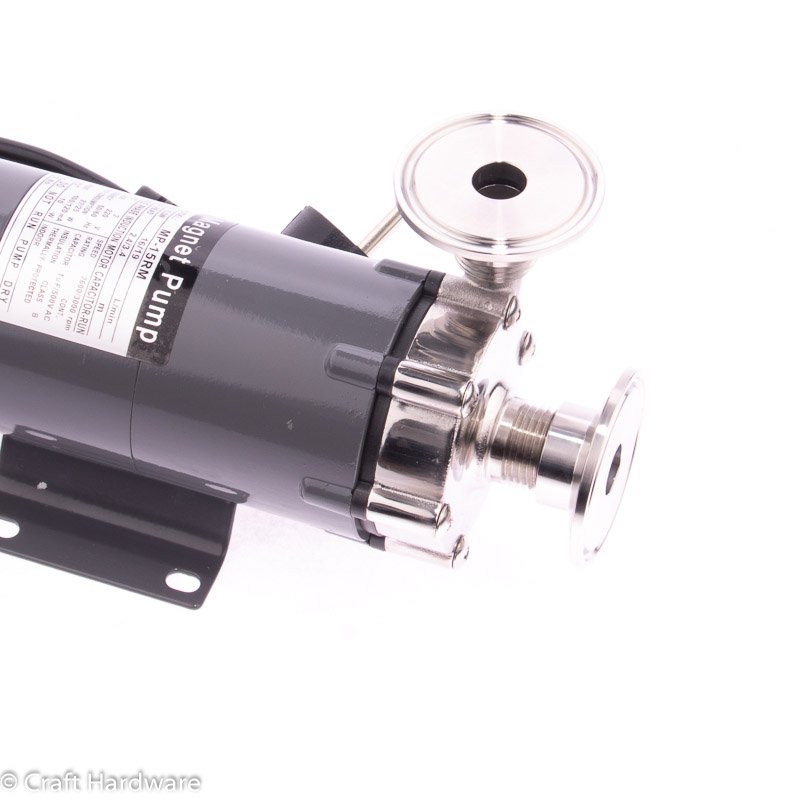

With this adapter you can easily convert your 1/2" BSP threaded pump to Tri-Clamp, no Teflon tape or tools required! Just screw on the adapter by hand with the included gasket and it is ready to go. Now you can connect any standard 1.5" Tri-Clamp fitting to the pump inlet and/or outlet. Works with BSP (e.g. MP-15R, Topsflo) pump threads. Does not work with NPT threads (Riptide). Sold individually; to fully convert your pump you will need two of these.

Specifications:

• Tri-Clamp size 1.5"
• Inner diameter: 13 mm
• Thread: 1/2" BSPP female
• Gasket: EPDM
• Minimum thread length required to install properly: 9mm

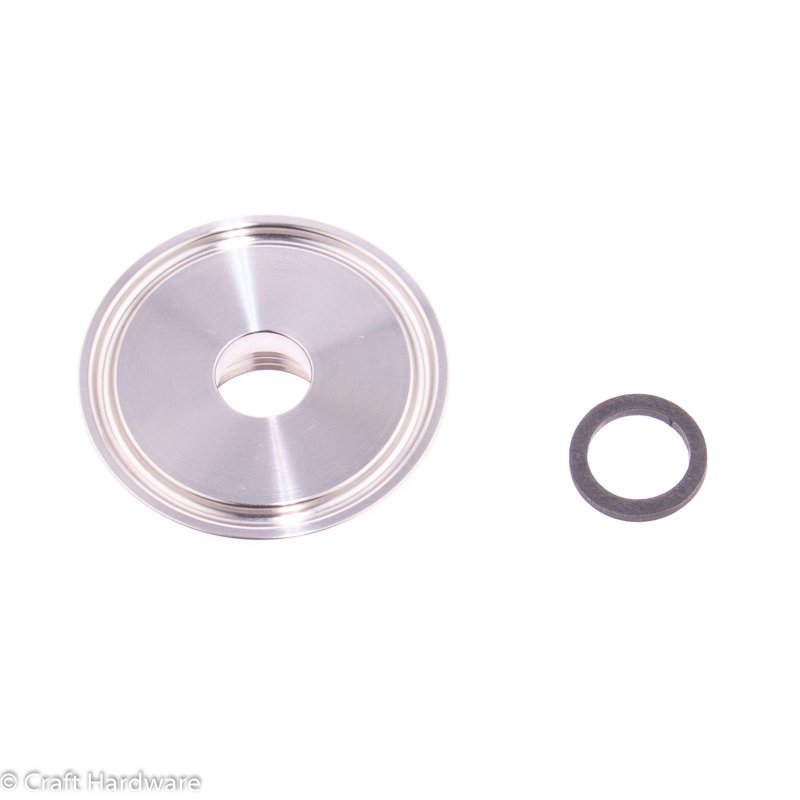

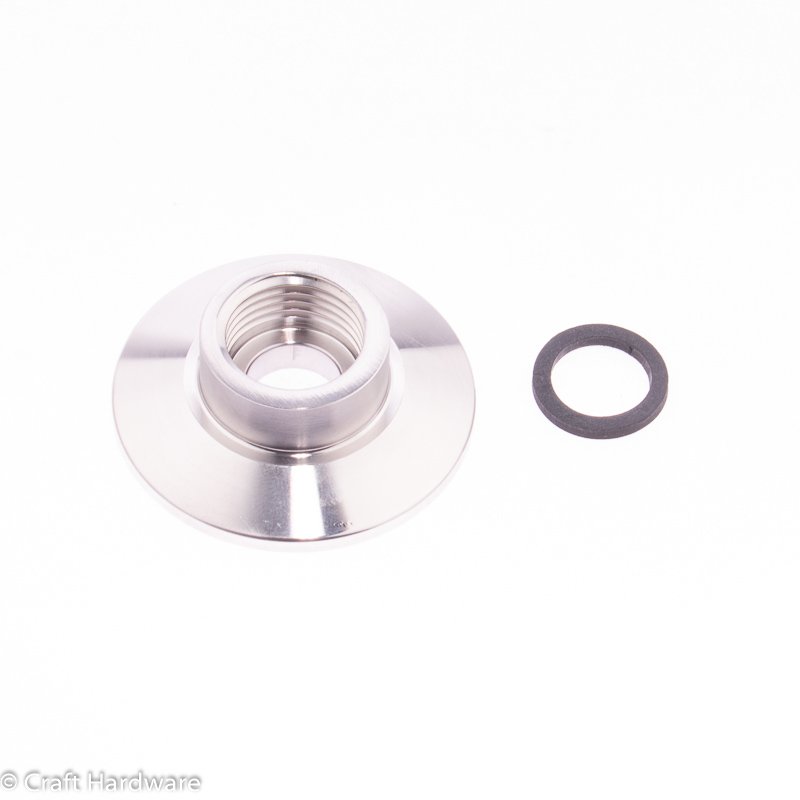

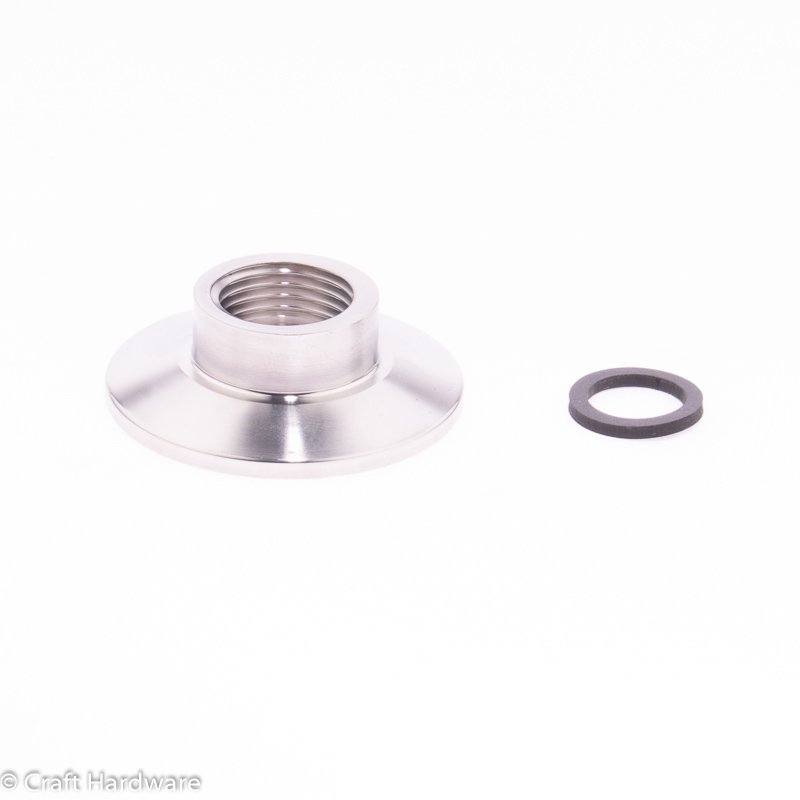

The fitting includes a robust EPDM gasket specially sized for this application. It is more tear resistant than silicone and seals without compressing into the fluid path. Make sure you have at least an 9mm length of male threads available where the fitting will be installed on the coil, otherwise it will not seal.

Note: This product is intended for use with 1/2" threaded pumps with 13mm ID. It requires a sufficiently wide flat surface on the male fitting to make a proper seal.
