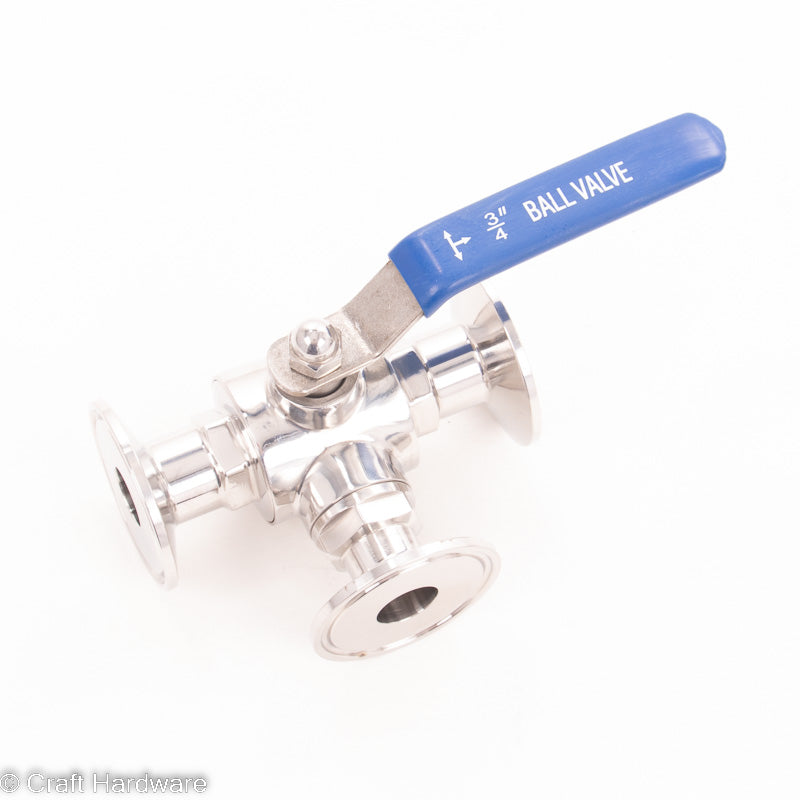

Ball Valve 3-Way T-bore Tri-Clamp 1.5" x 3/4"

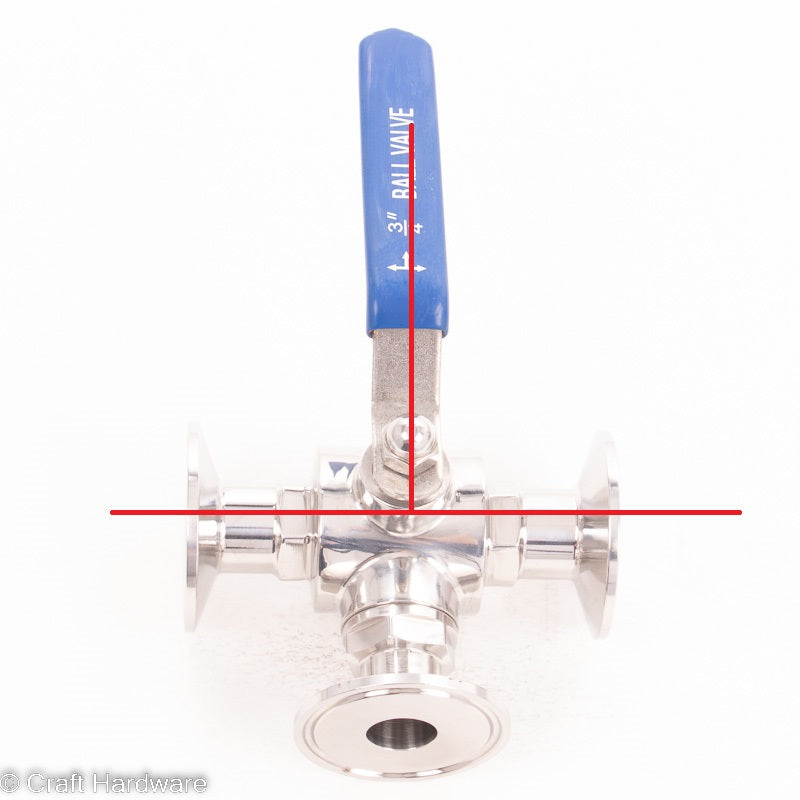

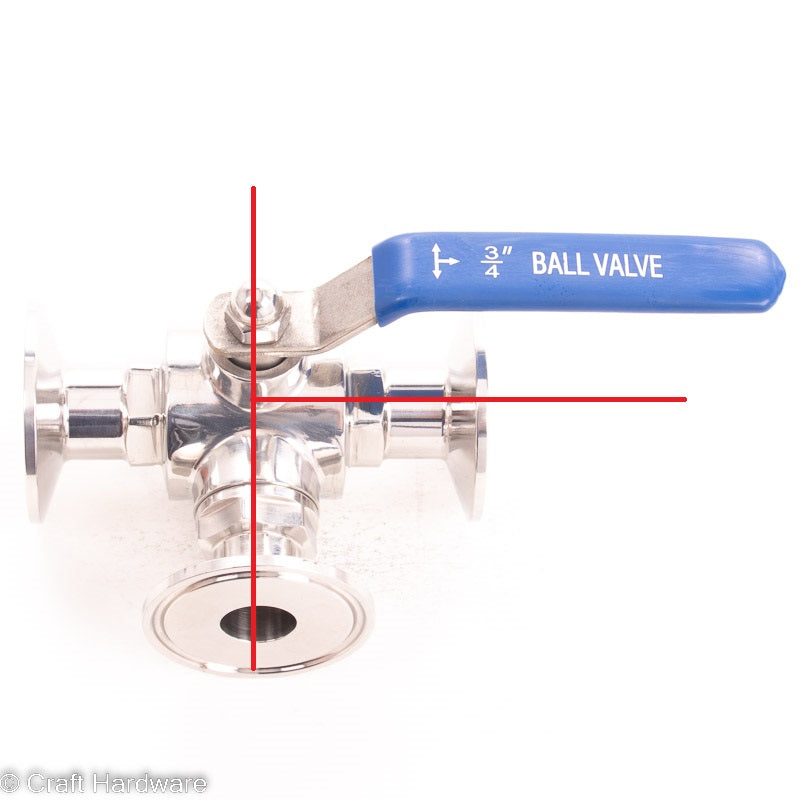

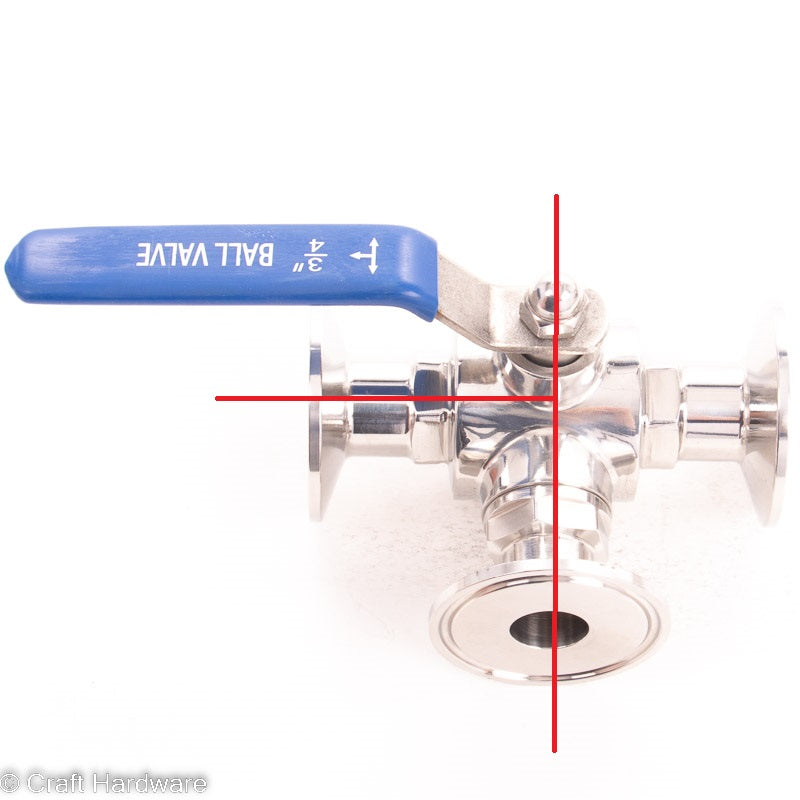

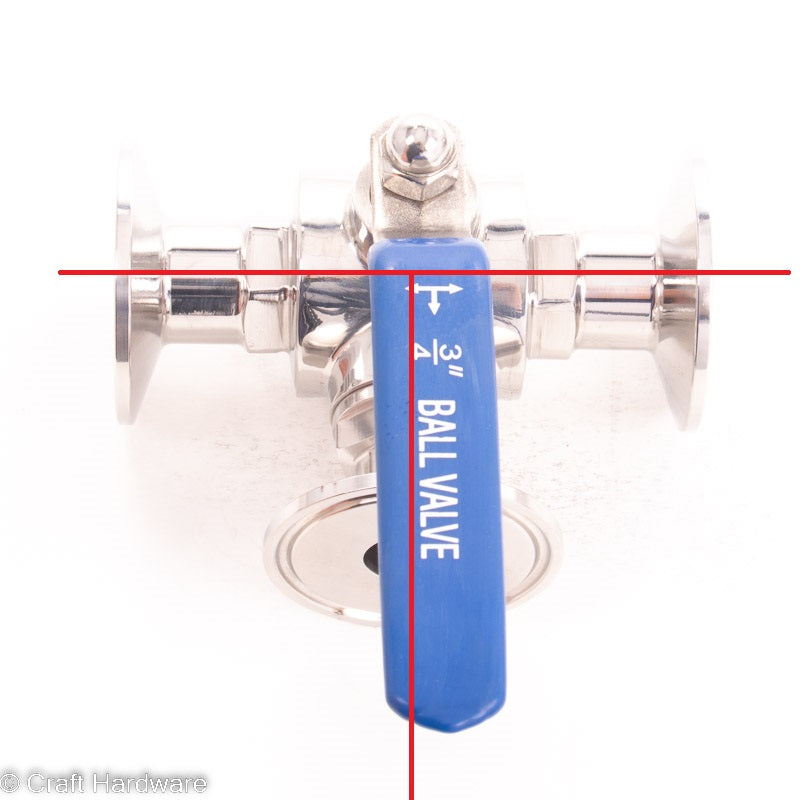

This 3-way ball valve is T-drilled and the ball rotates 360 degrees allowing a number of operating positions. Please make sure the available positions are suitable for your application. With a 3-way T Valve there may be no fully closed position, depending on your connections. Please consider your application carefully and determine if an L-Valve would work better. Also, make sure you have enough clearance to rotate the handle all the way around; some fittings may obstruct and prevent normal operation.

Specifications:

• Length 102 mm
• Inner Diameter 16mm (Nominal 3/4")
• Tri-Clamp Size 50.5 mm = 1.5"
• Wrench Size: 24 mm
• Gaskets: PTFE

The valve can, and should, be disassembled for cleaning. For initial disassembly you will want to use two wrenches, or place the valve in a vise. Re-tighten it with a wrench when reassembling, to prevent unwanted leaking by accidentally rotating of the attached fittings. The wrench flats are 24 mm. I recommend regular cleaning of your ball valves, even when used only on the hot side of your brewery.
