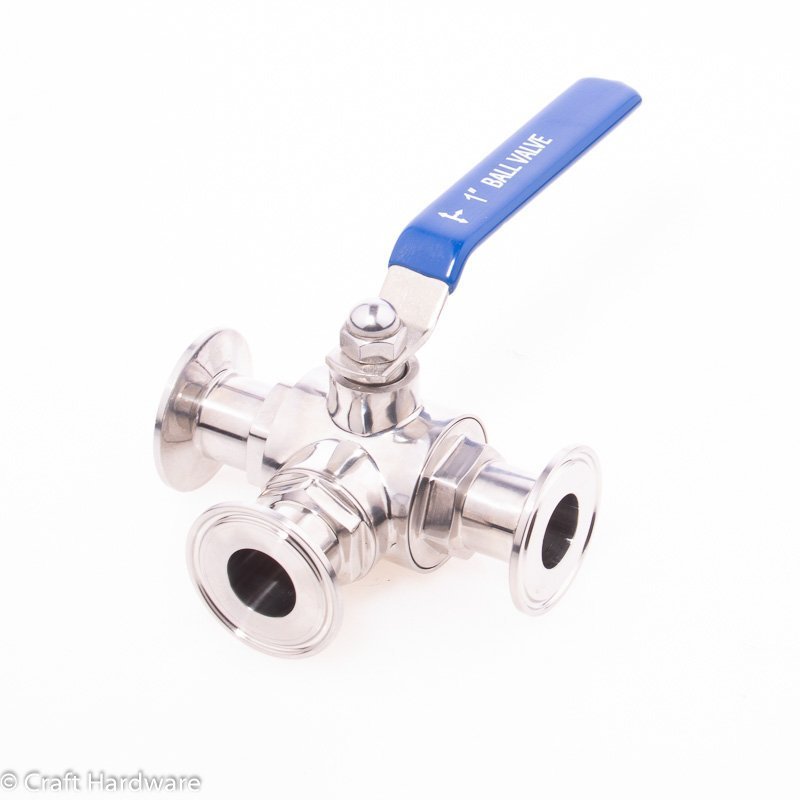

Ball Valve 3-Way T-bore Tri-Clamp 1"

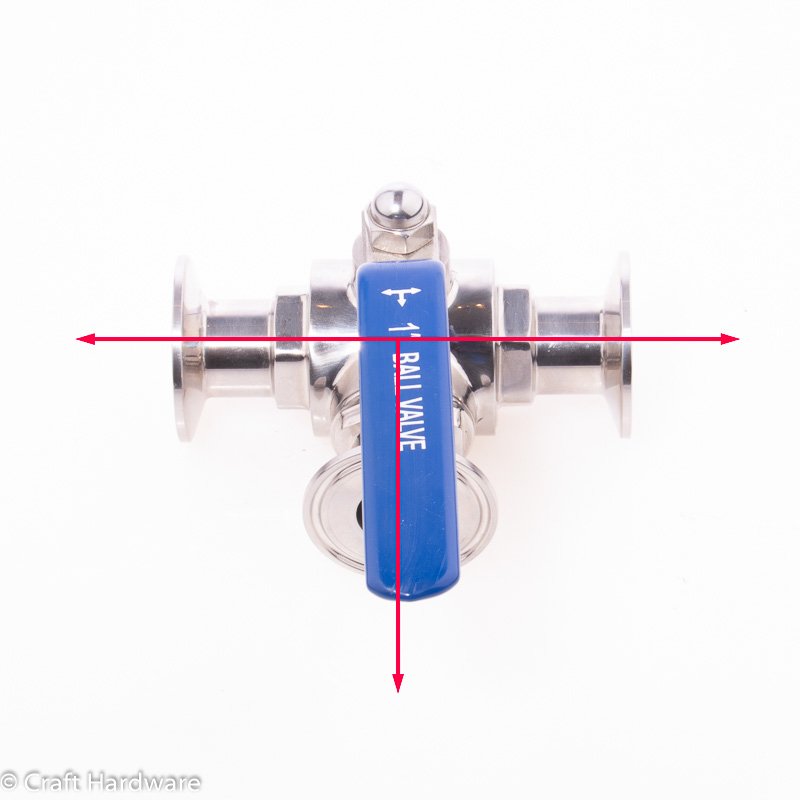

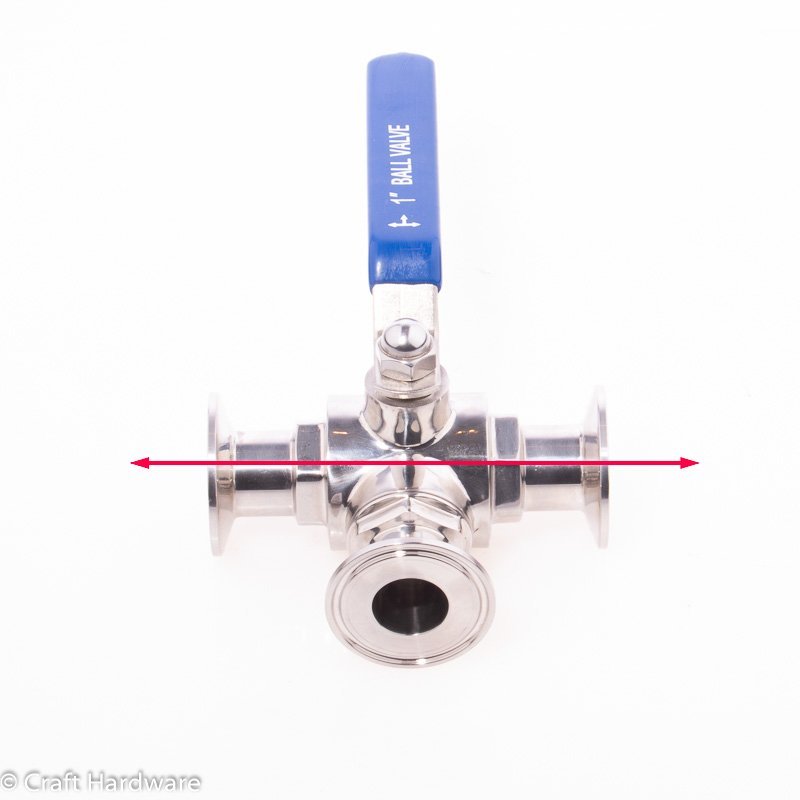

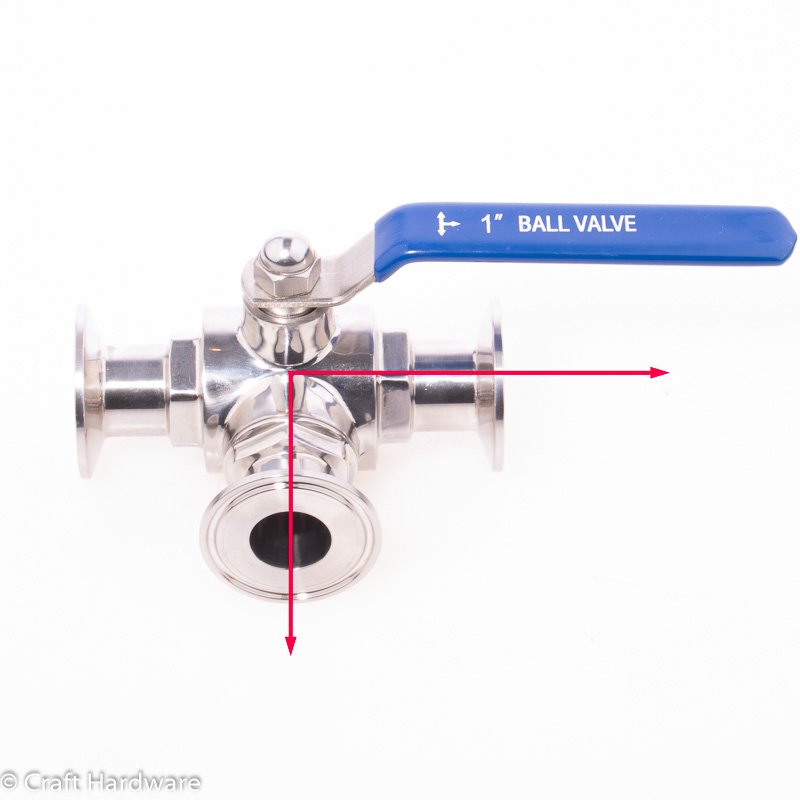

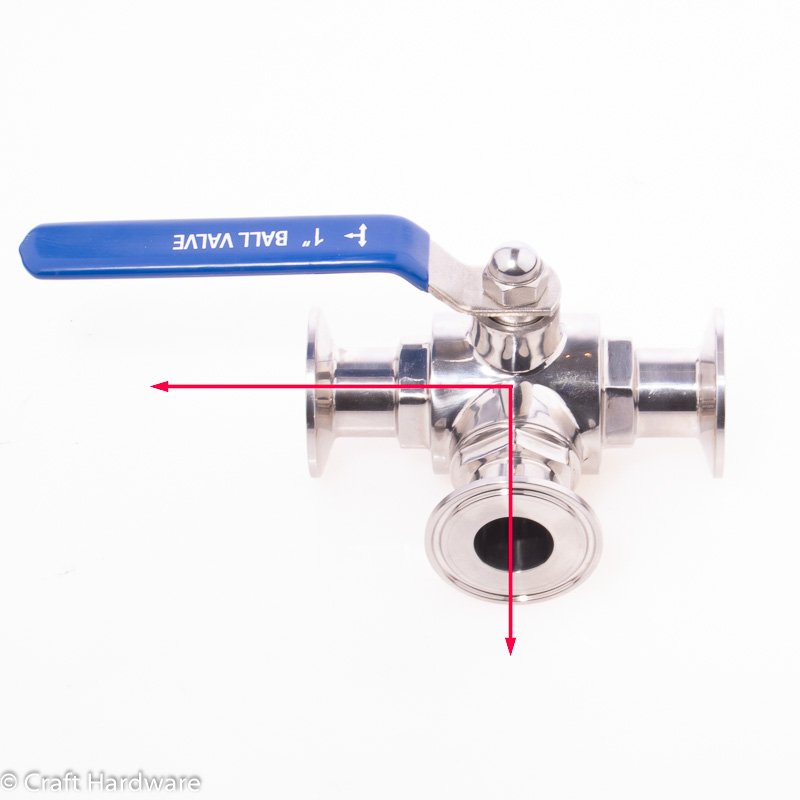

This 3-way ball valve is T-drilled and the ball rotates 360 degrees allowing a number of operating positions. Please make sure the available positions are suitable for your application.

Specifications:

• Length 121 mm
• Inner Diameter 22,1" (Nominal 1")
• Tri-Clamp Size 50.5 mm = 1.5"
• Wrench Size: 32 mm
• Gaskets: PTFE

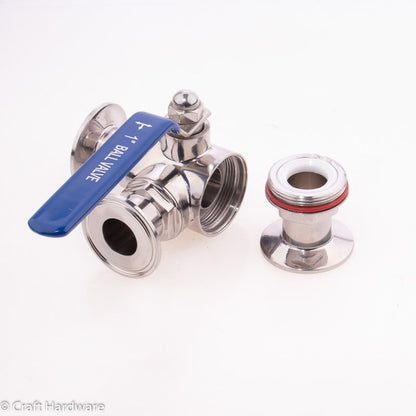

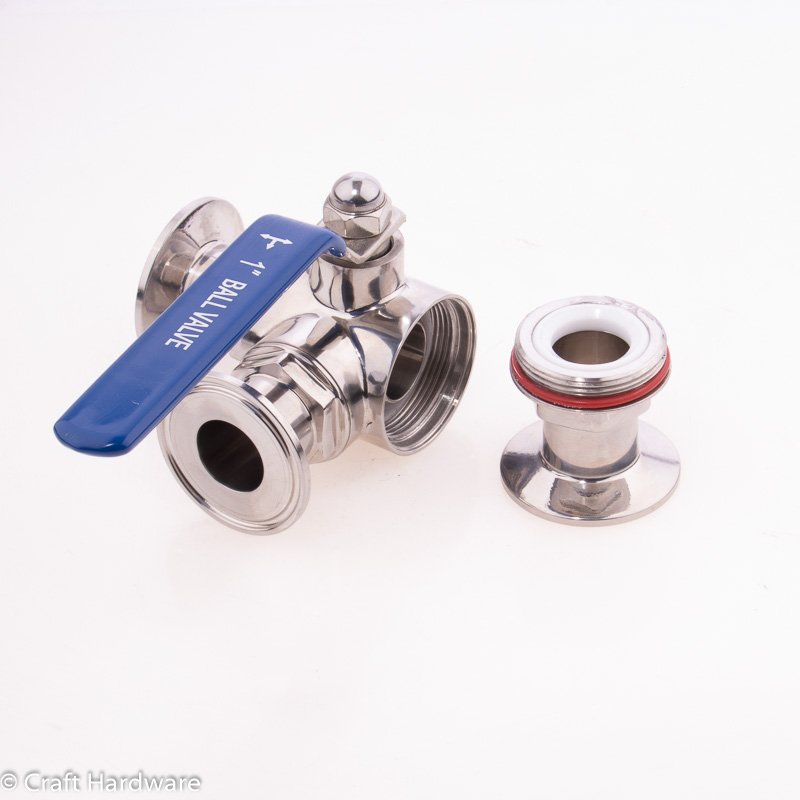

The valve can, and should, be disassembled for cleaning. For initial disassembly you will want to use two wrenches, or place the valve in a vise. Re-tighten it with a wrench when reassembling, to prevent unwanted leaking by accidentally rotating of the attached fittings. The wrench flats are 32mm. I recommend regular cleaning of your ball valves, even when used only on the hot side of your brewery.
