Sparge Arm Extension Tube - 37 cm
Sparge Arm Extension Tube - 37 cm
In stock
- Delivery time: 2-5 Workdays
Couldn't load pickup availability
SKU:
SKU:TFM20715

Product Description

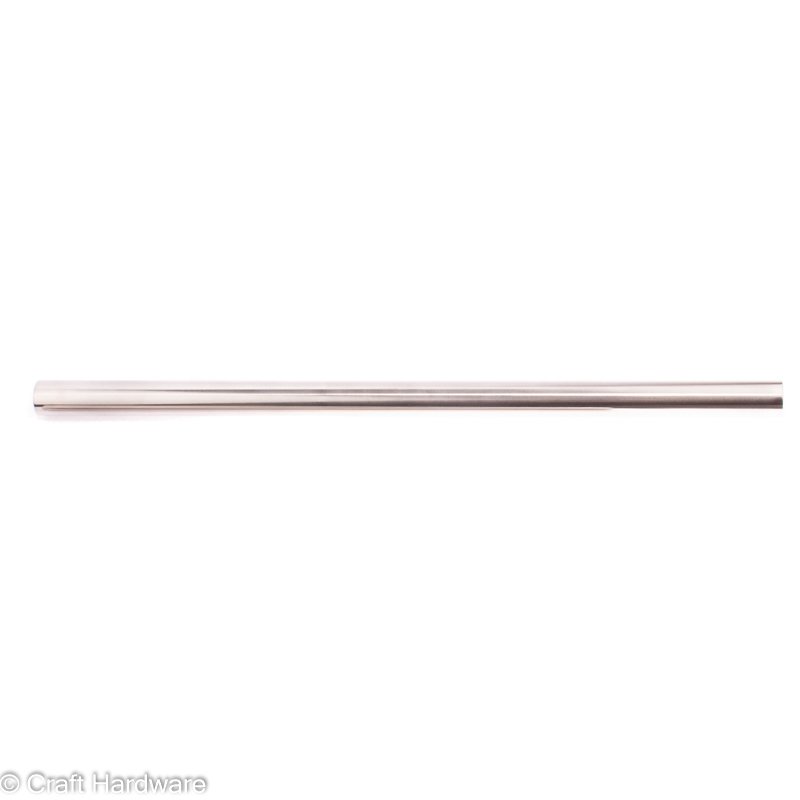

This is a 37 cm extension tube for our two-piece sparge arm design. Each length is sold separately and are available in 5 cm, 13 cm, 21 cm, 29 cm and 37 cm lengths.
- Inner diameter 15 mm
- Outer diamter 18 mm
- Length 37 cm
- Material SS 1.4301
How high should your sparge arm be? I recommend having the outlet a few cm below the surface of the liquid. There are mash volume calculators available on the internet, I've often used this one (in English, see the "Can I mash it" section).
The exit height of the sparge arm will depend on your kettle height and whether the arm is installed in the kettle top port or accessory clamp. To assist you in choosing the right length, you can refer to the following table which applies to the range of Craft Hardware kettles and both mounting options. The table shows the liter mark at which the center of the sparge arm exit will be located.
Volume at the sparge tube outlet when mounted in the upper Tri-Clamp port
Sparge Arm Extension Tube | 5 cm | 13 cm | 21 cm | 29 cm | 37 cm |
38L Flat Kettle | 26 | 19 | 11 | X | X |
57L Flat Kettle | 42 | 32 | 22 | 12 | X |
83L Flat Kettle | 63 | 50 | 37 | 25 | 12 |
114L Flat Kettle | 89 | 74 | 58 | 42 | 26 |
40L Bottom Drain Kettle | 27 | 19 | 11 | 4 | X |
60L Bottom Drain Kettle | 44 | 34 | 23 | 13 | 3 |
85L Bottom Drain Kettle | 64 | 51 | 38 | 26 | 13 |
115L Bottom Drain Kettle | 90 | 74 | 58 | 43 | 27 |
Volume at the sparge tube outlet when mounted in the kettle accessory clamp
Sparge Arm Extension Tube | 5 cm | 13 cm | 21 cm | 29 cm | 37 cm |
38L Flat Kettle | 34 | 26 | 19 | 11 | X |
57L Flat Kettle | 52 | 42 | 32 | 22 | 12 |
83L Flat Kettle | 76 | 63 | 50 | 37 | 25 |
114L Flat Kettle | 105 | 89 | 74 | 58 | 42 |
40L Bottom Drain Kettle | 35 | 27 | 19 | 11 | 4 |
60L Bottom Drain Kettle | 54 | 44 | 34 | 23 | 13 |
85L Bottom Drain Kettle | 54 | 44 | 34 | 23 | 13 |
115L Bottom Drain Kettle | 106 | 90 | 74 | 58 | 43 |
