Tri-Clamp Sparge Arm Mount

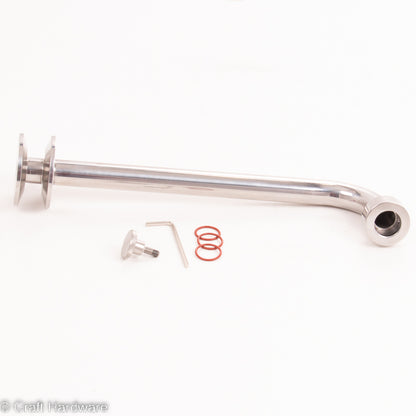

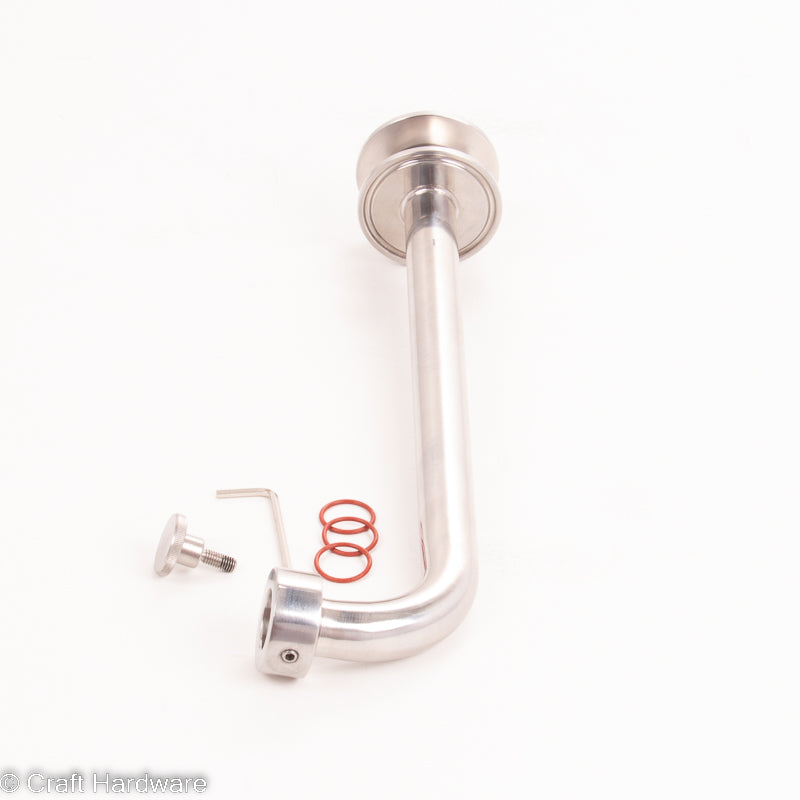

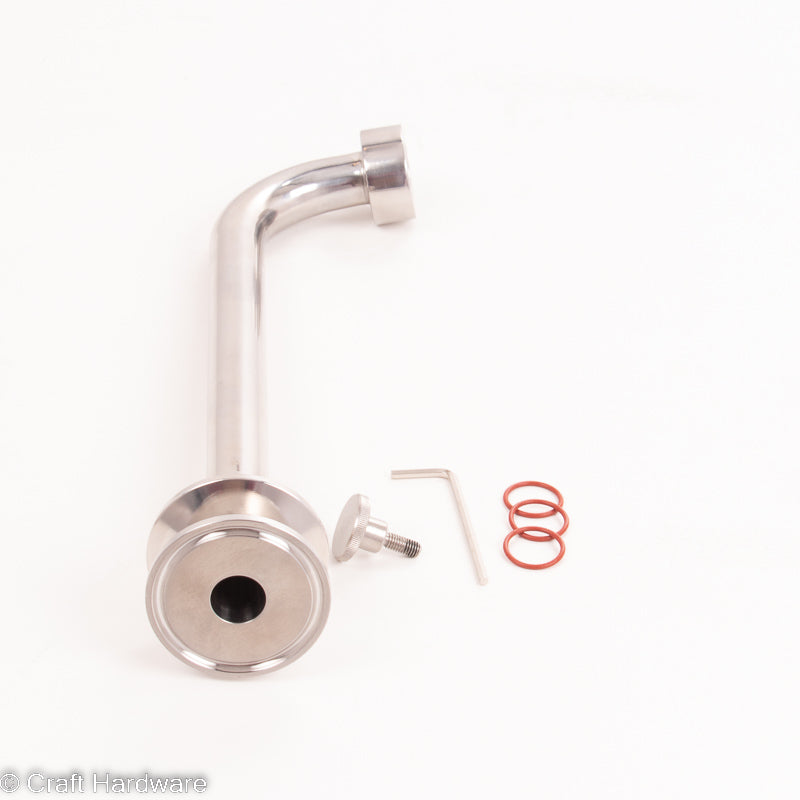

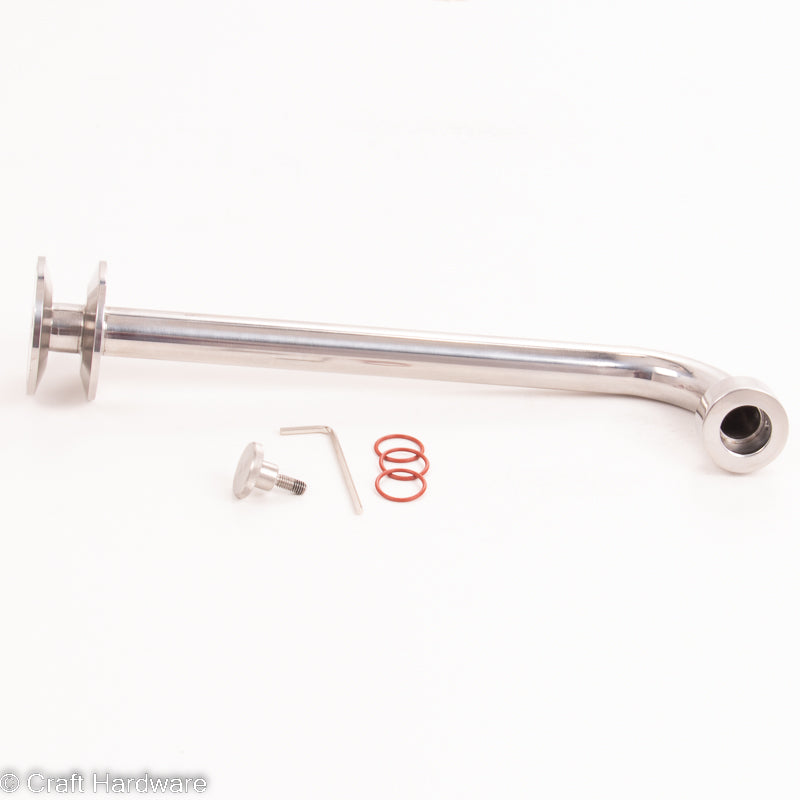

This is the central piece of our two-piece sparge arm, offered here without tube extensions or spreader plate. The price is for the arm and small parts shown in the first 3 pictures above. The other pictures show a typical use whenall parts are mounted in the kettle.

To complete the set, you should get an extension tube for the Sparge Arm in one or more lengths and add a spreader plate that is mounted on the extension tube.

Attach a sparge arm to the top port of your Craft Hardware kettle, or use our kettle handle tri-clamp mount. The two-piece design makes it possible to easily adjust the height of the sparge arm outlet (the lower tubes in different lengths are sold separately). If you can't find a suitable extension tube length, you can also use a piece of silicone tubing.

Note: the shaft collar at the end of the arm has an outer diameter of 32 mm. The tri-clamp ferrule must be at least 1.5“ or DN40 for the arm to pass through it, so any 1.5” bulkhead fitting we sell in the shop is suitable. If your kettle does not have a suitable tri-clamp ferrule, you can still use the kettle handle tri-clamp mount or install a tri-clamp bulkhead fitting to mount the sparge arm.
