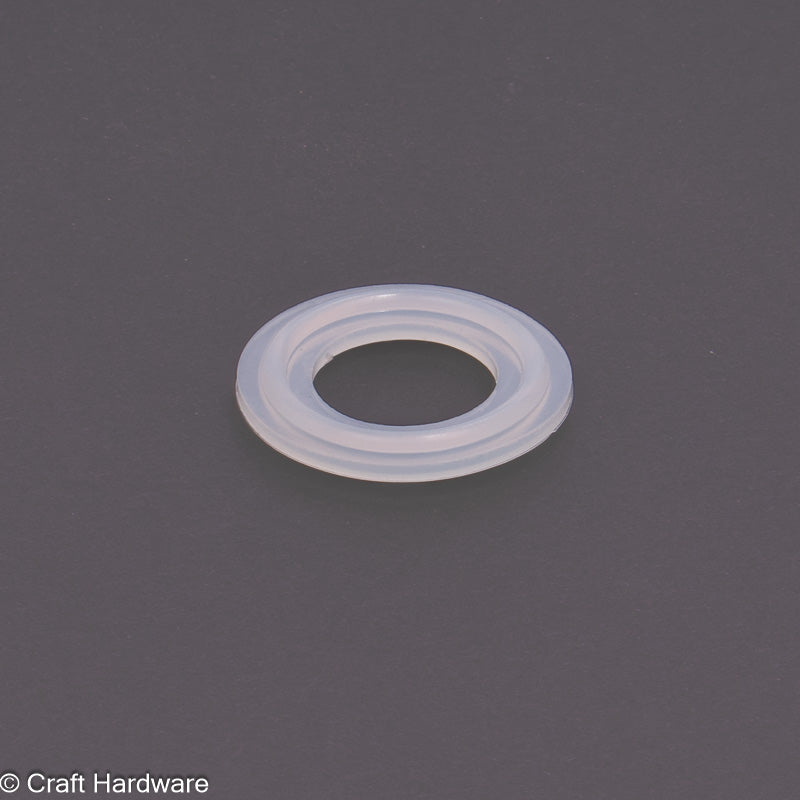

Silicone Gasket Tri-Clamp DN 15 (34 mm)

Silicone Tri-Clamp gaskets provide a hygienic, leak-tight seal between pipes and fittings and are widely used in brewery, food, and process applications.

Technical specifications

• Connection: Tri-Clamp
• Material: Silicone
• Standard (compatibility): DIN 32676 (Series A)
• Flange diameter (OD): 34 mm
• Inner diameter (ID): 16 mm
• Temperature range: −50 °C to +200 °C
• Chemical resistance:
  • Good resistance to water, steam, air, and diluted acids and alkalis
  • Not suitable for oils, fats, or solvents
• Color: Transparent

Note: Chemical resistance depends on the medium, concentration, temperature, and duration of exposure.
