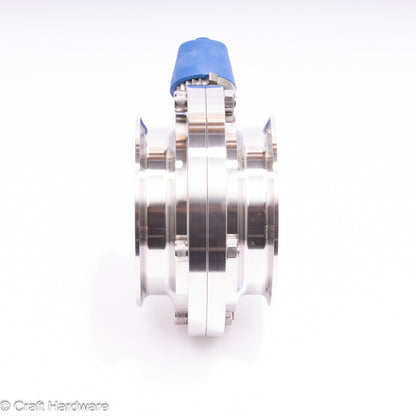

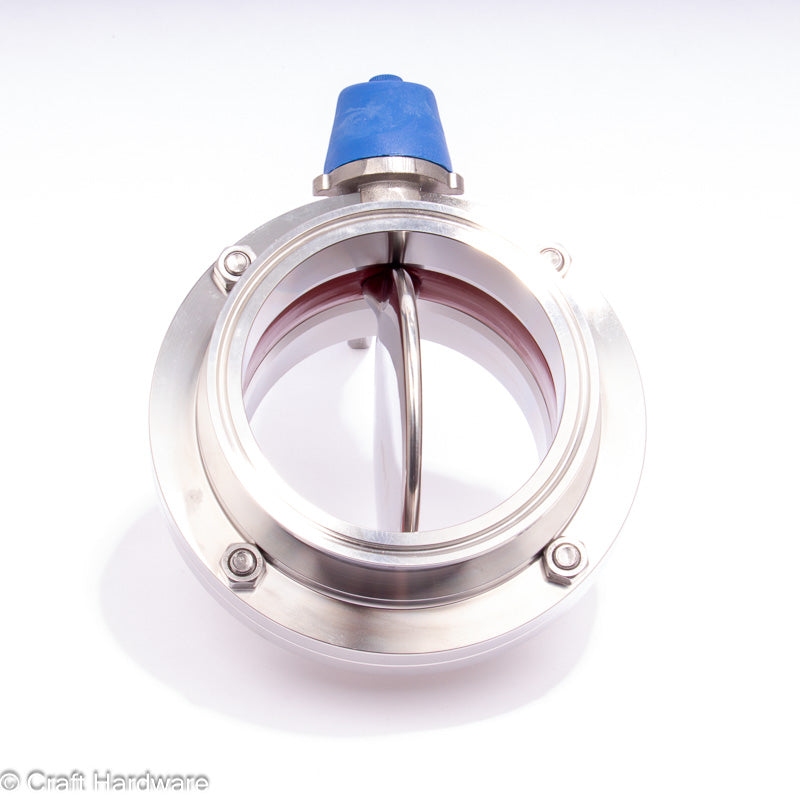

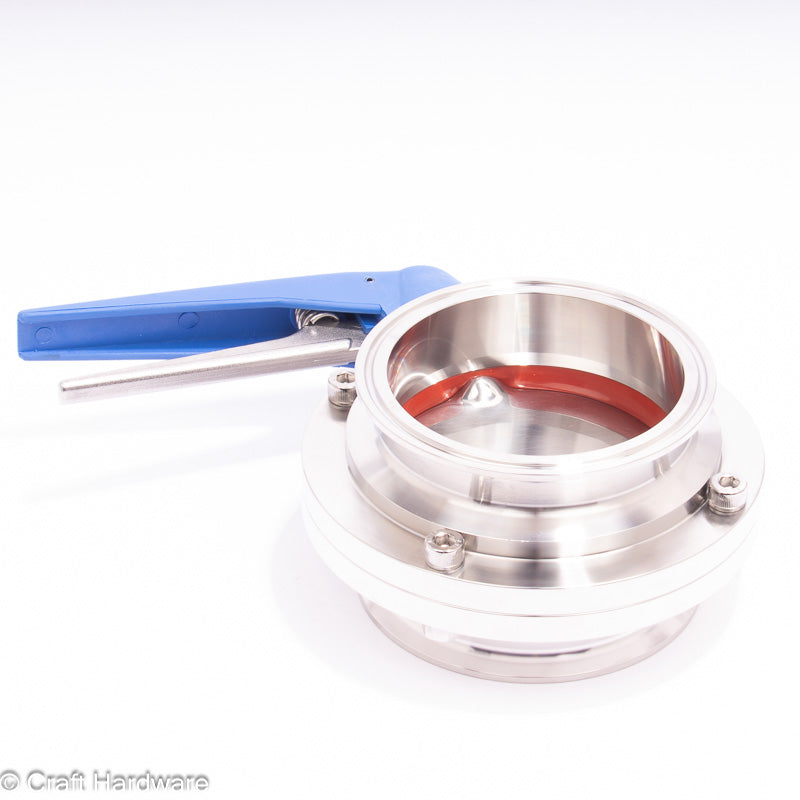

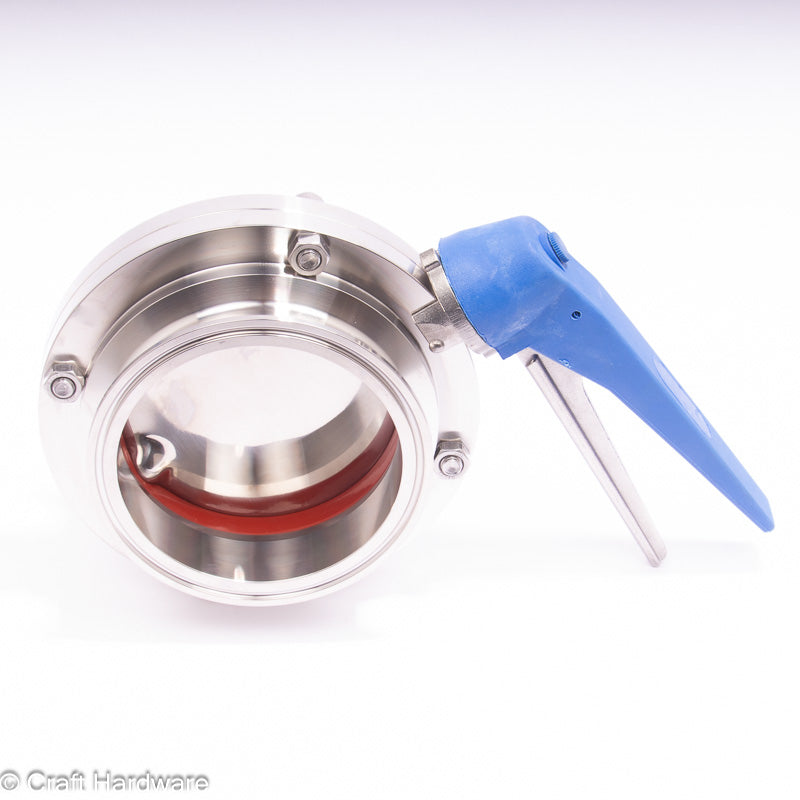

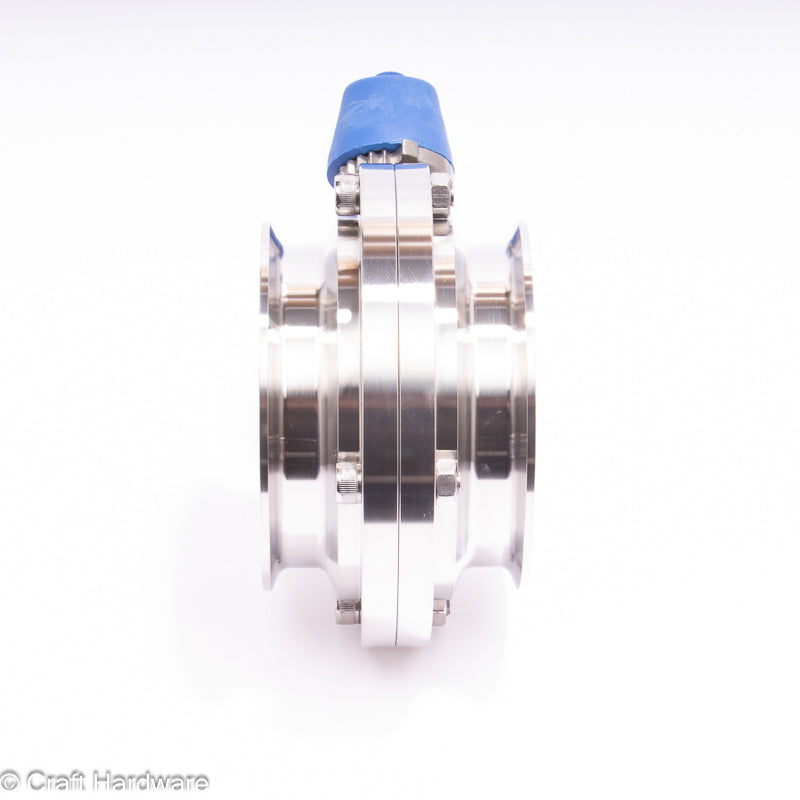

Butterfly Valve Tri-Clamp 4" with Trigger Handle
Butterfly Valve Tri-Clamp 4" with Trigger Handle
In stock
- Delivery time: 2-5 Workdays
Couldn't load pickup availability
SKU:
SKU:TAK05005
Product Description
Stainless Steel 4" butterfly valve with blue squeeze trigger handle. The handle has a toothed lock ring which holds the handle in place until the level is squeezed to allow opening and closing.
- Valve body length 84 mm
- Inner diameter 97.4 mm
- Tri-Clamp size 119 mm = 4"
- Valve body diameter 155 mm
- Stainless steel 1.4301
- Silicone seal rated to 140℃

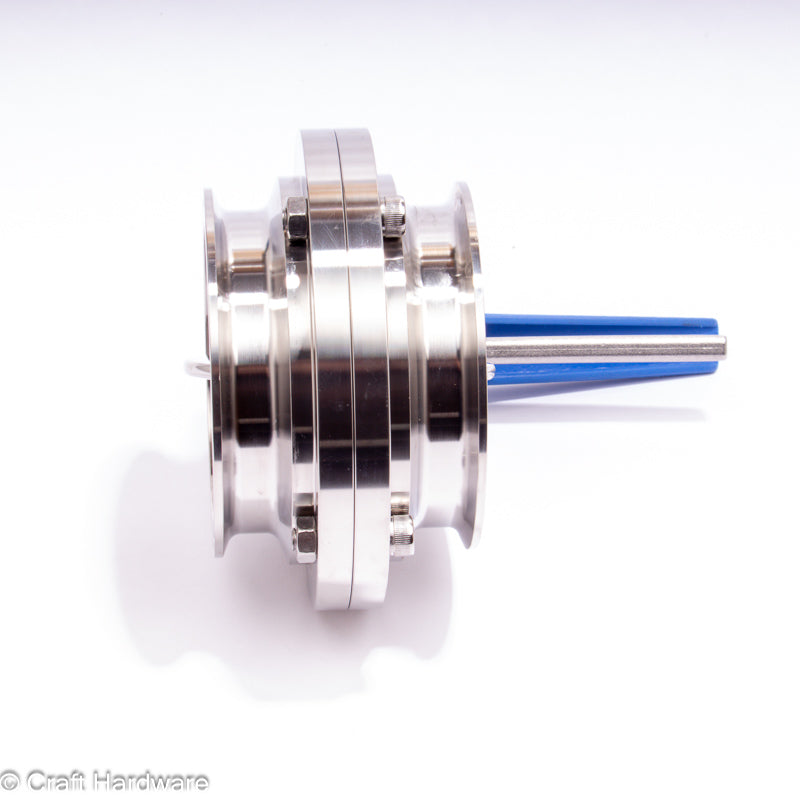

Note: the valve flap protrudes past the tri-clamp flange when the valve is fully opened, making it impossible to attach an end cap directly to the valve. You can see this in the last picture.
Note: This product falls under Article 4(3) of Directive 2014/68/EU (Pressure Equipment Directive) and is manufactured in accordance with good engineering practice (GEP). CE marking is not required.
Manufacturer: Craft Hardware, Kreuzeckstr 9a 86163 Augsburg, https://www.crafthardware.de/
