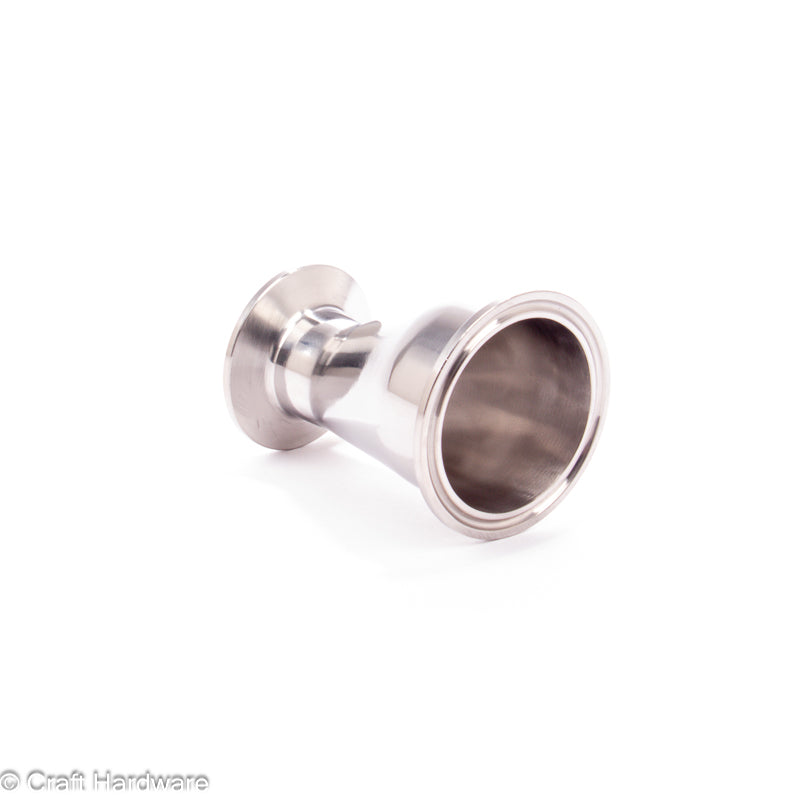

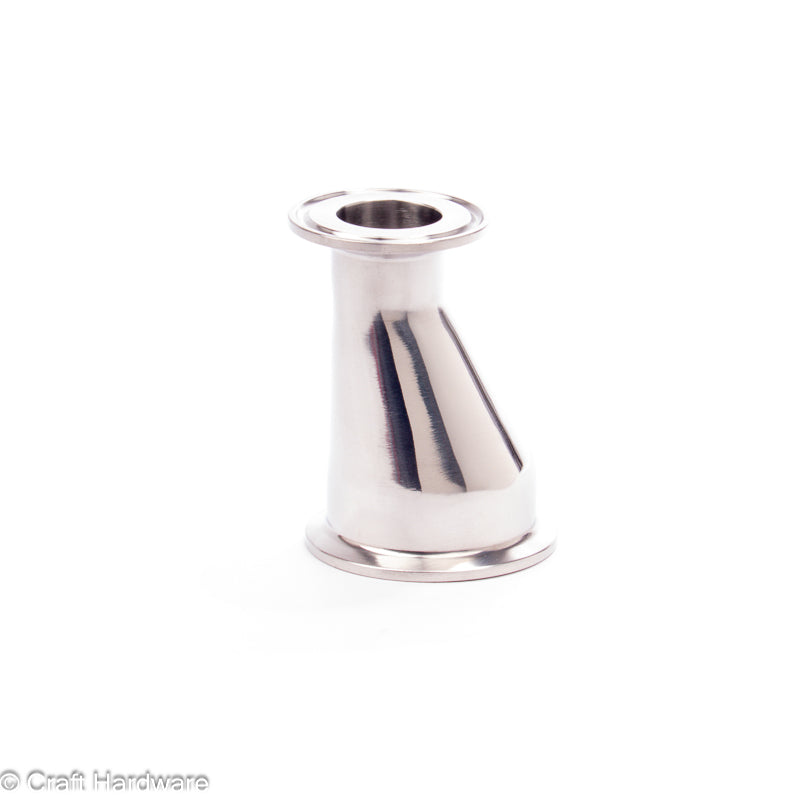

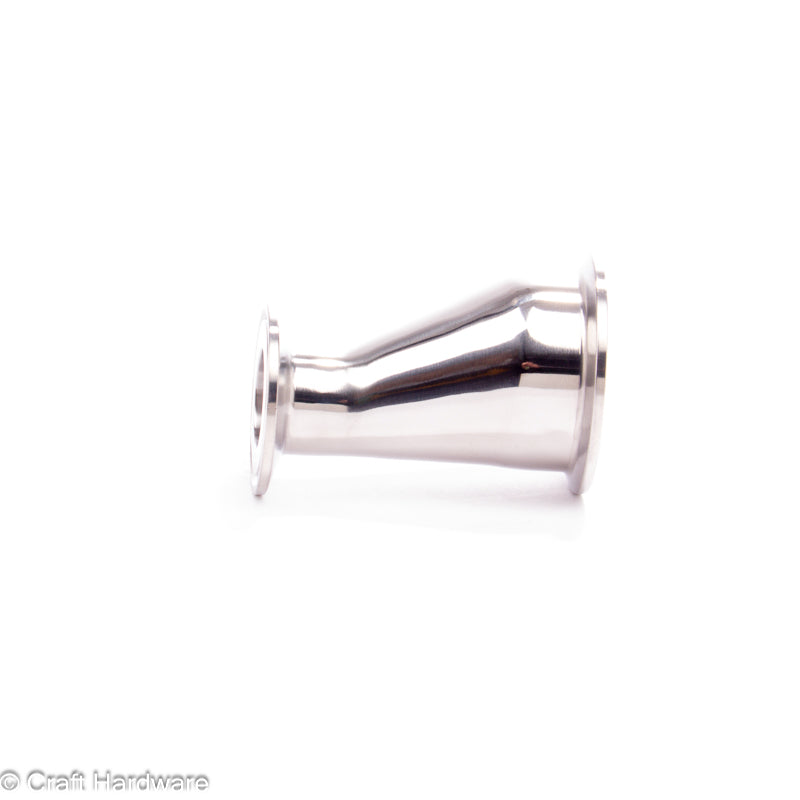

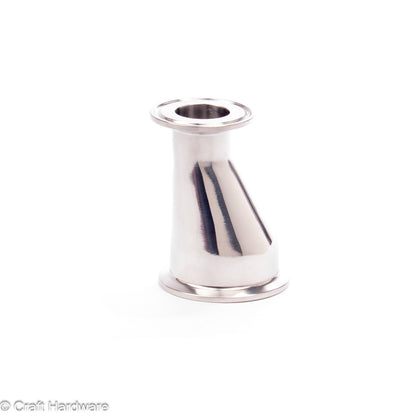

Reducer Eccentric Tri-Clamp DN 50 to DN 25

Reducer Eccentric Tri-Clamp DN 50 to DN 25

€23,00 EUR
€23,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

  • Delivery time: 2-5 Workdays

SKU:

TFK28077

View full details

Product Description

DN 50 to DN 25 Tri-Clamp eccentric reducer. Adapt between DN 50 and DN 25 without any hard steps in the flow path.

Eccentric Tri-Clamp Reducers are optimized for use in horizontal piping applications. Their flat side eliminates the risk of pooling. They are also suitable for situations in vertical installations where one part is offset from the other.

  • Tri-Clamp size (1) 64 mm = DN 50
  • Tri-Clamp size (2) 50.5 mm = DN 25 - DN 40
  • Inner diameter (1) 50 mm
  • Inner diameter (2) 26 mm
  • Length 86 mm
  • Material: SS 304

Note: This product falls under Article 4(3) of Directive 2014/68/EU (Pressure Equipment Directive) and is manufactured in accordance with good engineering practice (GEP). CE marking is not required.

Manufacturer: Craft Hardware, Kreuzeckstr 9a 86163 Augsburg, https://www.crafthardware.de/
