Reducer Eccentric Tri-Clamp 2" to 1.5"
Reducer Eccentric Tri-Clamp 2" to 1.5"
In stock
- Delivery time: 2-5 Workdays
Couldn't load pickup availability
SKU:
SKU:TFK28071
Product Description

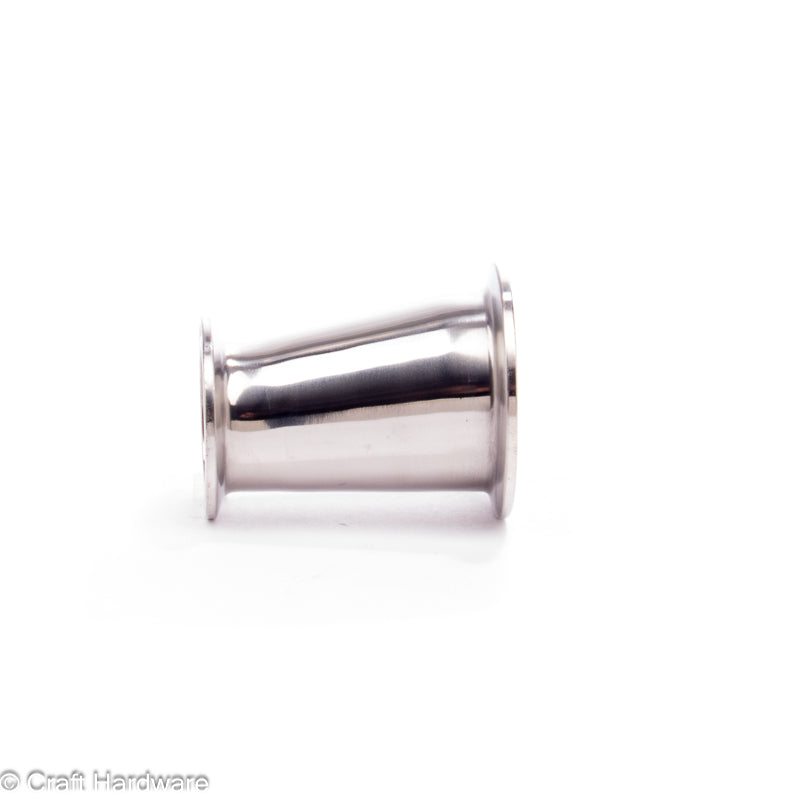

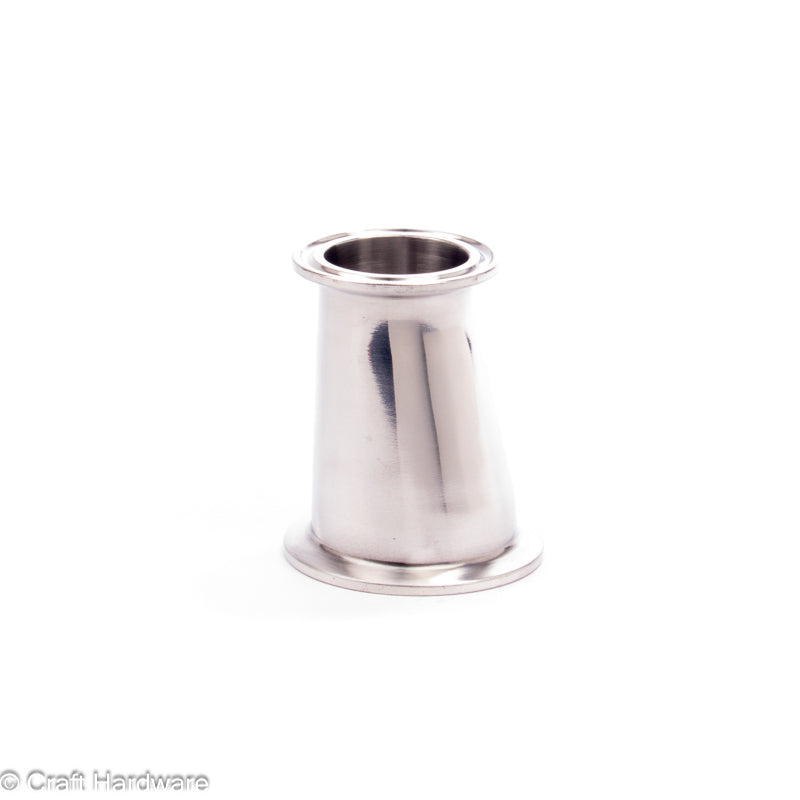

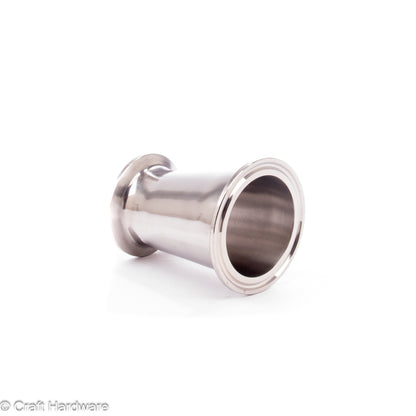

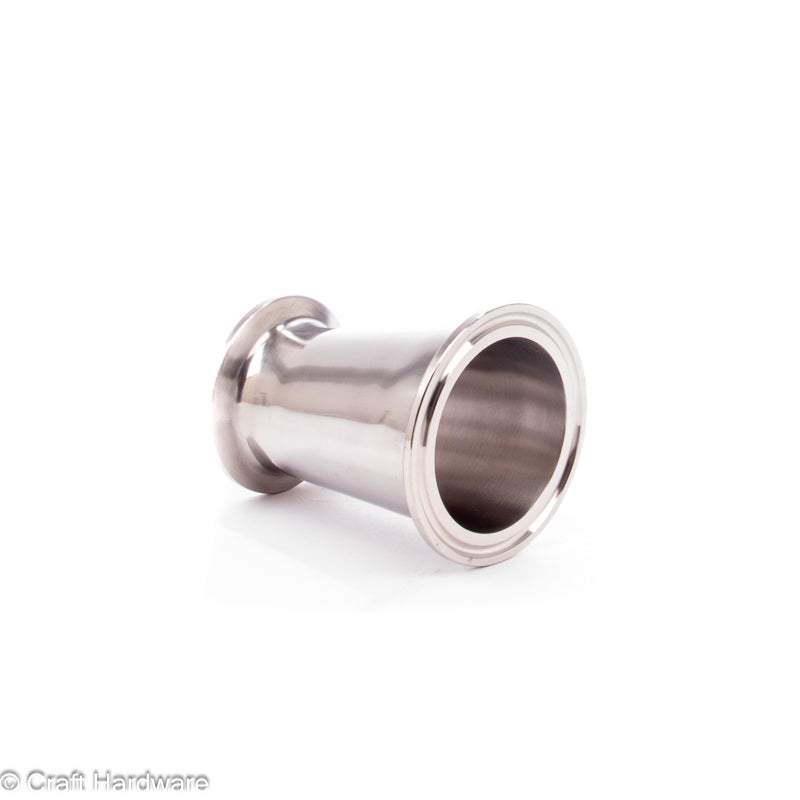

2" to 1.5" Tri-Clamp eccentric reducer. Adapt between 2" and 1.5" without any hard steps in the flow path.
Eccentric Tri-Clamp Reducers are optimized for use in horizontal piping applications. Their flat side eliminates the risk of pooling. They are also suitable for situations in vertical installations where one part is offset from the other.
- Tri-Clamp size (1) 64 mm = 2"
- Tri-Clamp size (2) 50.5 mm = 1.5"
- Inner diameter (1) 47.5 mm
- Inner diameter (2) 34.8 mm
- Length 76 mm
- Material SS 304
Note: This product falls under Article 4(3) of Directive 2014/68/EU (Pressure Equipment Directive) and is manufactured in accordance with good engineering practice (GEP). CE marking is not required.
Manufacturer: Craft Hardware, Kreuzeckstr 9a 86163 Augsburg, https://www.crafthardware.de/
