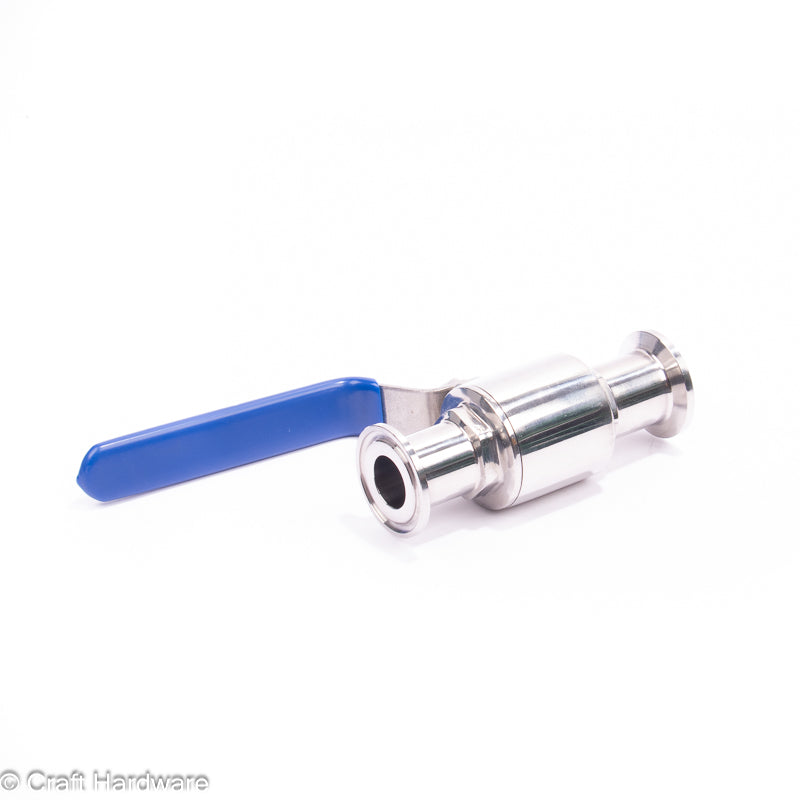

Ball Valve Two Piece Tri-Clamp 3/4"

This ball valve has a two piece design that can be disassembled for cleaning.

• Inner diameter 15.75 mm (3/4" nominal size)
• Gaskets: Silicone and PTFE
• Tri-Clamp size 3/4" = 25 mm
• Length between Tri-Clamp flanges 100 mm
• Wrench flats are 21 mm

For initial disassembly you will want to use two wrenches, or place the valve in a vise. Re-tighten it with a wrench when reassembling, to prevent unwanted leaking by accidentally rotating of the attached fittings. The wrench flats are 26mm. I recommend regular cleaning of your ball valves, even when used only on the hot side of your brewery.
