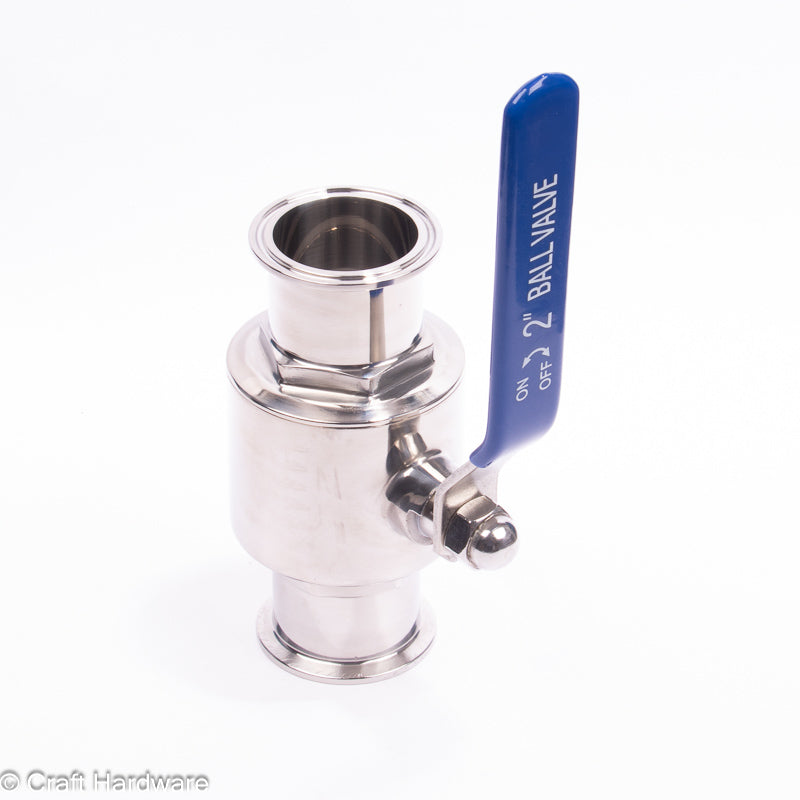

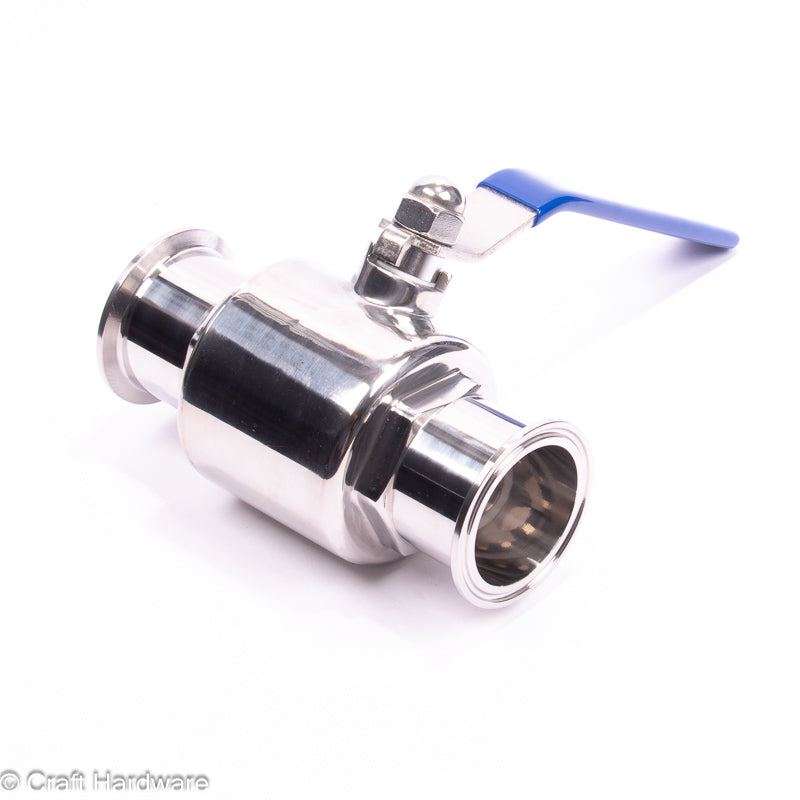

This ball valve has a two piece design that can be disassembled for cleaning.
- Inner diameter 47.5 mm (2" nominal size)
- Gaskets: Silicone and PTFE
- Tri-Clamp size 64 mm = 2"
- Length between Tri-Clamp flanges 163 mm
- Wrench flats are 54 mm
For initial disassembly you will want to use two wrenches, or place the valve in a vise. Re-tighten it with a wrench when reassembling, to prevent unwanted leaking by accidentally rotating of the attached fittings. I recommend regular cleaning of your ball valves, even when used only on the hot side of your brewery.
