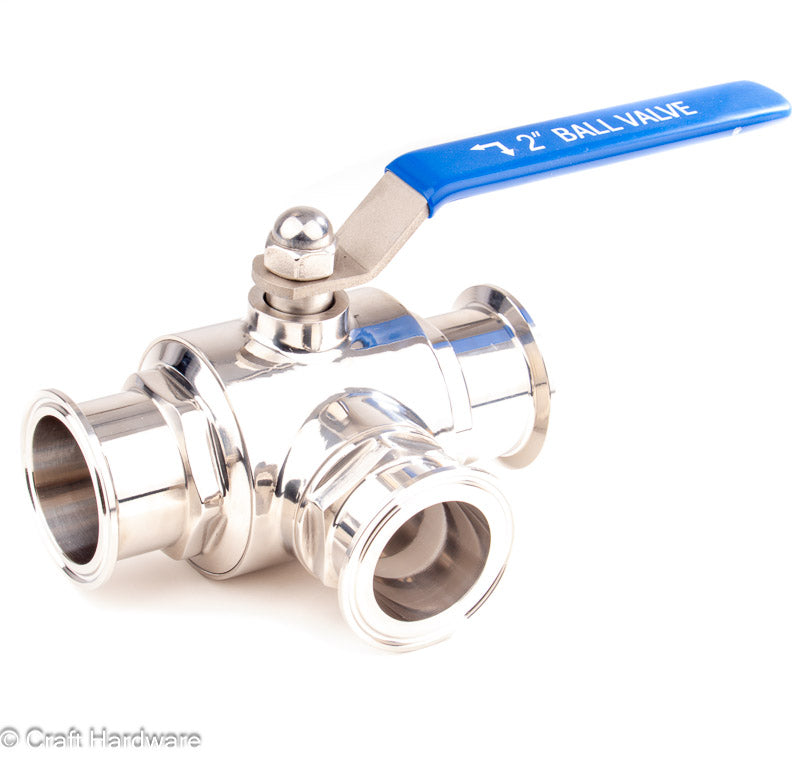

Ball Valve 3-Way L-bore Tri-Clamp 2"

Special order item, air freight surcharge will apply. Please contact us for a quote and actual delivery time.

This 3-way ball valve is L-drilled and the ball rotates 360 degrees allowing 3 operating positions. Please make sure the available positions are suitable for your application.

Specifications:

• Length 164 mm
• Inner Diameter 47.5 mm (Nominal 2")
• Tri-Clamp Size 64 mm = 2"
• Wrench Size: 49 & 55 mm
• Gaskets: PTFE

The three way valves are sealed and pressure checked at the factory. They are not intended to be disassembled for cleaning as they can be very difficult to properly re-seal. For proper cleaning a manual brush or CIP method should be employed.
