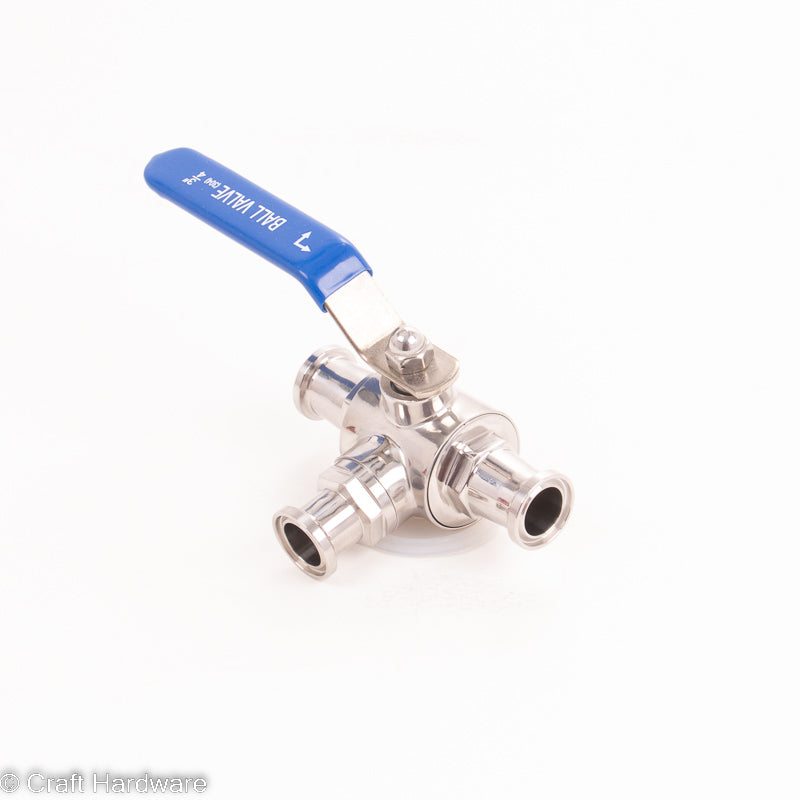

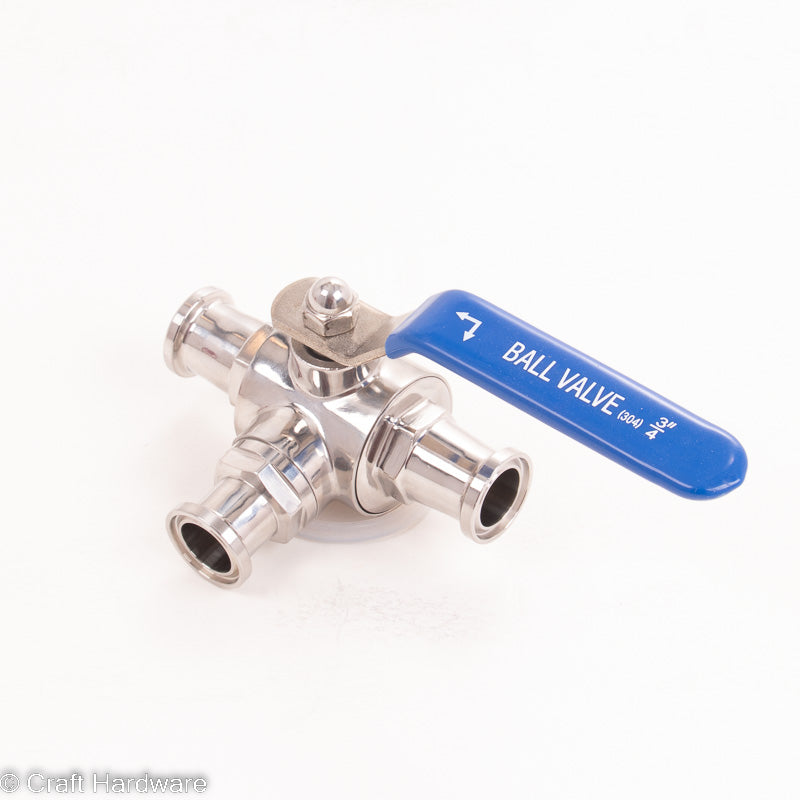

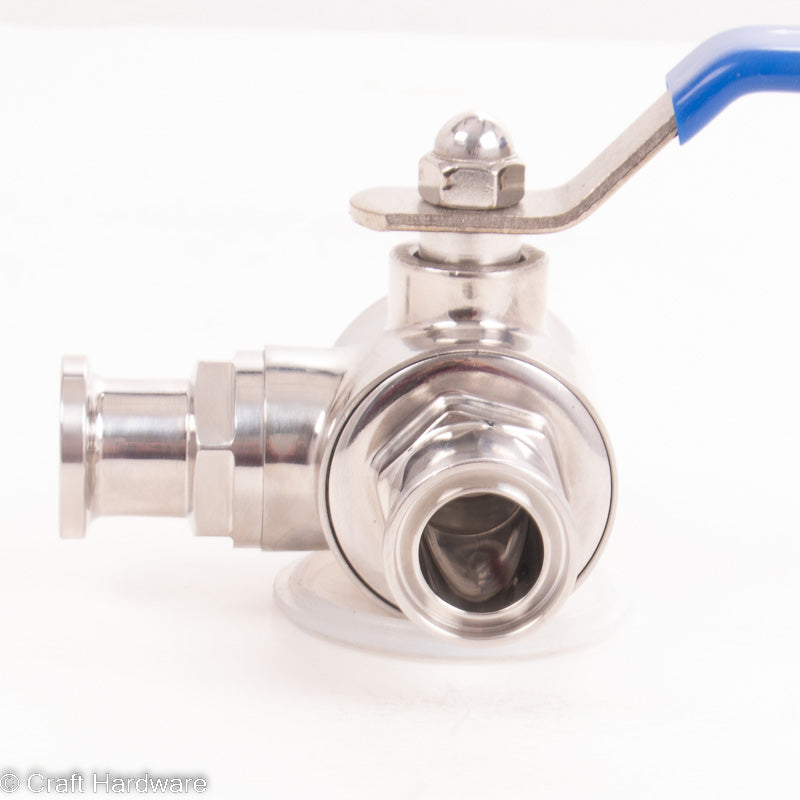

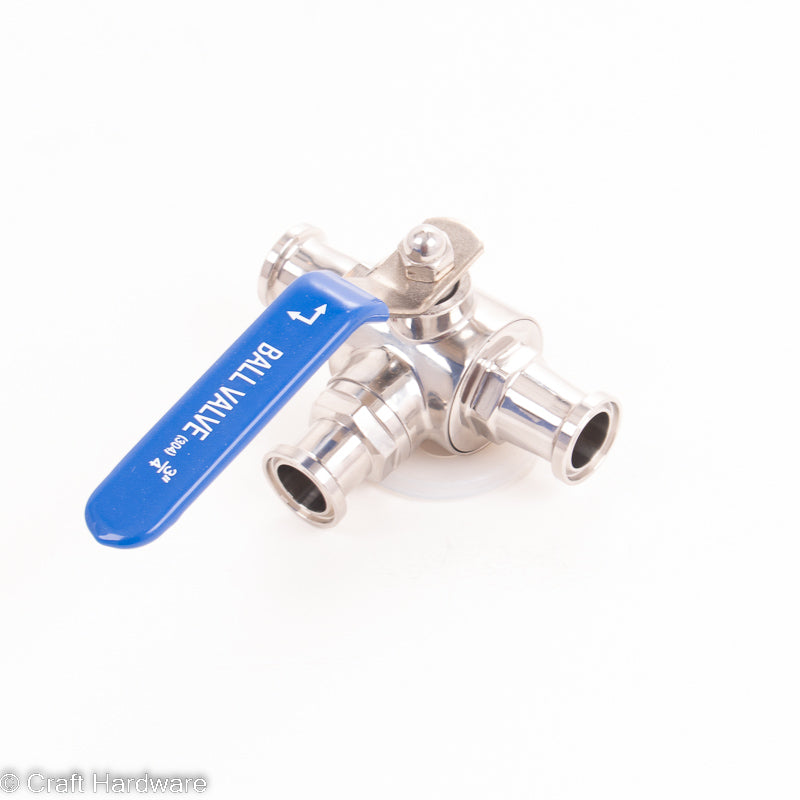

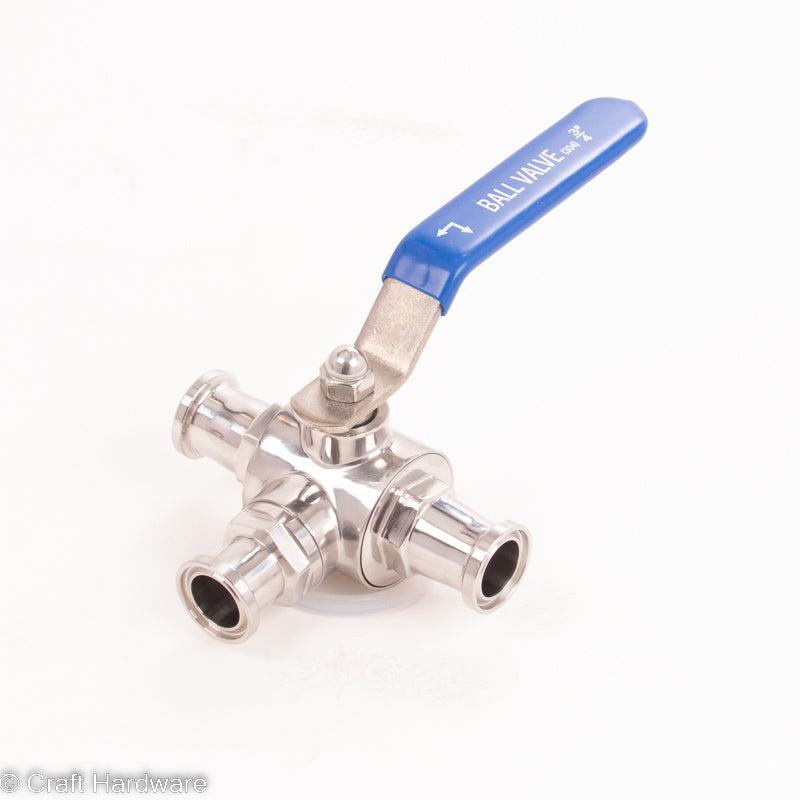

Ball Valve 3-Way L-bore Tri-Clamp 3/4"

Attention: this ball valve has a 3/4" (25.4 mm) Tri-Clamp flange size, sometimes called mini Tri-Clamp. It is not compatible with 1.5" Tri-Clamp Fittings.

This 3-way ball valve is L-drilled and the ball rotates 360 degrees allowing 3 operating positions. Please make sure the available positions are suitable for your application. Typically with an L valve the fluid entrance would be the middle leg, with the exit on either side. Make sure you have enough clearance to rotate the handle all the way around; some fittings may obstruct and prevent normal operation.

Specifications:

• Length 101 mm
• Inner Diameter 16mm (Nominal 3/4")
• Tri-Clamp Size 25.4 mm = 1/2" or 3/4"
• Wrench Size: 24 mm
• Gaskets: PTFE

The valve can be disassembled for cleaning. For initial disassembly you will want to use two wrenches, or place the valve in a vise. Re-tighten it with a wrench when reassembling, to prevent unwanted leaking by accidentally rotating of the attached fittings.
