Ball Valve 3-Way T-bore Tri-Clamp 1.5"

Ball Valve 3-Way T-bore Tri-Clamp 1.5"

€75,00 EUR
€75,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

  • Delivery time: 2-5 Workdays

SKU:

TAK21473

View full details

Product Description

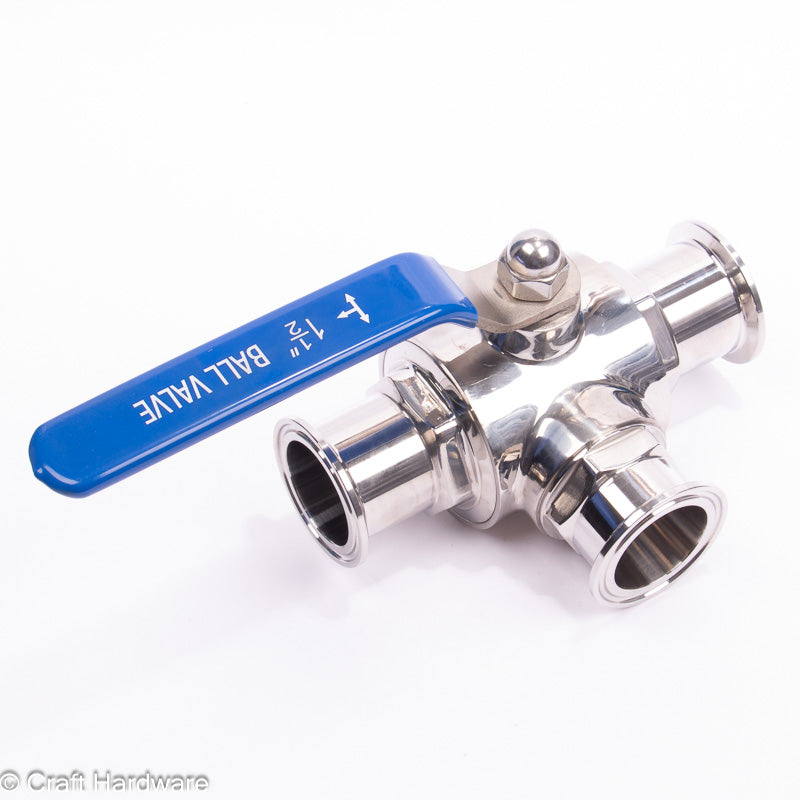

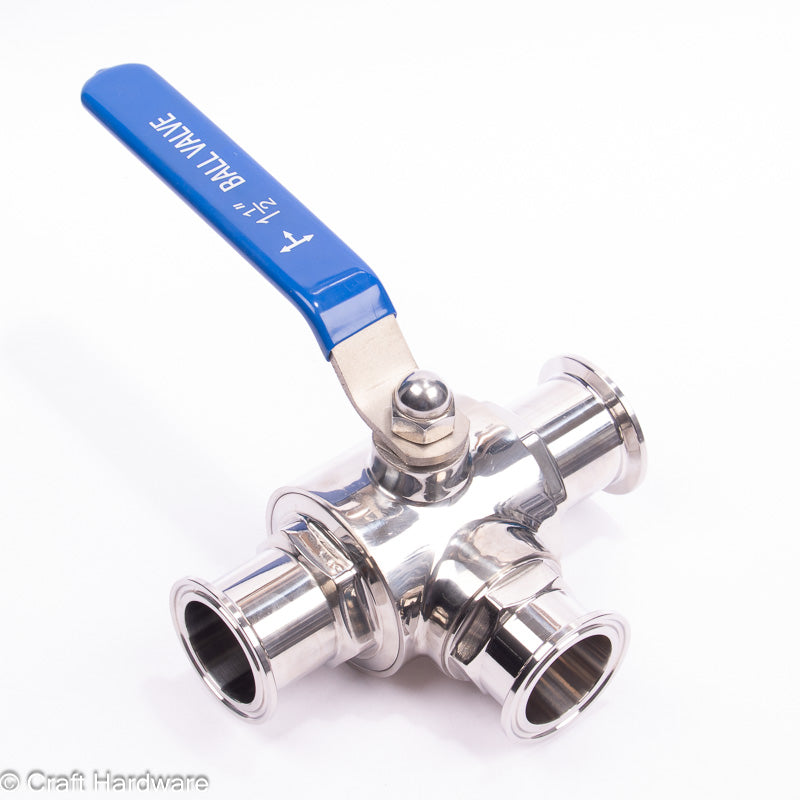

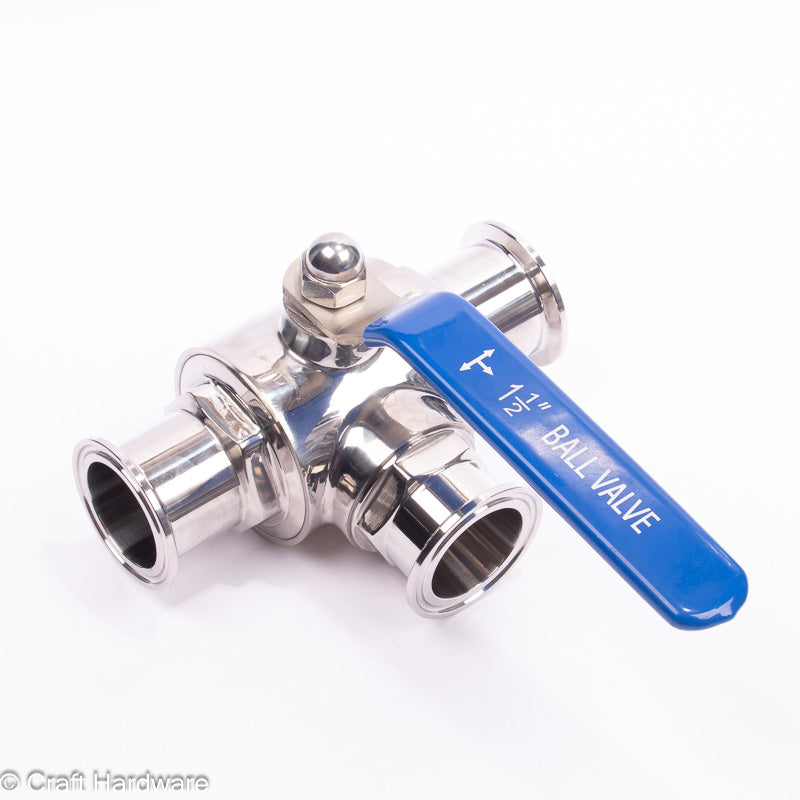

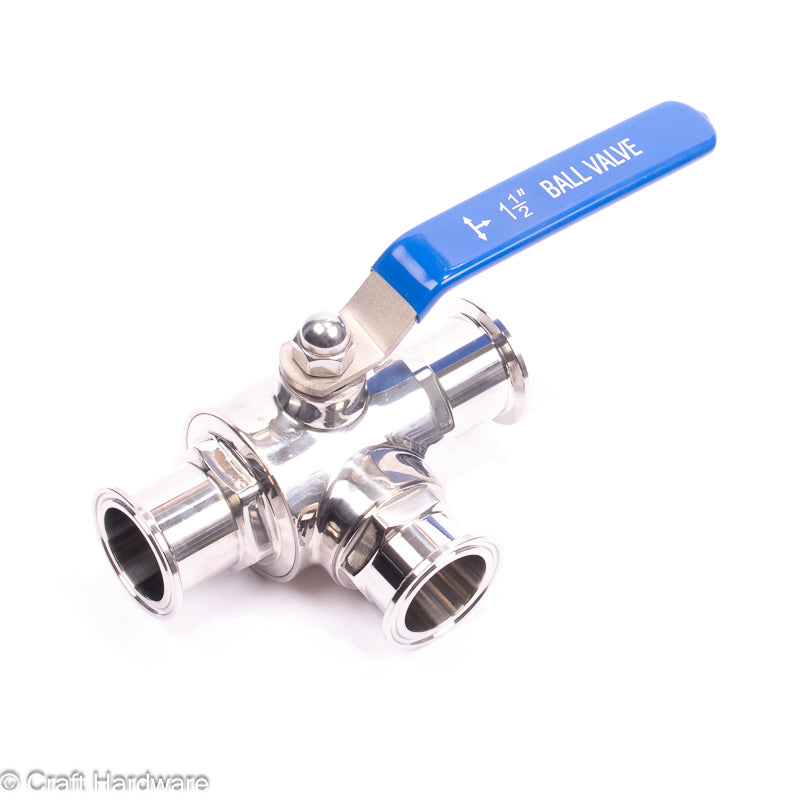

This 3-way ball valve is T-drilled and the ball rotates 360 degrees allowing a number of operating positions. Please make sure the available positions are suitable for your application.

Specifications:

  • Length 153 mm
  • Inner Diameter 34.8 mm (Nominal 1.5")
  • Tri-Clamp Size 50.5 mm = 1.5"
  • Wrench Size: 41 & 45 mm
  • Gaskets: PTFE
The three way valves are sealed and pressure checked at the factory. They are not intended to be disassembled for cleaning as they can be very difficult to properly re-seal. For proper cleaning a manual brush or CIP method should be employed.

Note: This product falls under Article 4(3) of Directive 2014/68/EU (Pressure Equipment Directive) and is manufactured in accordance with good engineering practice (GEP). CE marking is not required.

Manufacturer: Craft Hardware, Kreuzeckstr 9a 86163 Augsburg, https://www.crafthardware.de/
