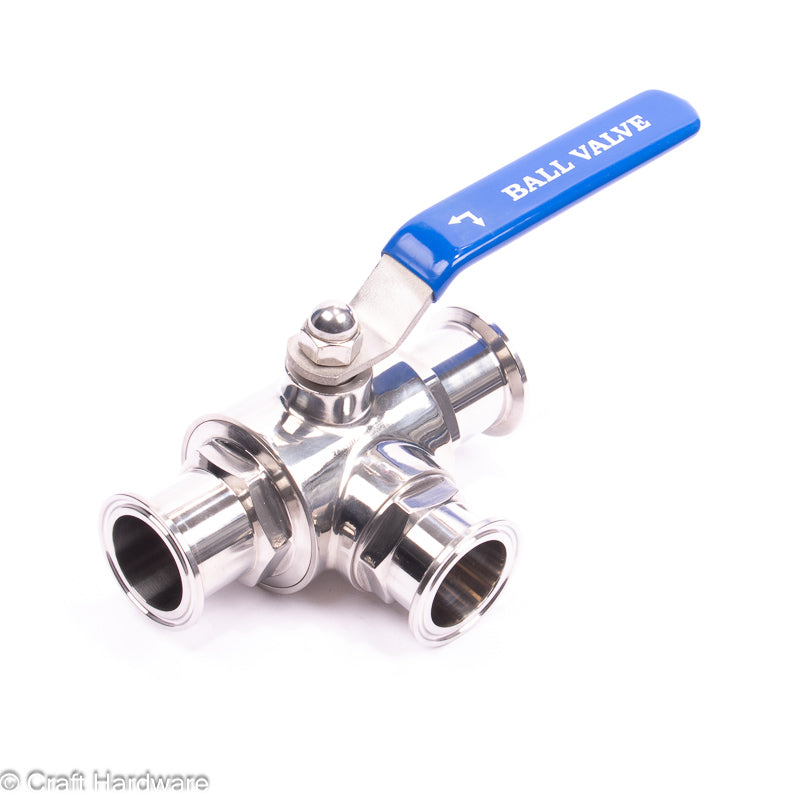

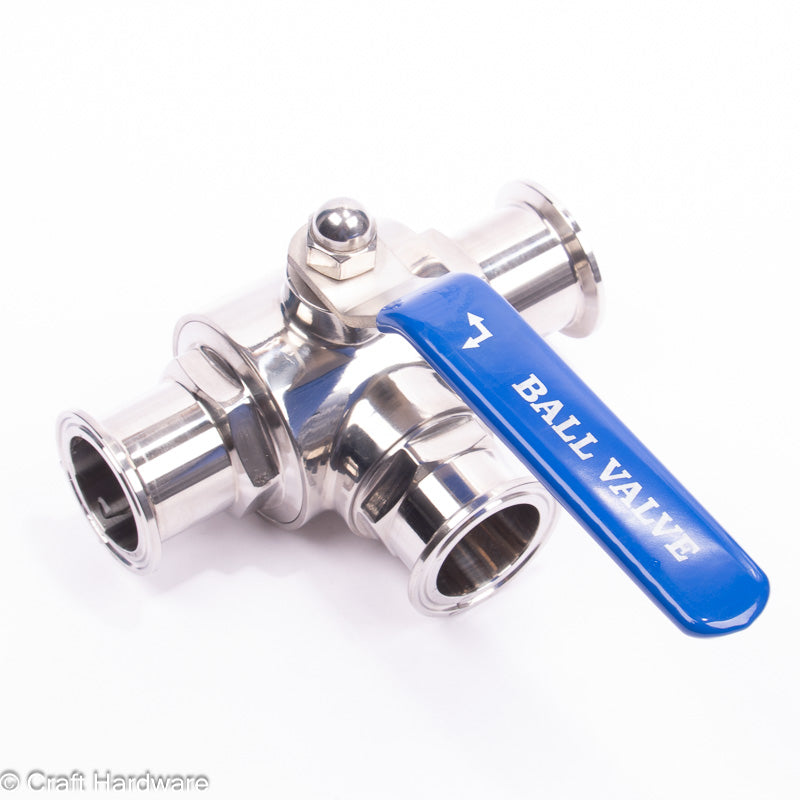

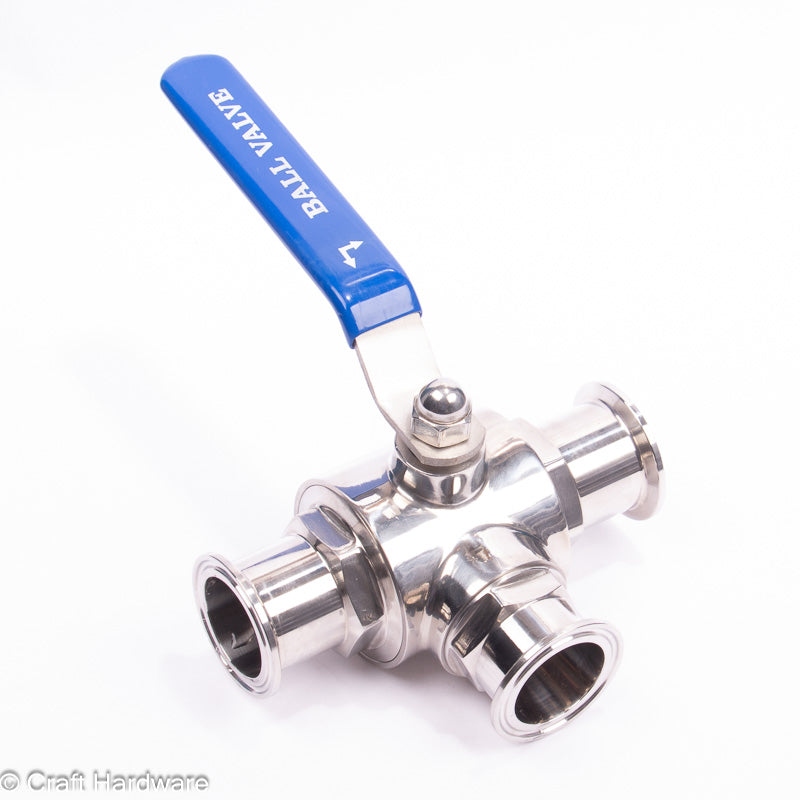

This 3-way ball valve is L-drilled and the ball rotates 360 degrees allowing 3 operating positions. Please make sure the available positions are suitable for your application.
- Length 153 mm
- Inner Diameter 34.8 mm (Nominal 1.5")
- Tri-Clamp Size 50.5 mm = 1.5"
- Wrench Size: 41 & 45 mm
- Gaskets: PTFE
The valve can, and should, be disassembled for cleaning. For initial disassembly you will want to use two wrenches, or place the valve in a vise. Re-tighten it with a wrench when reassembling, to prevent unwanted leaking by accidentally rotating of the attached fittings. I recommend regular cleaning of your ball valves, even when used only on the hot side of your brewery.
