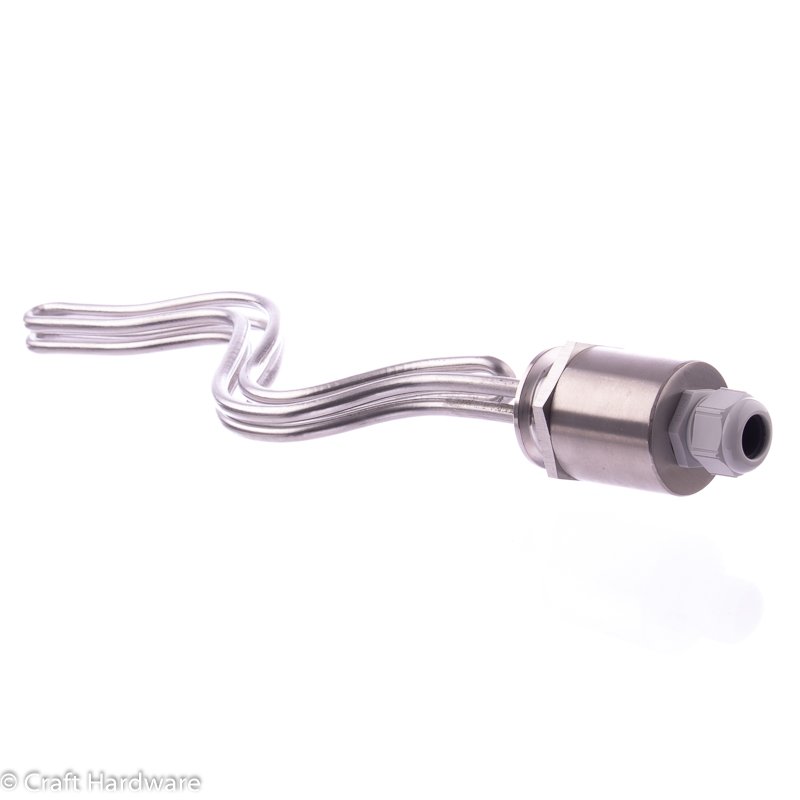

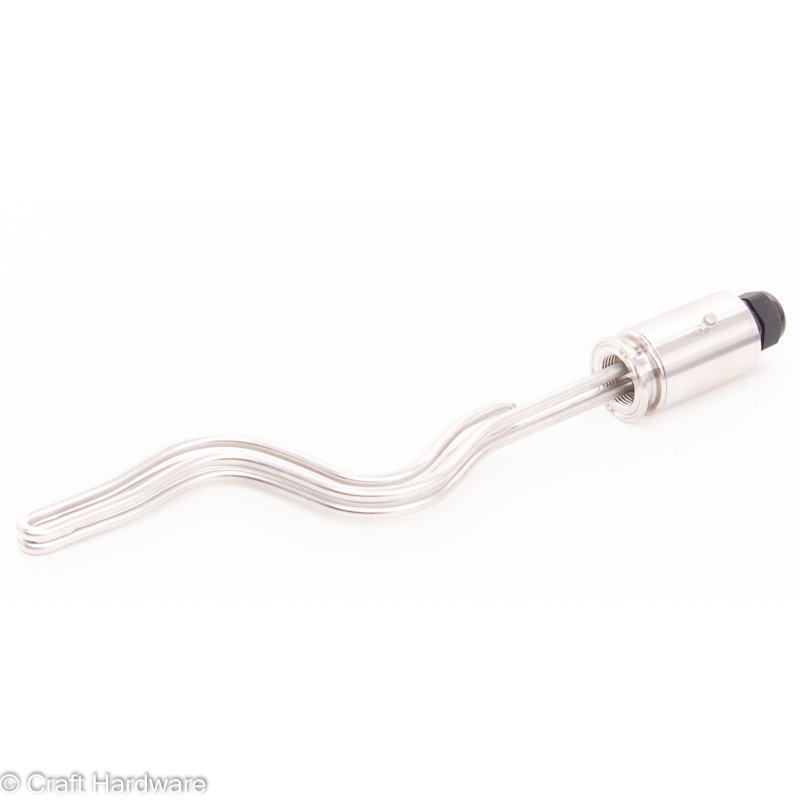

Heating Element 5.2 kw Tri-Clamp Version

Heating Element 5.2 kw Tri-Clamp Version

€54,62 EUR
€54,62 EUR
Sale Sold out
Duties and taxes excluded. Shipping calculated at checkout.

Out of stock

  • Delivery time: 2-5 Workdays

SKU:

EHK01919

View full details

Product Description

Our 5.2 kW ripple heating element will increase your heating ramp rate and maintain a relatively low watt density of 13 w/cm2. If you will be using this to boil your wort, make sure you have a controller capable of reducing the power input. 5kW is borderline too much power for soft rolling boil with a 40L batch.
  • Voltage 230V
  • Current 22A
  • Power 5200W
  • Power Density 13 w/cm2
  • Stainless tube with 8mm diameter
  • 35.5cm long (34.5 cm from face of Tri-Clamp adapter to tip of element)
  • 1" BSP threads

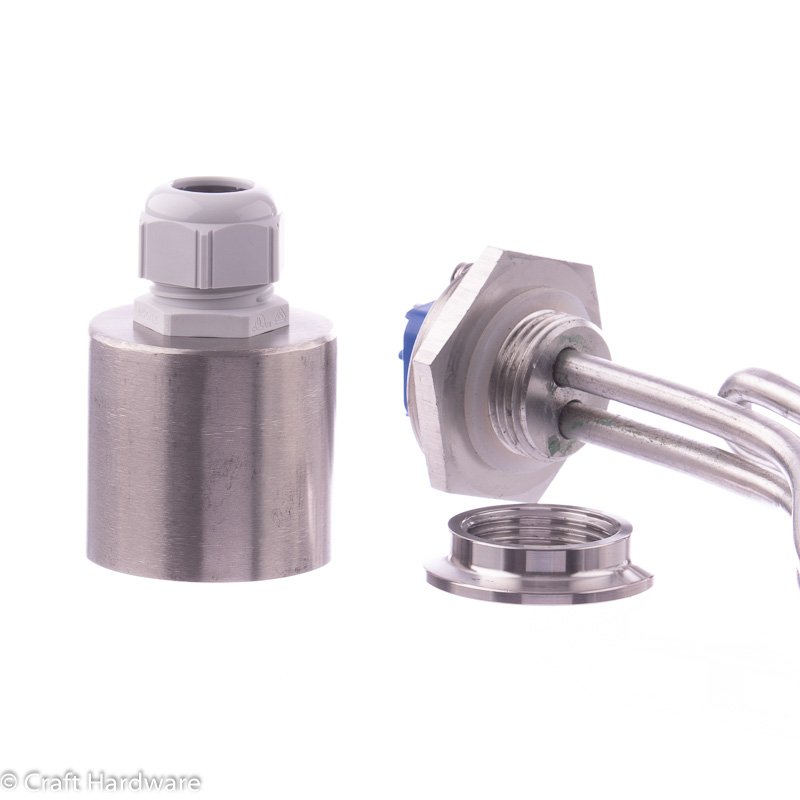

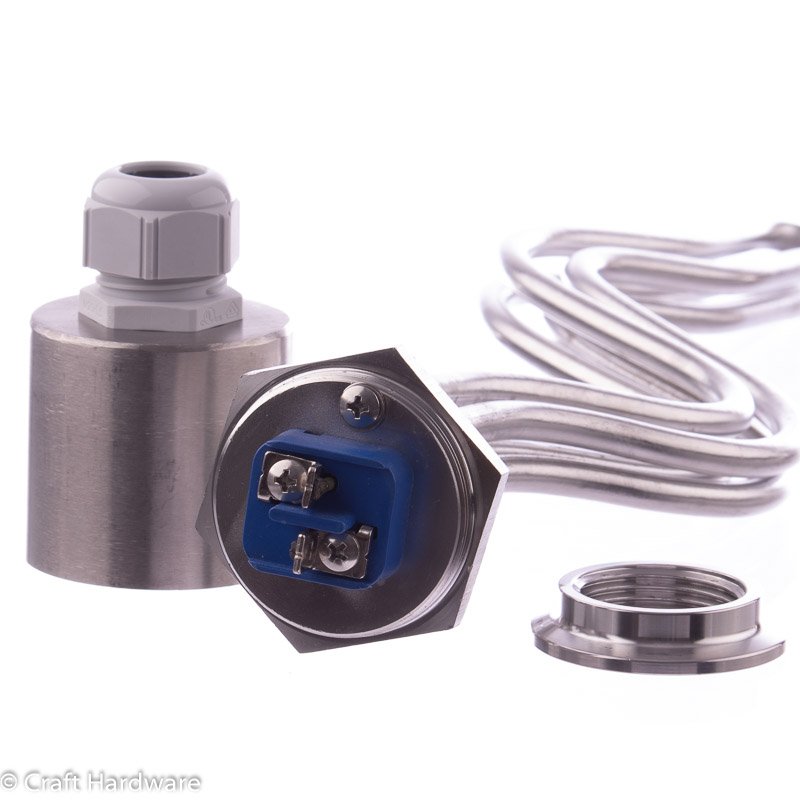

  • 1.5" Tri Clamp BSP adapter included

Sold with an PG21  cable gland that has a clamping range of 13-18 mm.

The element consumes approximately 22 amps and cannot be used with the standard 16 amp household circuit. Check with your local electrician to see if your utility allows high amperage on a single phase because of unbalanced loads!

Manufacturer: Craft Hardware, Kreuzeckstr 9a 86163 Augsburg, https://www.crafthardware.de/

⚠️ Safety Information

  • Risk of electrocution or fire!
  • The wiring of your heating element should be done by a qualified electricain
  • The element cable housing is not waterproof. Take care not to spill water or wort onto your heating element
  • You must ensure that you use a suitable RCD and a circuit breaker designed for the respective load
  • The heating element must always be covered with liquid when switched on.
Safety Information / Sicherheitshinweise (available in all EU languages)
