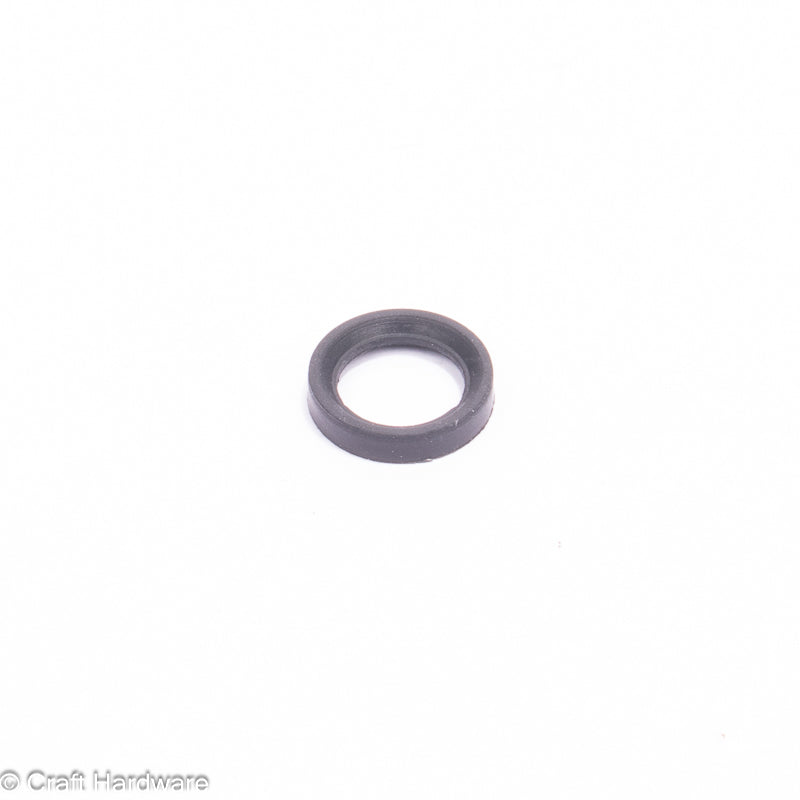

EPDM Gasket Tri-Clamp 3/4"

EPDM Tri-Clamp gaskets provide a hygienic, leak-tight seal between pipes and fittings and are widely used in brewery, food, and process applications.

Technical specifications

• Connection: Tri-Clamp
• Material: EPDM
• Standard (compatibility): DIN 32676 (Series C)
• Flange diameter (OD): 25 mm
• Inner diameter (ID): 16 mm
• Temperature range: −40 °C to +150 °C
• Chemical resistance:
  • Very good resistance to water, hot water, steam, and diluted acids and alkalis
  • Not suitable for oils, fats, fuels, or mineral-oil-based media
• Color: Black

Note: Chemical resistance depends on the medium, concentration, temperature, and duration of exposure.
