BIAB Recirculating Kettle Set - 115L

BIAB Recirculating Kettle Set - 115L

Regular price €1.100,00 EUR
Regular price Sale price €1.100,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Lieferzeit: 10-15 Workdays

Out of stock

Artikelnummer:

SKU:BAM22111

View full details

Collapsible content

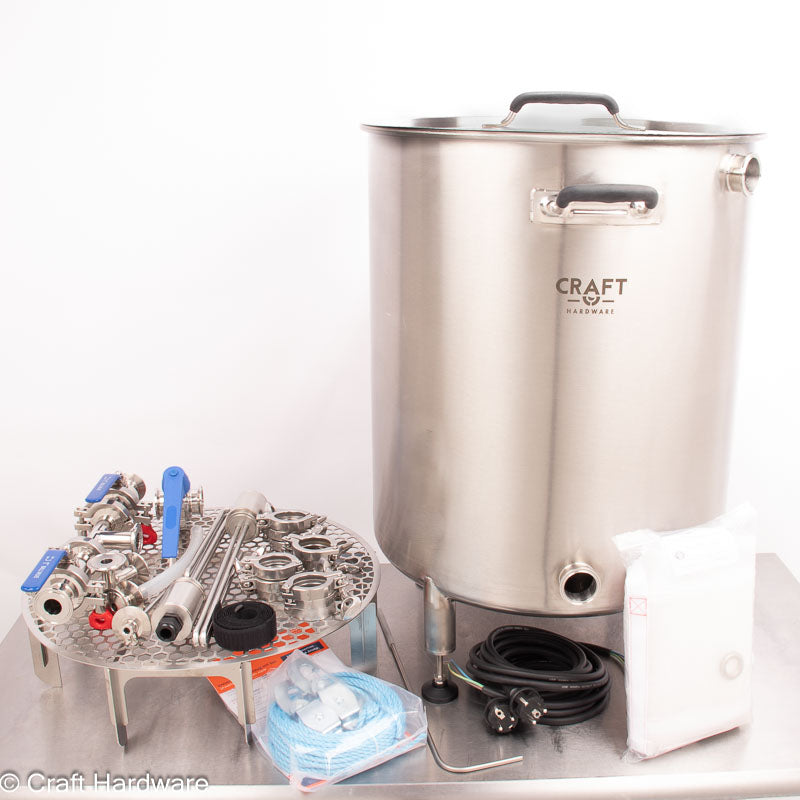

Stückliste: BIAB Recirculating Kettle Set - 115L

QtyImageSKUProduct
1BKM28726Kettle Bottom Drain - 115L
2EHK18907Heating Element 3,2kW Tri Clamp Version
2EHK22146Power Cable 3m H07RN-F 3G1,5
1EMK18693Handle with hook for BIAB
1EMK18694Heavy Duty BIAB Pulley 6:1
1EMK18700BIAB Strap
1EMK26958BIAB Recirculation Brew Bag 83L
1
EMM27805False Bottom 494 mm BIAB
1EMM32541False Bottom Stand for Bottom Drain Kettle 115L / Tall
1EPK23315Silicone Tubing 12 x 20 mm
1
MMK1840
2TAK01726Quick Clean G1" Ball Valve Tri Clamp
1TAK05002Butterfly Valve DN40 Tri Clamp With Trigger Handle
10TDK01720Silicone Gasket Tri Clamp 1.5" x DN40
15TDK01731Tri-Clamp 1.5" Clamp
10TDK17524Silicone Gasket Tri Clamp 1.5" x 1"
5TDK19119Silicone Gasket Tri Clamp 1.5″ x 3/4"
1TFK01721Sparge Tube Adapter Tri-Clamp Straight 13 mm
1TFK01735Tee Tri-Clamp 1.5" x 3/4" Short
1TFK17484Tee Tri-Clamp 1.5" x 1"
1TTM21506Thermowell Set Screw 13,5 cm Tri Clamp

Produktbeschreibung

A single kettle Tri-Clamp based recirculating BIAB kettle set that is simple, elegant and time saving. This set extends the BIAB Kettle Set with the added ability to recirculate during mashing and after boiling.

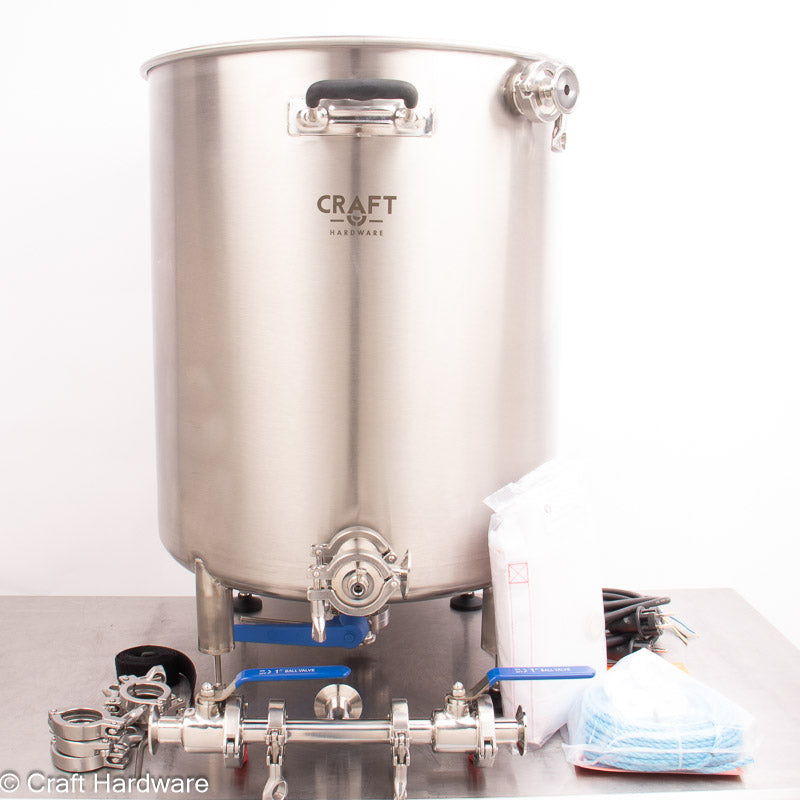

New! The kit now includes parts to implement the highly recommended "split recirculation" for BIAB, as well as an eyelet installed in the brew bag to allow recirculation through the top Tri-Clamp opening. We've also included the additional clamps and gaskets you'll need when installing a pump. To complete the set, you will need a pump and 3 hose sections with 2 hose hose barbs each.

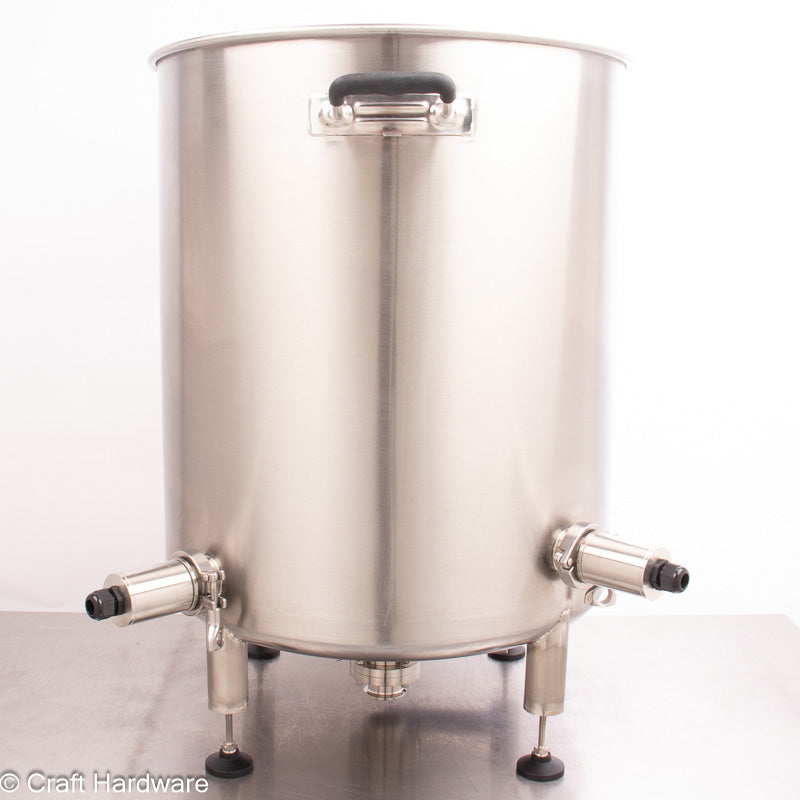

The set includes a combination short tee and long thermowell for the front lower Tri-Clamp port as a kettle inlet for recirculation under the false bottom.

Upon request, we can supply the set with our butterfly valve with ball handle instead of lever handle, and with EPDM instead of silicone gaskets.

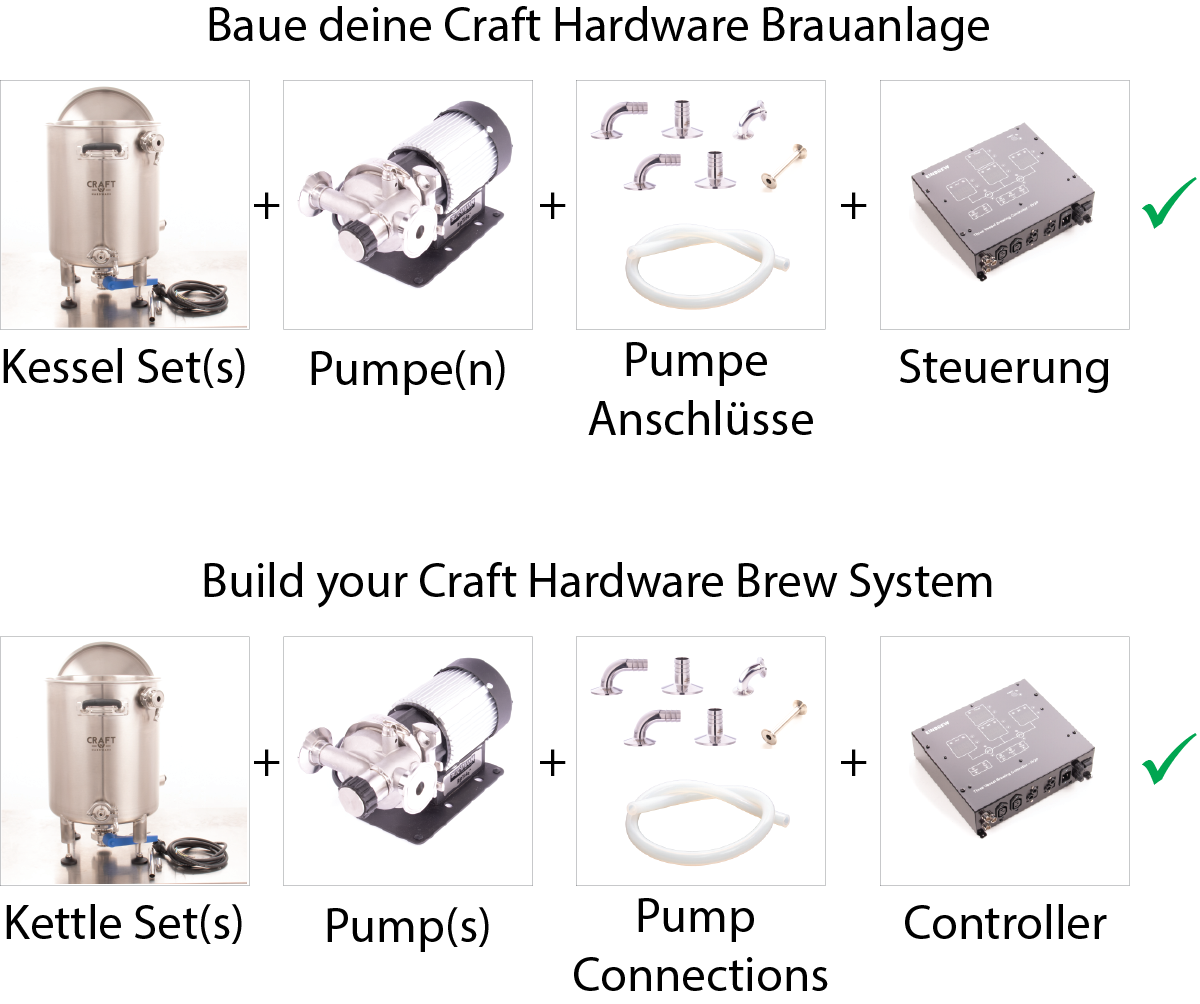

Due to the variety of mounting and connection options, the set is sold without some necessary components. The choice of the brewing stand will affect how you mount the pump and connect it to the system. In the store you will find everything you need to completely assemble your dream brewing system. To build a BIAB circulating system, you should usually add the following parts:

  • A pump, possibly with mounting accessories. The Blichmann Riptide pump has an integrated outlet valve for flow control. For the Mp-15 pump, you will need to add a valve on the outlet side of the pump to restrict flow.
    • Hose barbs and tubing or stainless steel fittings. For 85L and 115L I recommend using 1" hose barbs and fittings with 19x30 mm silicone tubing.
    • Kettle extension legs or an open brew stand.
    • A controller for temperature control.

    See the "frequently bought together" products below for some recommended additions to the set.

    System Design

    This set expands on the BIAB Standard Set with the ability to recirculate during mashing and after boiling. For recirculation you need access to the lower Tri-Clamp port. If you are working with a standard tabletop, you can easily do this with the 14 cm leg extensions (sold separately). Please note that 80-90 cm high gastronomy tables may be too high to comfortably reach the top of the kettle. Alternatively, you can bolt the kettle directly to the floor with our 45 or 65 cm leg extensions and foot plates. You can attach the pump to the legs of the kettle with a pump bracket. You can also build your own brew stand from aluminum extrusions or choose a high-quality brew stand from Craft Hardware in the store.

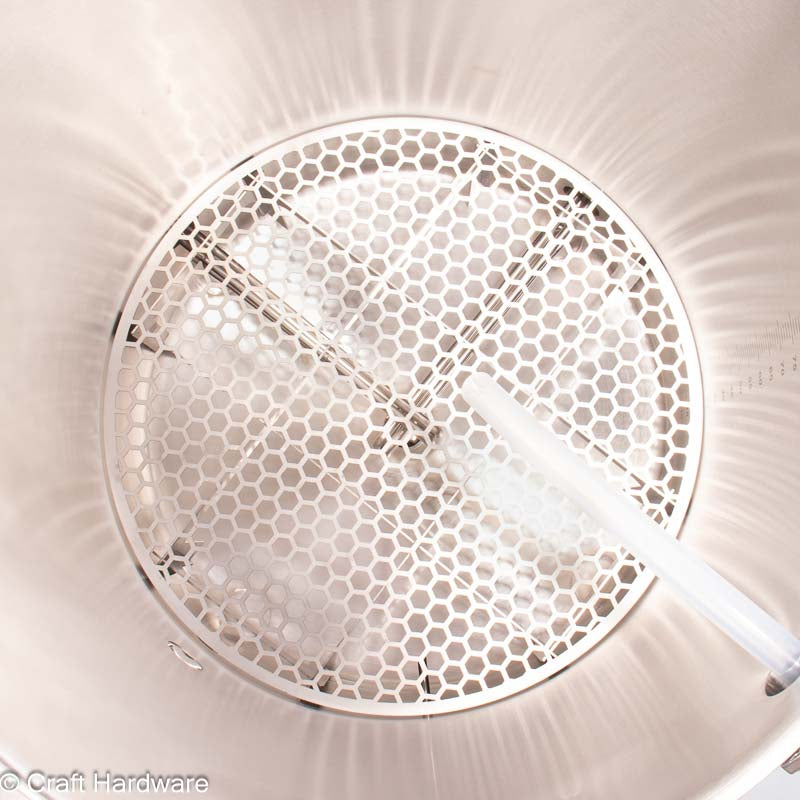

    The high-flow false bottom provides better recirculation and protects the BIAB bag from the heating element. By circulating and with a suitable controller, you can maintain the temperature of the mash and program your mash schedule. When you're done mashing, simply lift out the mash bag with the included pulley.

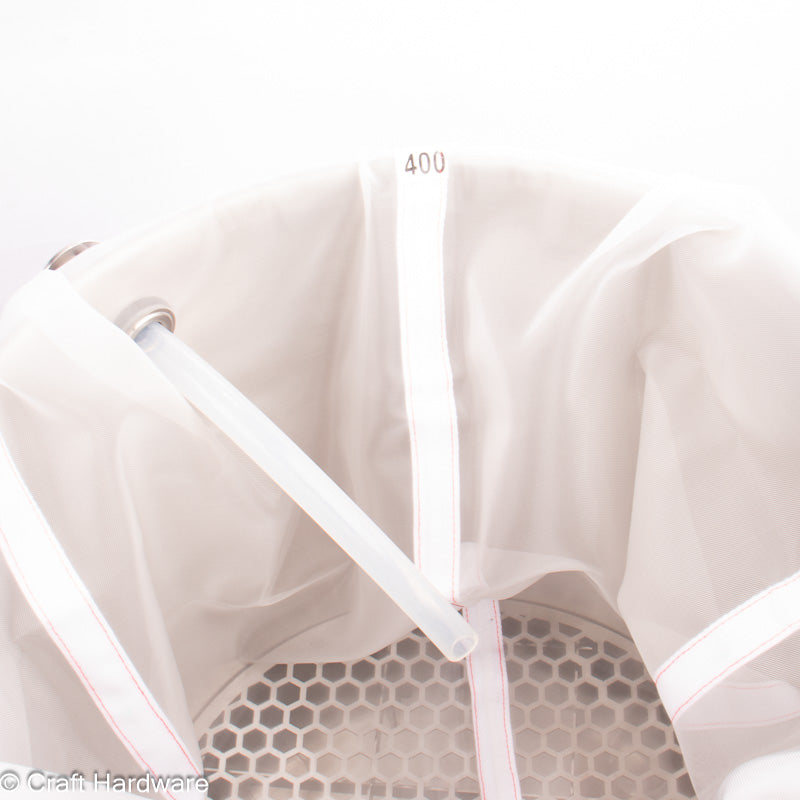

    While boiling, you can add hops directly to the kettle - no more Hop Spider needed! Thanks to the bottom drain in the kettle, you can optimize your knockout and easily filter out the hops: after boiling, place the included 400 micron mash bag back in the kettle and use it as a large-area kettle filter during recirculation to filter out hops and trub. This way, your heat resistant brew bag filters out all the hops and you can drain your kettle completely. This kettle-filtering process works great and is super simple. Just note that the cold trub can clog the bag if the wort has reached a temperature of less than 35-40°C, and you should watch it closely below that temperature to avoid problems.

    With the optional EINBREW 1V1P controller, you can set up to 9 mash levels and let the controller automate your recipe. By recirculating the wort during mashing, you can achieve stable mash temperatures. Note: The 1V1P controller is not compatible with a 3 kettle system. So if you are considering an upgrade at a later date, you should purchase the 3V2P now. If you are using the 3V2P with a single kettle system, you will need to unplug the heating element and temperature sensor and bring them to the brew kettle outlets on the 3V2P when you start boiling.

    Batch Size

    System efficiency is similar to a standard BIAB and lower than a 2 or 3 kettle brew system. For German brewers, the efficiency of the system, measured as "brewhouse yield" or SHA, is about 52-58%. Grain capacity is limited by your ability to lift the bag out. The supplied pulley should not be used for malt weights greater than 8 KG!

      BIAB Kettle Size Minimum Batch Size *
      Max. Batch Size without Sparge  ** Max. Batch Size with Sparge ** Boil Volume ***
      40L
      13 L
      26 L
      31 L 16 L-34 L
      60L 17 L 39 L 49 L 20.5 L-53 L
      85L 23 L 57 L 72 L 27 L - 76 L
      115L 28 L 77 L 99 L 32.5 L - 104 L

      * Volume including hot break. The heating element is located about 6 cm below the wort level at the end of the boiling process. For very small brews, you should reduce the power of the heating element. This requires a compatible brew controller or voltage regulator.

      ** 60 minute boil time, 13P original gravity, volume includes hot break. For stronger beers, the maximum batch size will be lower. Remember, you'll further limit batch size if you use the condenser in the kettle wall.

      *** includes a 6 cm safety buffer between the wort level and the edge of the kettle. At this volume, you must be very careful to prevent boiling over. Antifoam agents may be required.

      Tips

      The heating element in this set include a 3m long connection cable with SCHUKO plug, but is not pre-wired to the heating element. Please consult a professional electrician. You must make absolutely sure that you use a suitable ground fault circuit interrupter and a circuit breaker designed for the particular load!

      In addition, you will probably want to purchase a hydrometer, wort chiller, and stirring spoon. These are available elsewhere.
