Adapter Tri-Clamp 1.5" x DIN 11851 IG DN 40

Adapter Tri-Clamp 1.5" x DIN 11851 IG DN 40

€29,00 EUR
€29,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

  • Delivery time: 2-5 Werktage

SKU:

TFK01772

View full details

Product Description

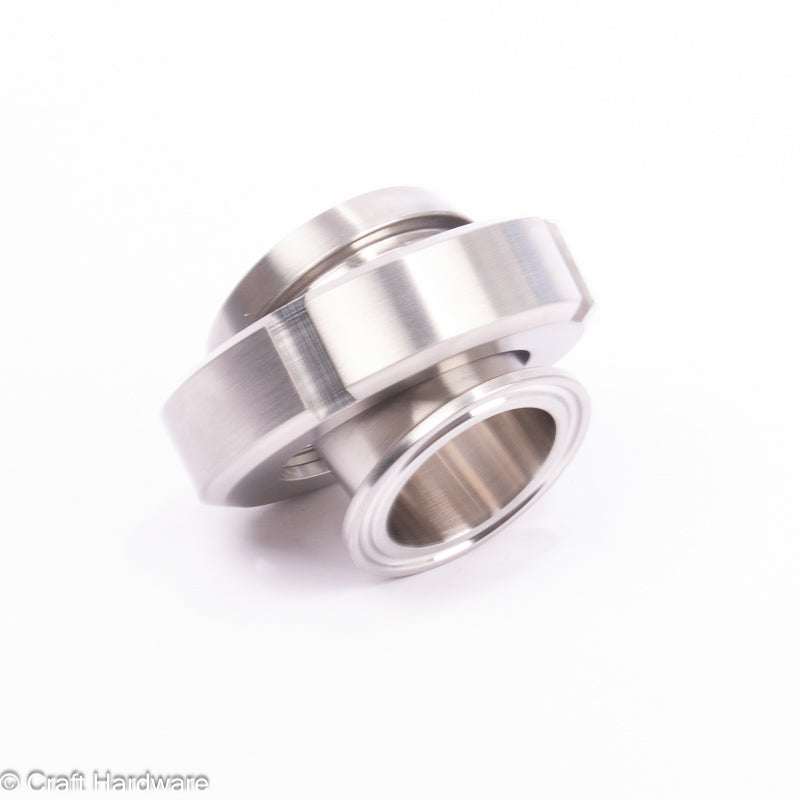

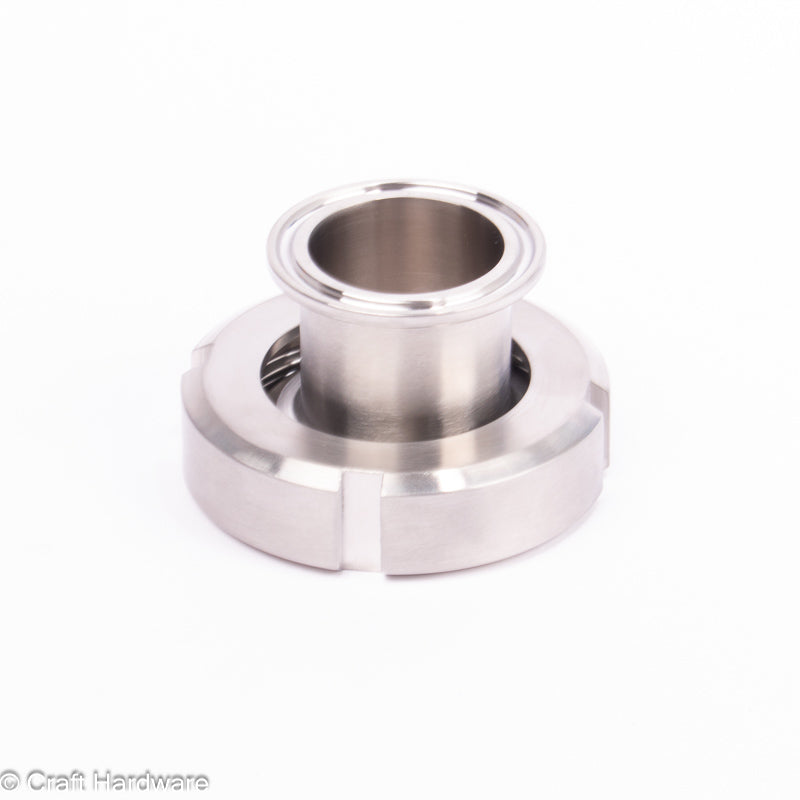

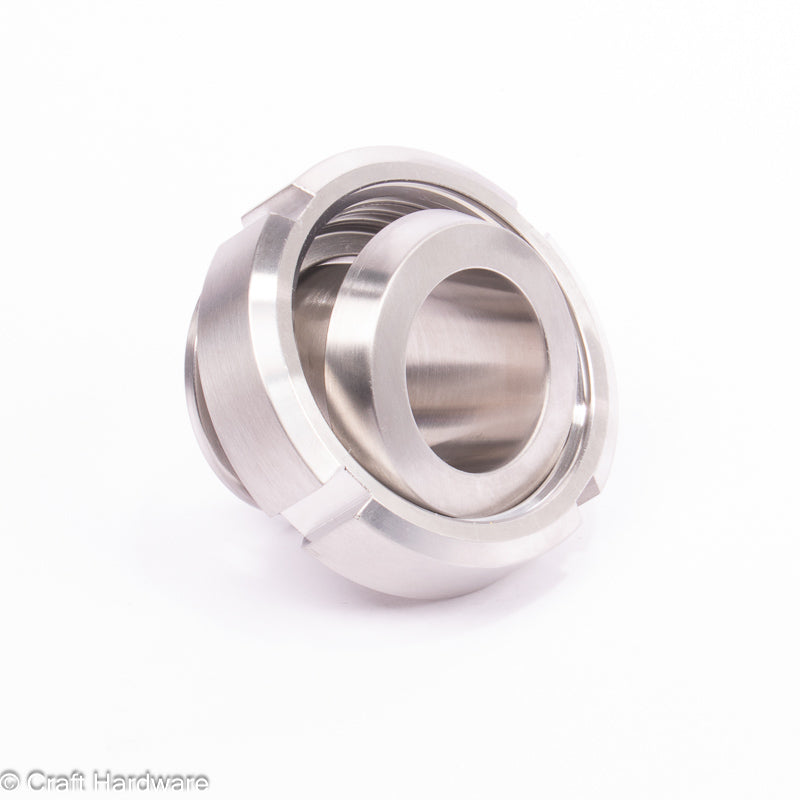

Tri-Clamp to DIN 11851 male threaded adapter. Includes a DIN nut which is captured on the fitting (cannot be removed). This is an adapter with a straight bore. The inside diameter is identical on both sides of the fitting. The inner diameter may differ slightly from the DIN standards, but these will work with all standard DIN gaskets.

  • Female thread DIN 11851 RD 65 x 1/6"
  • Nut outer diameter 78 mm
  • Cone Outer Diameter 55.0 mm
  • Tri-Clamp size 50.5 mm = 1.5″
  • Inner diameter 34.8 mm
  • Length 47.5 mm
  • Material: Stainless Steel 1.4301

Note: This product falls under Article 4(3) of Directive 2014/68/EU (Pressure Equipment Directive) and is manufactured in accordance with good engineering practice (GEP). CE marking is not required.

Manufacturer: Craft Hardware, Kreuzeckstr 9a 86163 Augsburg, https://www.crafthardware.de/
