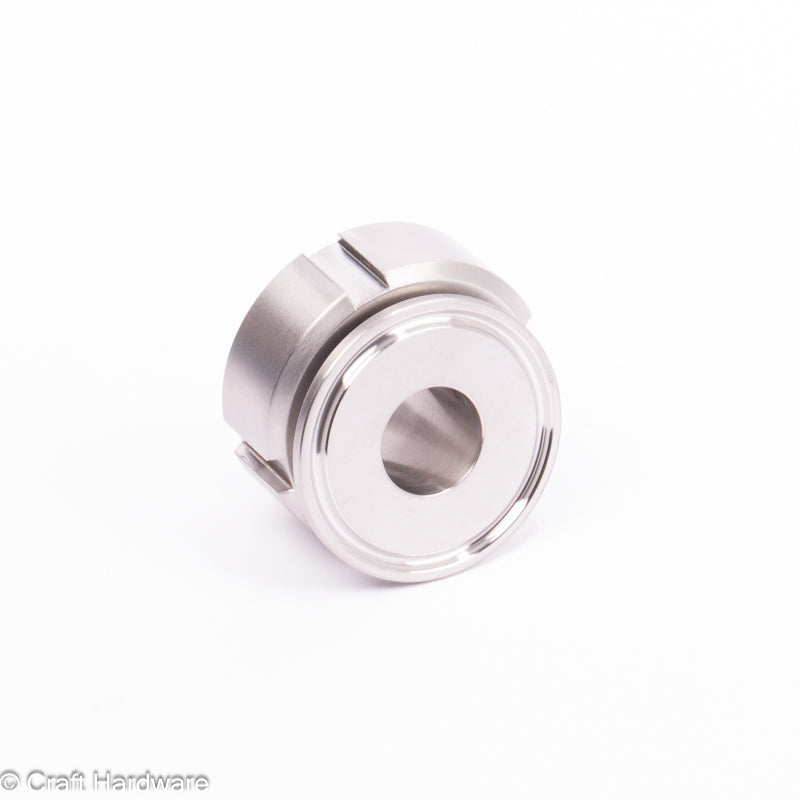

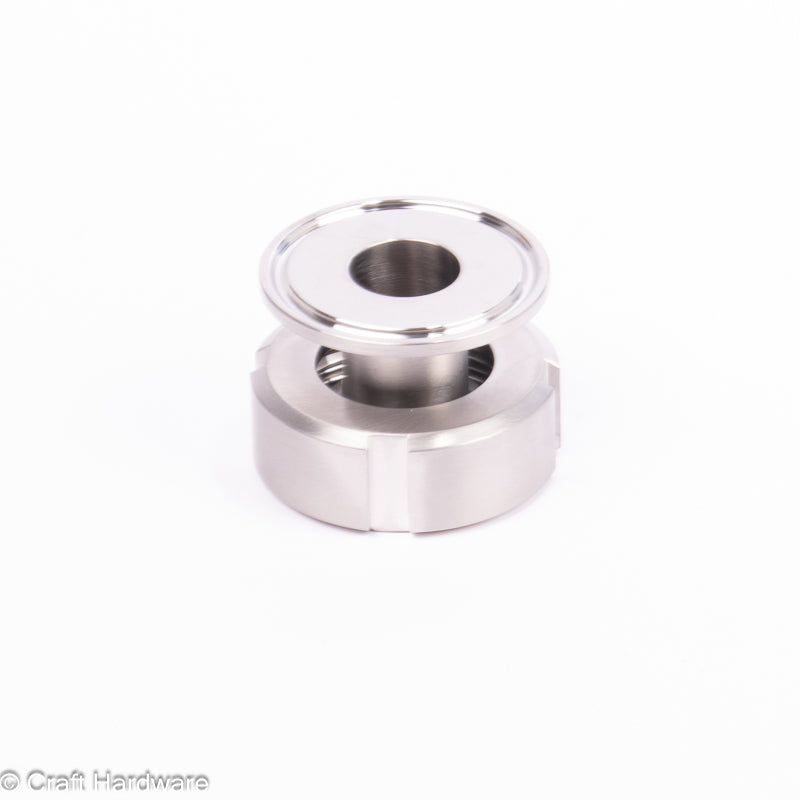

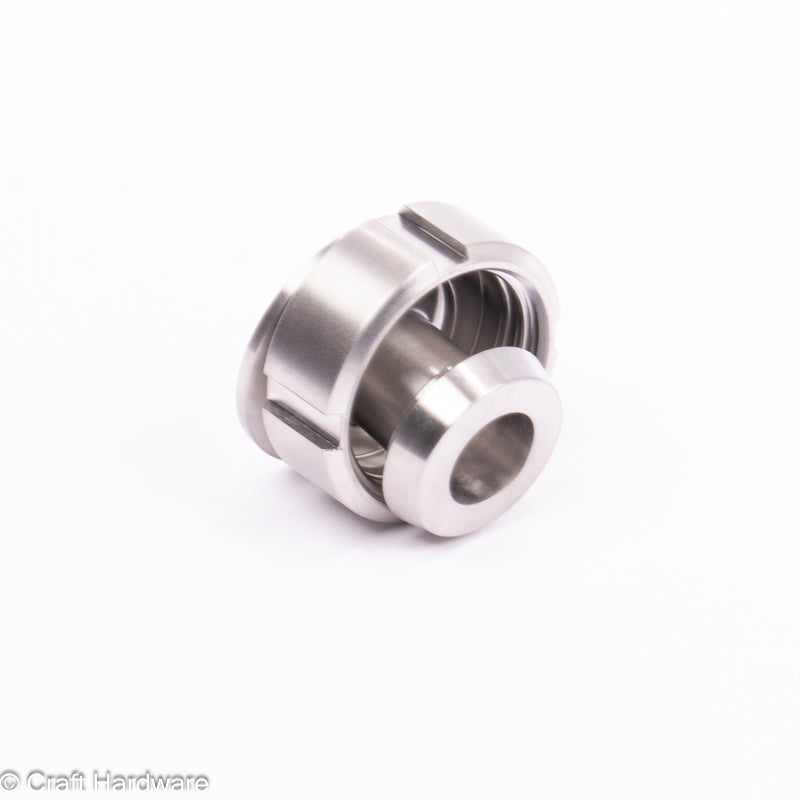

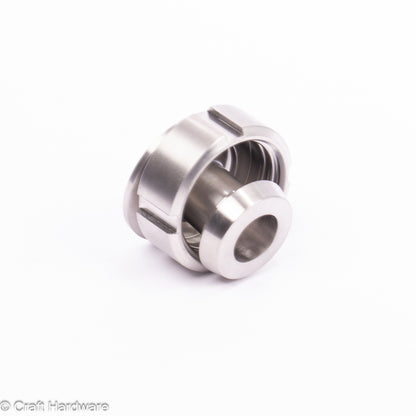

Adapter Tri-Clamp 1.5" x DIN 11851 IG DN 20

Adapter Tri-Clamp 1.5" x DIN 11851 IG DN 20

€25,00 EUR
€25,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

  • Delivery time: 2-5 Werktage

SKU:

TFK01769

View full details

Product Description

Tri-Clamp to DIN 11851 male threaded adapter. Includes a DIN nut which is captured on the fitting (cannot be removed). This is an adapter with a straight bore. The inside diameter is identical on both sides of the fitting. The inner diameter may differ slightly from the DIN standards, but these will work with all standard DIN gaskets.

  • Female thread DIN 11851 RD 44 x 1/6"
  • Nut outer diameter 54 mm
  • Cone Outer Diameter 36.0 mm
  • Tri-Clamp size 50.5 mm = 1.5″
  • Inner diameter 19 mm
  • Length 39.5 mm
  • Material: Stainless Steel 1.4301

Note: This product falls under Article 4(3) of Directive 2014/68/EU (Pressure Equipment Directive) and is manufactured in accordance with good engineering practice (GEP). CE marking is not required.

Manufacturer: Craft Hardware, Kreuzeckstr 9a 86163 Augsburg, https://www.crafthardware.de/
