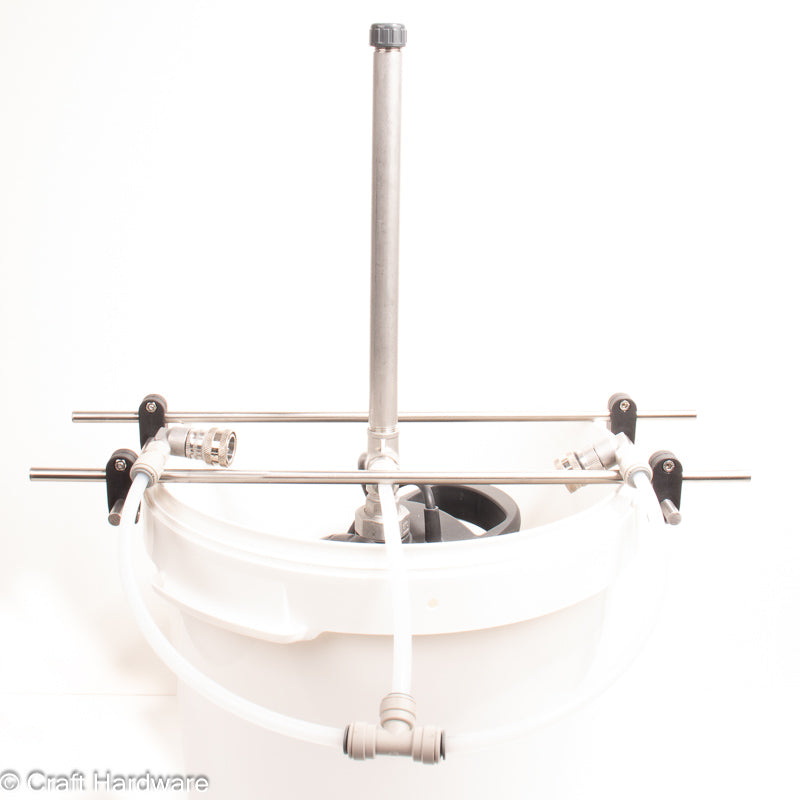

DIY Craft Hardware Keg Washer (Parts List)
For a DIY build of the no-longer-available Craft Hardware Keg Washer, I provide for you here the complete parts list from our most recent BOM. Some parts are generic and can be found from various sources; for those items I have provided a recommended / example product link.
The PVC plastic cap is not included in the parts list; if you need to use the washer without the spray ball just install any 1/2" BSP end cap or stopper.
The optional pump adapter is at the end of the list - useful when connecting to a high pressure garden submersible pump with 1" male threads.
| QTY | Manufacturer | P/N | Product | Example / Link |
| 1 | John Guest | PI0212S | John Guest 9,5 mm Tee | |
| 2 | John Guest | PI4512F4S | John Guest 9,5 mm NC Adapter | Link |
| 1 | John Guest | PE-12-EI-0500F-N | John Guest 9,5 mm x 6,3 mm Polyethylene Tubing | Link |
| 1 | John Guest | NCPI011212S | John Guest Adapter 9,50 mm x 1/4" | Link |
| 4 | Otto Ganter GmbH & Co. KG Normteilefabrik | GN 174-B10-B10 | Tubing Connector / Cross Plastic 10mm | Link |
| 2 | various | 240.0110 | Stainless Steel Rod 10mm 25 cm | |
| 2 | various | 240.0110 | Stainless Steel Rod 10mm 50 cm | Link |
| 1 | various | n/a | Stainless Steel coupler, Gas (NC) | Link |
| 1 | various | n/a | Stainless Steel coupler, Getränke (NC) | Link |
| 1 | various | n/a | SS Tee 1/2" Female | Link |
| 1 | various | n/a | SS Reducer BSP 1/2" x 1/4" | Link |
| 1 | various | n/a | SS Nipple BSP 30 cm 1/2" BSP | Link |
| 1 | Craft Hardware | TFK22666 | Rotating CIP Spray Ball 1/2" BSP Female | Link |
| 1 | Swiss-Fittings | 21100005 | OPTIONAL: Pump Union Set Female / Male | Link |
