Whirlpool Arm Extension Tube

Whirlpool Arm Extension Tube

Regular price €10,00 EUR
Regular price Sale price €10,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

Delivery Time: 2-5 Workdays

Length

SKU:

No reviews
View full details

Collapsible content

Product Description

Do you need a different height for your previously purchased two piece whirlpool arm? These are the individual lower tubes, sold separately. The price shown is for a single length tube, you can choose the tube length from the dropdown above.

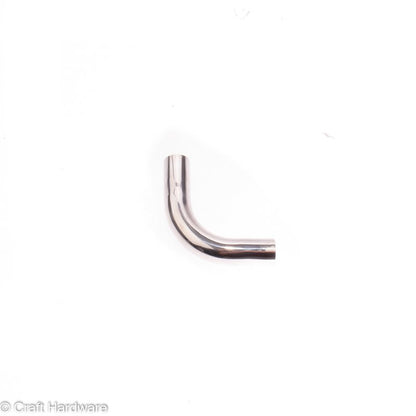

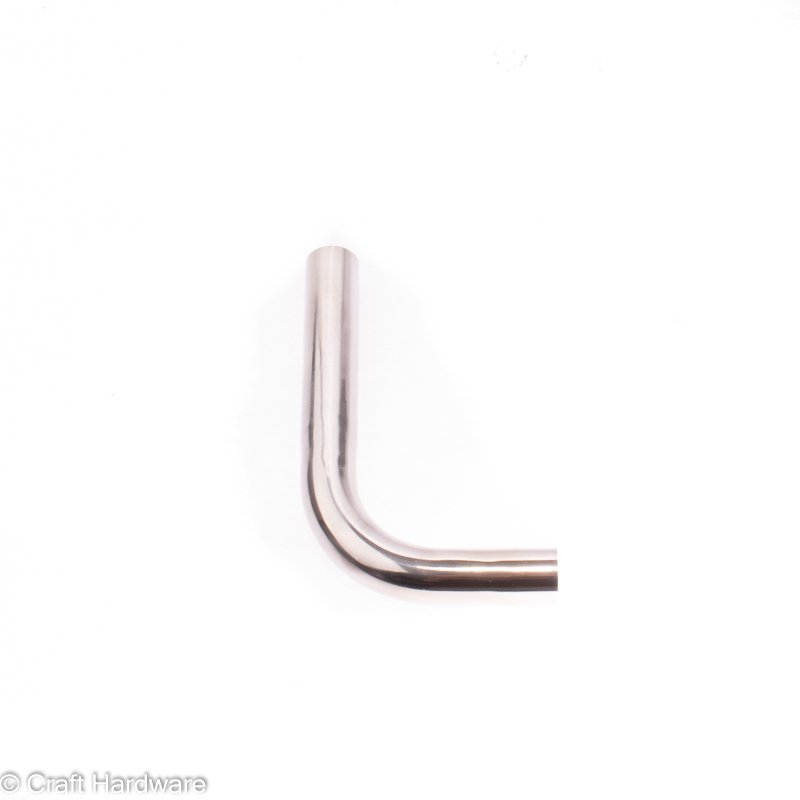

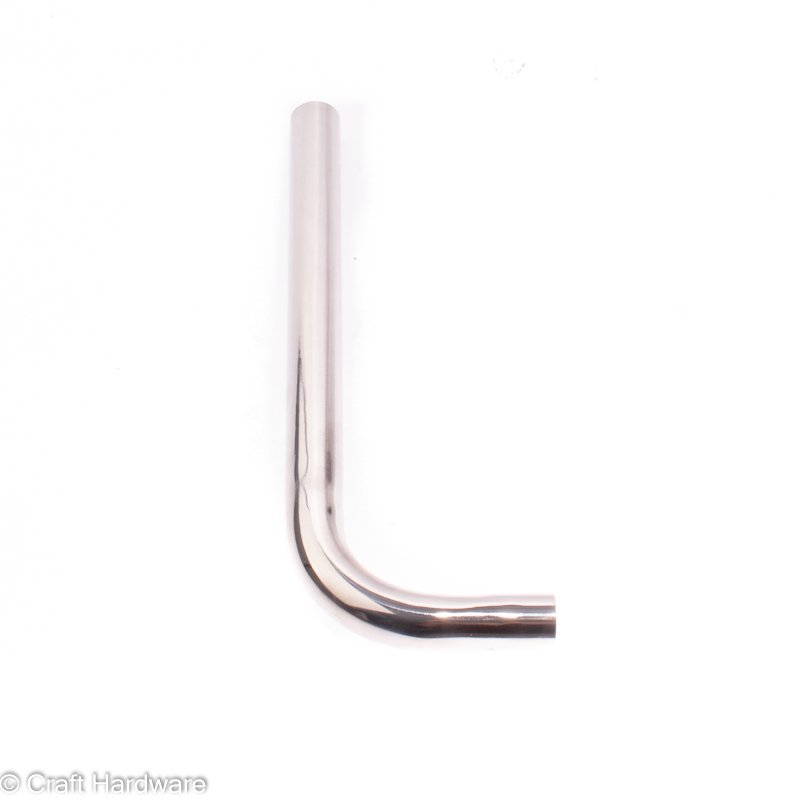

The bottom tube comes in 3 lengths: 6 cm, 12.5 cm, and 22 cm. All 3 tubes have an inside diameter of 15mm and outside diameter of 18mm.

The exit height of the whirlpool tube will depend on your kettle height and whether the whirlpool arm is installed in the kettle top port or accessory clamp. To assist you in choosing the right length, you can refer to the following table which applies to the range of Craft Hardware kettles and both mounting options. The table shows the liter mark at which the center of the whirlpool arm exit will be located.

38 L Kettle
Whirlpool Arm Height Mounted in Kettle Mounted in Clamp
28.5 cm (6 cm tube) 8L 16L
35 cm (12.5 cm tube) 2L 10L
44.5 cm (22 cm tube) X X


57 L Kettle
Whirlpool Arm Height Mounted in Kettle Mounted in Clamp
28.5 cm (6 cm tube) 18L 28L
35 cm (12.5 cm tube) 10L 20L
44.5 cm (22 cm tube) X 8L


83 L Kettle
Whirlpool Arm Height Mounted in Kettle Mounted in Clamp
28.5 cm (6 cm tube) 33L 45L
35 cm (12.5 cm tube) 22L 35L
44.5 cm (22 cm tube) 7L 20L
